380V 0.4~1.2mm Thickness 15m/min Shutter Door Roll Forming Machine CE Standard
Process Flow of Shutter door roll forming machine :
Uncoiling→ (Perforation machine )→Feeding material into machine→Roll forming→Measuring length→ (punching part)→Auto cutting→Products receiving
N.B: you can choose the Perforation machine and punching part as your demand.
As a manufacturers,we can make the High Quality Roller Shutter Slat Roll Forming Machine Price by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of shutter door machine,such as shutter door machine with perforation and holes,Australian-style shutter door and shutter door slat. And now, we start the new business about shutter door machine.Here is some profile drawings for you reference.
Parameters of Shutter door roll forming machine
Raw material
Type: colored steel plate, galvanized plate, or aluminium plate
Thickness: 0.5---1.5 mm (As customer`s need)
Material hardness: 550 Mpa---350 Mpa
Material width: 117mm-310mm (According to customer`s profile)
Decoiler
Max width: 300mm (According to customer`s profile)
Inner diameter: 450-650mm (According to customer`s profile)
Max Loading capacity: 5 T
Perforation machine
Power: 4KW (According to the thickness)
The distribution,area and size of the holes: As customer`s need (The basic information for quote the Perforation machine)
Thickness: 0.3---1.5 mm (As customer`s need)

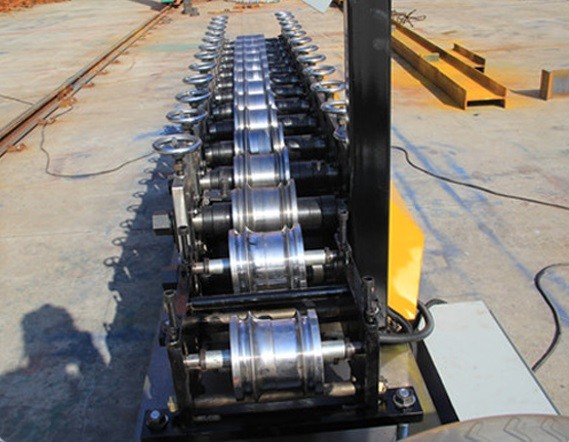

Main roll machine of Shutter door roll forming machine
Working efficiency: 0-30m/min
Forming by rolling: Roll 12 rows (Final rollers depend on the design)
Roller material: Gcr12MoV quenched
Shaft material: 45#steel processing
Diameter of shaft: 50mm (Final rollers depend on the design)
Main part power: 5.5kw (Depend on the thickness of material and size of machine)
Hydraulic motor power: 3kw (Depend on the thickness)
Scissor material: Gcr12MoV quenched
Roller material: Gcr15MoV
Voltage: 380V, 50HZ,3 phase (As customer`s need)
Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)
FAQ
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts to replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
