Single Chain Drive 0.7 - 1.2mm Thick Cold Roll Former Shutter Door Bottom

Name: Single Chain Drive 07 12mm Thick Cold Roll Former Shutter Door Bottom
Brand: Sussman
Price: 1 USD

Buy cheap Single Chain Drive 0.7 - 1.2mm Thick Cold Roll Former Shutter Door Bottom product

Brand Name : Sussman

Model Number : SS-MSDB

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 55-65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.7-1.2mm

Forming Speed : 12-15 m/min

Main Motor Power : 7.5Kw

Forming Stations : 18 stations

Contact Now

Single Chain Drive 0.7 - 1.2mm Thick Shutter Door Roll Forming Machine Shutter Door Bottom

Shutter Door Bottom Technical Parameter

1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 18 stations upper and 16 stations down
8. Roller Material: Cr40 steel precision-machined, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

12. Water cooling system

Shutter Door Bottom Main Components

S.N	Equipment name	Quantity
1.	3T passive un-coiler	1 set
2.	Feeding and leveling device	1 set
3.	Main roll forming machine	1 set
4.	Hydraulic cutting	1 set
5.	Control system (including control box)	1 set
6.	Out tables	2 sets
7.	Hydraulic Station	1 set

Advantage for Shutter Door Bottom

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Shutter Door Bottom

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Single Chain Drive 0.7 - 1.2mm Thick Cold Roll Former Shutter Door Bottom

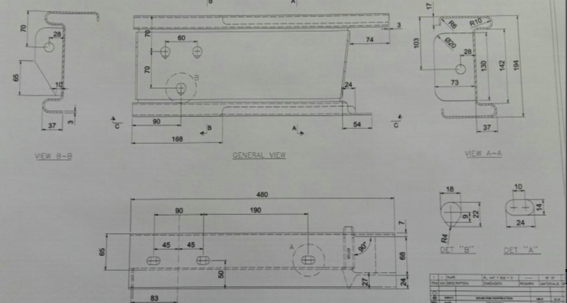

Profile and drawing

Single Chain Drive 0.7 - 1.2mm Thick Cold Roll Former Shutter Door Bottom

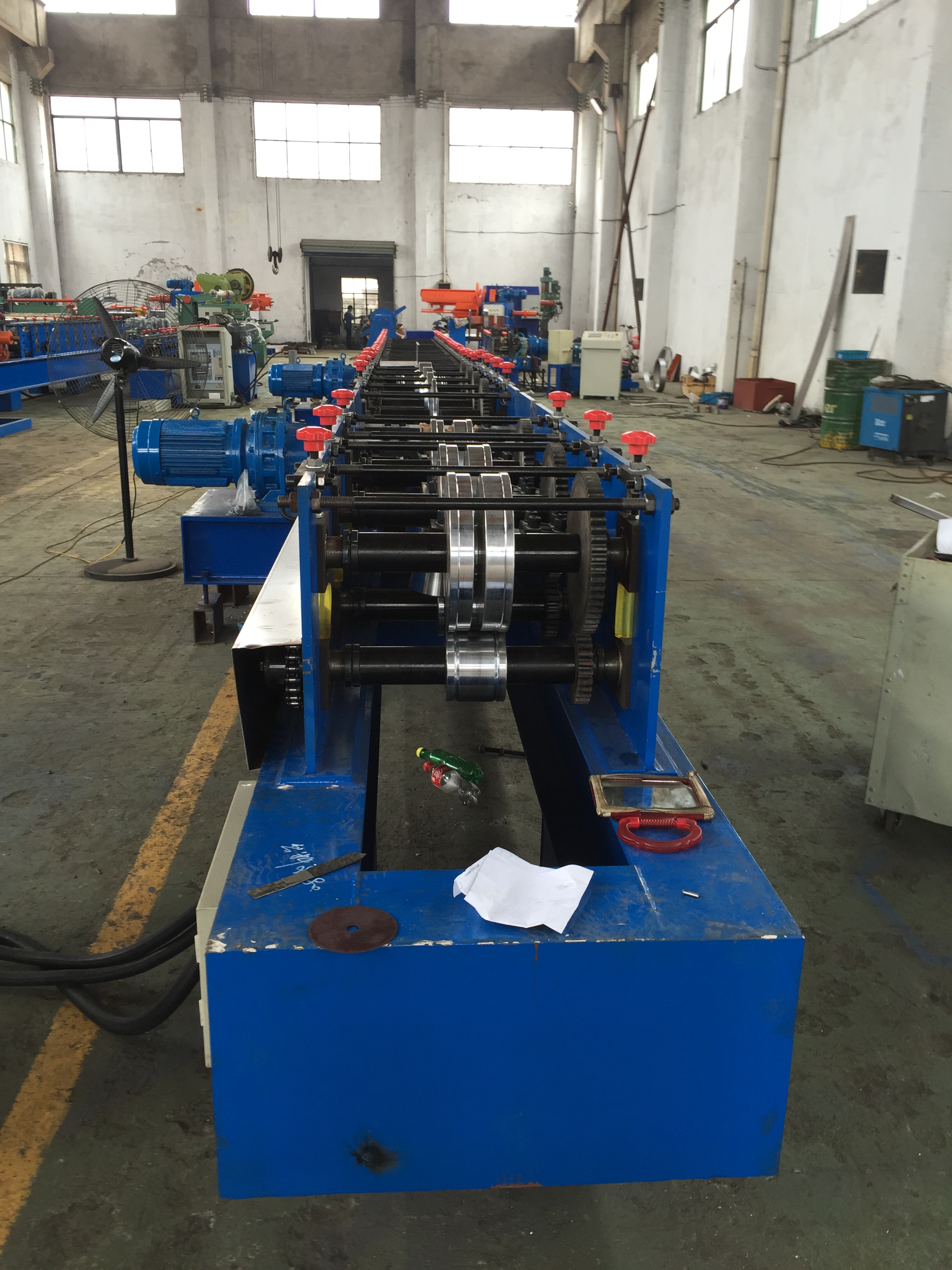

Machine pictures
