0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine

Name: 0712mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine
Brand: Sussman
Price: 1 USD

Buy cheap 0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine product

Brand Name : Sussman

Model Number : SM-OP

Certification : SGS.ISO,CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : Standard package with film, plastic and steel wire.

Roller Stations : 12 stations

Material thickness : 0.7-1.2mm

Main motor power : 5.5Kw

Roller material : 45# steel

Hydraulic cutting pressure : 10-12Mpa

Forming Speed : 8-15m/min

Transmission way : chain

Material of blad : Cr12, quenching treatment

Control system : PLC

Cutter type : Hydraulic flying saw

Contact Now

Fully Electric Automatic Building Material Metal Perferation Shutter Door Roll Forming Machine

Technical Data

1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )

2. Cutting: Hydraulic cutting

3. Transmission way: chain

4. Material of blade: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton hydraulic decoiler

6. Forming Speed: 3-5m/min

7. Roller Groups: 13 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: color-coated galvanized steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5Kw

12. Punching moulds: 5 sets

Production Line Machine List

Serial No.	Commodity & Description	Quantity
1	3T manual uncoiler	1 set
2	feeding guiding	1 set
3	Main roll forming machine	1 set
4	Output table	1 set
5	Main drive gear box	1 set
6	Fly saw cutting	1 set
7	Controlling system (including cabinet)	1 set
8	Water cooling system	1 set
9	Cassette	2 sets

Standard Profile :

0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine

Working Flow of Octagon Pipe Roll Forming Machine

Uncoiling – feed Guiding–Roll forming ––Hydraulic cutting – Run-out table

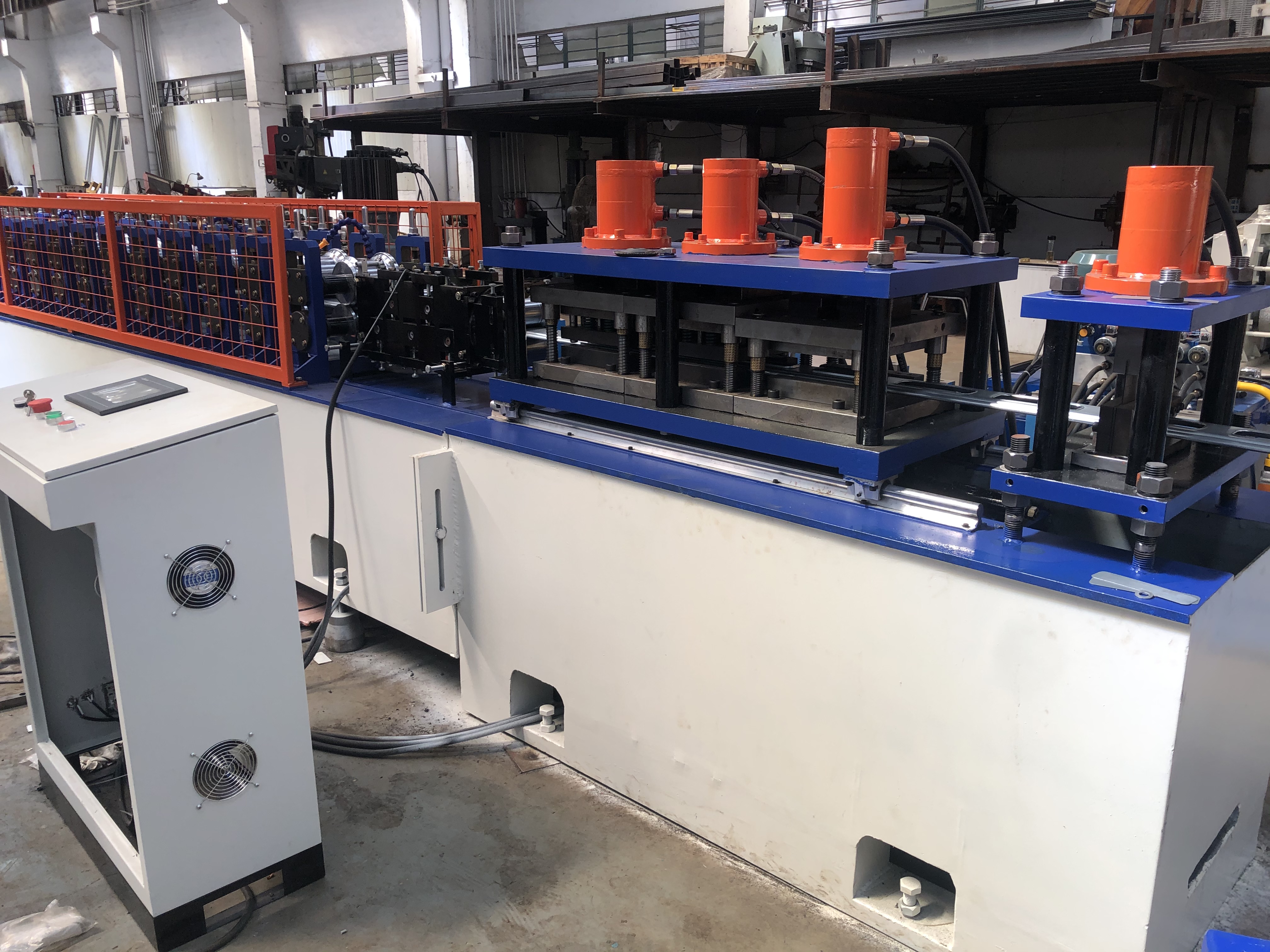

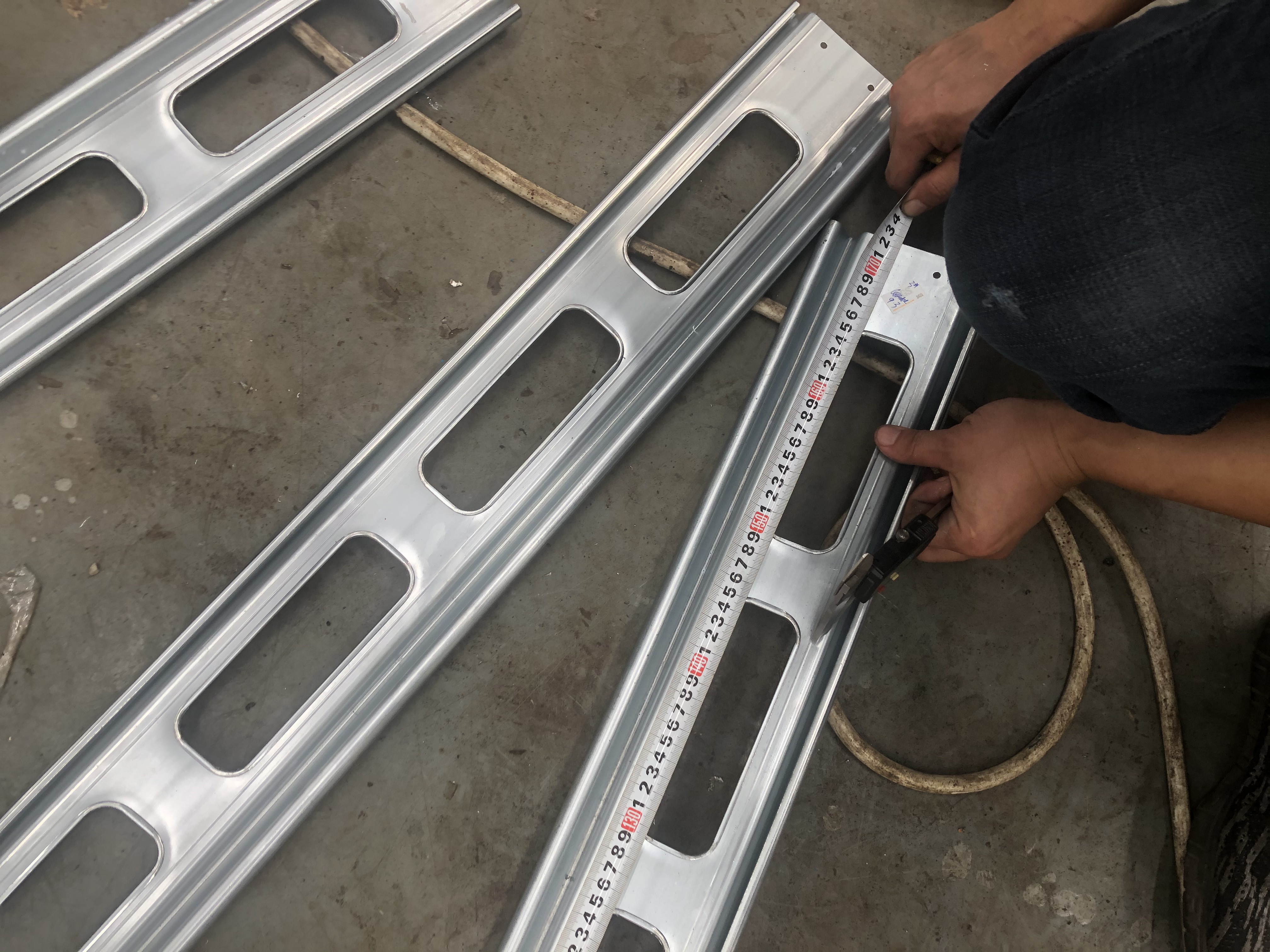

Photo Gallery and inspection pictures

0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine

0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine

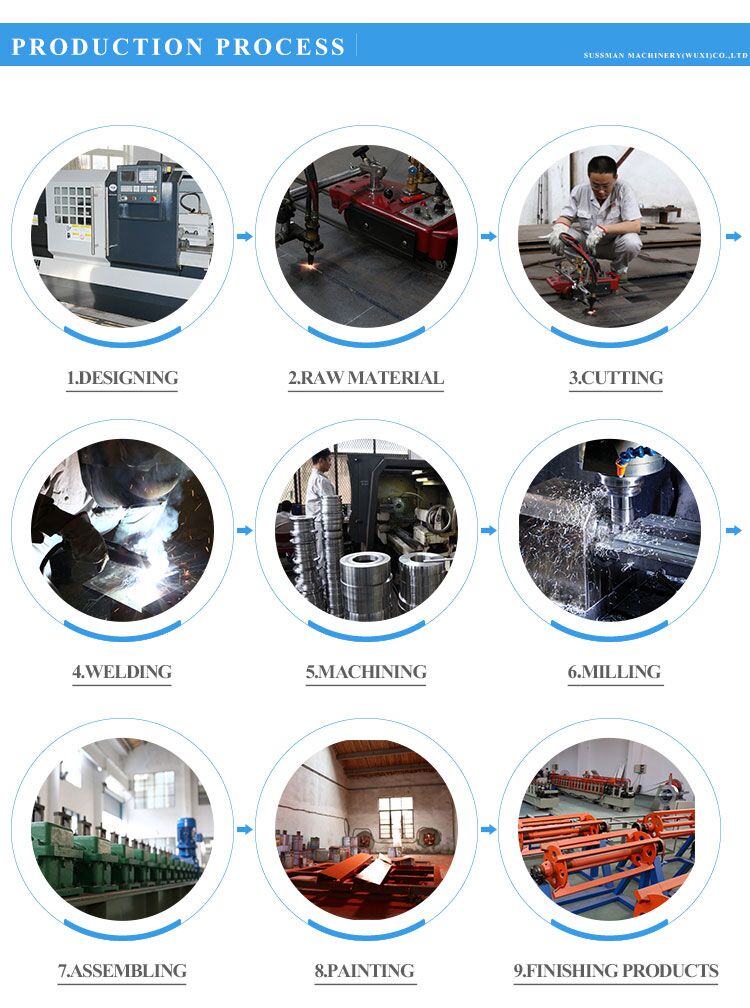

Production process
0.7-1.2mm Thickness Galvanized and the Color painted Perferation Shutter Door Roll Forming Machine
Loading picture
