Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission

Name: Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission
Brand: SUHANG
Price: 1 USD

Buy cheap Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission product

Brand Name : SUHANG

Model Number : SH-OP

Certification : SGS.ISO,CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : Standard package with film, plastic and steel wire.

Roller Stations : 18 stations

Material thickness : 0.27-1.2mm

Roller material : 45# steel

Hydraulic cutting pressure : 10-12Mpa

Forming Speed : 8-15m/min

Transmission way : chain

Material of blad : Cr12, quenching treatment

Control system : PLC

Machine Size : 4.5mx0.6mx0.8m

Machine weight : about 6 tons

Contact Now

Mental Shutter Door Roll Forming Machine

Machine Technical Data

	Items	Specifications	Remarks
Material of coil	Material Thickness	1.5-2mm galvanized
Material of coil	Un Coiler	3 tons manual
Forming system	Rolling Speed	10 m/min
	Roller Stations	12 stations
	Roller Material	45# Steel with quenching 50mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
Electrical control system	Control System	PLC (Panasonic) as list in the note
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 600mm*Height 800mm

Production Line Machine List

Components	3 ton passive decoiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Spare Parts

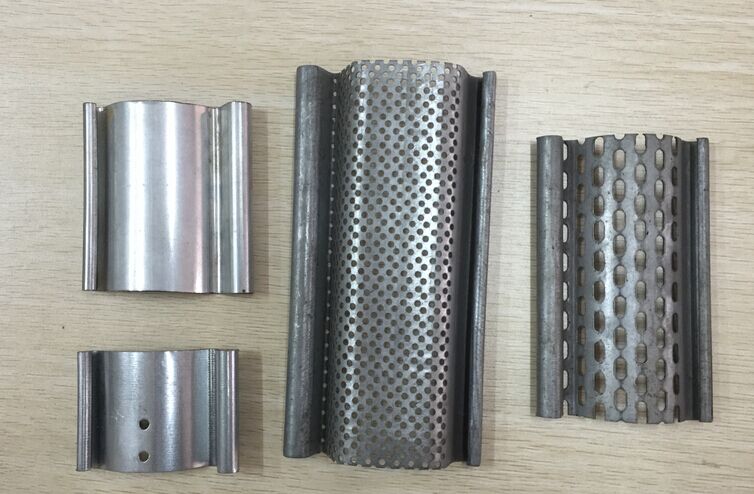

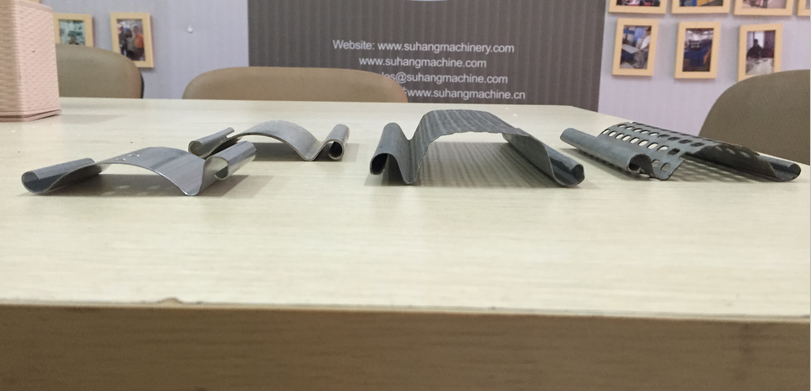

Standard Profile :

Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission

Working Flow of Octagon Pipe Roll Forming Machine

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission

Photo Gallery

Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission

Machine pictures

Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission
