PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine

Name: PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine
Brand: SUHANG
Price: 1 USD

Buy cheap PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine product

Brand Name : SUHANG

Model Number : SH-PU

Certification : SGS. ISO, CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 60 working days after deposit

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Roller Stations : 38 stations

Material thickness : 0.27-1.2mm

Main motor power : 11Kw

Roller material : 45# steel

Forming Speed : 8-15m/min

Material of blad : Cr12, quenching treatment

Control system : PLC with touch screen

Contact Now

PU Shutter Door Roll Forming Machine

Production Line Machine List

Serial No.	Commodity & Description	Quantity
1	3T manual uncoiler	1 set
2	feeding guiding	1 set
3	Main roll forming machine	1 set
4	Output table	1 set
5	Main drive gear box	1 set
6	Fly saw cutting	1 set
7	Controlling system (including cabinet)	1 set
8	Water cooling system	1 set
9	Cassette	2 sets

Technical Data

1. Steel Sheet Thickness: 0.27-1.2mm (depend on requirement )

2. Cutting: fly saw cutting

3. Transmission way: chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton hydraulic decoiler

6. Forming Speed: 8-15m/min

7. Roller Groups: 38 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: color-coated galvanized steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

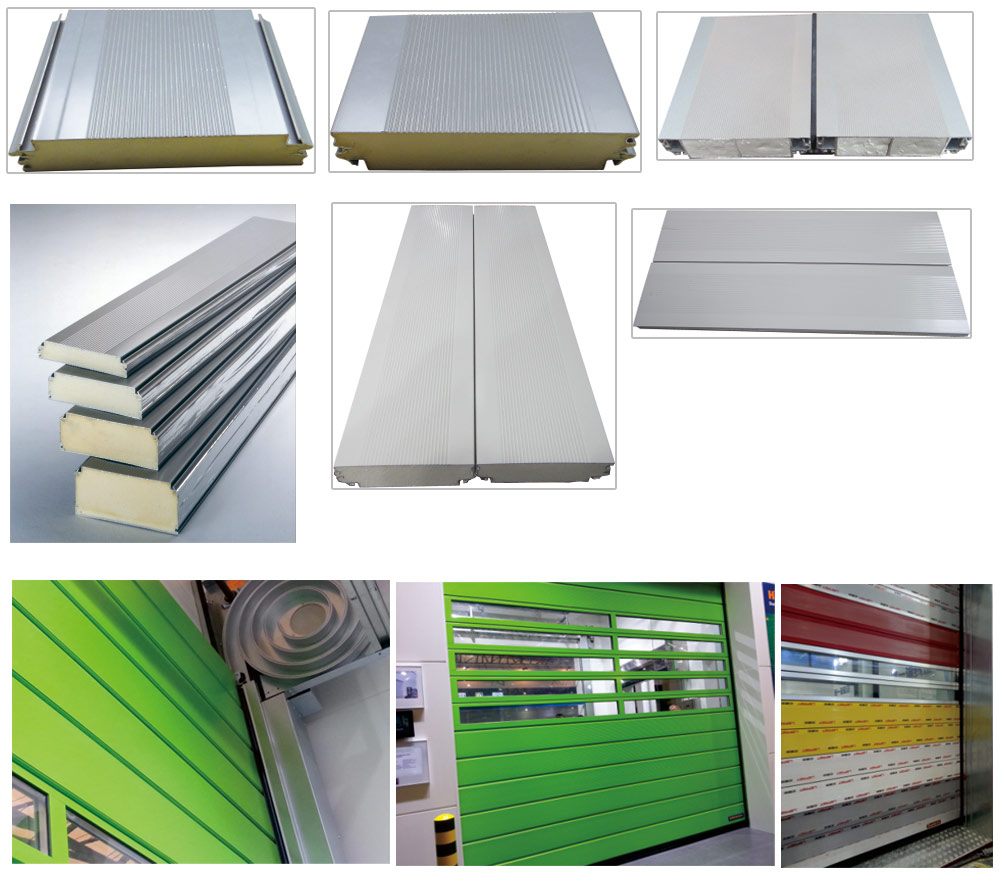

Standard Profile :
PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine

PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine

Working Flow

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine

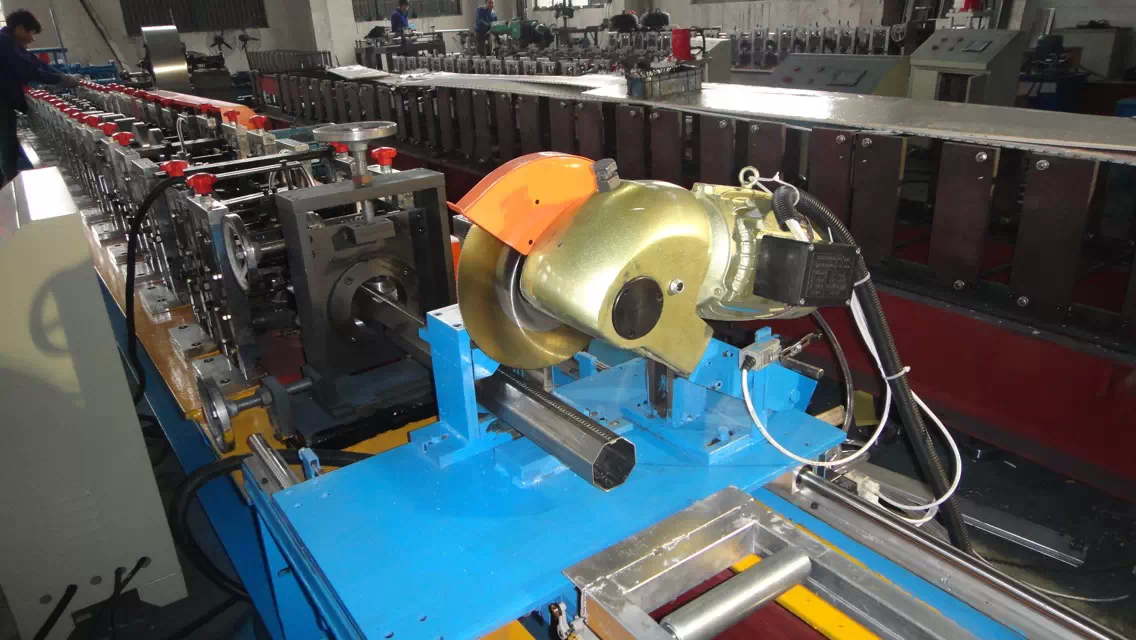

Photo Gallery

PU Shutter Door Roll Forming Machine Fully Automatic Steel Sheet Rolling Form Machine
