Width Adjustable Galvanized Steel Garage Door Roll Forming Machine Door Panel Making Machine 0.5-1.0mm Thickness

Width Adjustable Galvanized Steel Garage Door Roll Forming Machine Door Panel Making Machine 0.5-1.0mm Thickness

The 24 or 25 gauge non-insulated steel, deep ribbed, commercial sectional garage doors are a great alternative option that is durable and economical.

The width of the Sectional garage door panel can be adjustable, such as 450mm, 530mm 610mm.



Technical Data:



	Items	Specifications
Material of coil	Material Thickness	0.5mm galvanized coils
	Un Coiler	5 tons manual
Forming system	Rolling Speed	About 10 meters /minute
	Roller Stations	About 28-32 stations
	Roller Material	No.45 steel coated with chrome
	Maim Motor Power	7.5 kw
	Motor cutting Power	4 kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC as list in the note
	Weight	About 10 tons
	Way Of Drive	1.2 inch chain

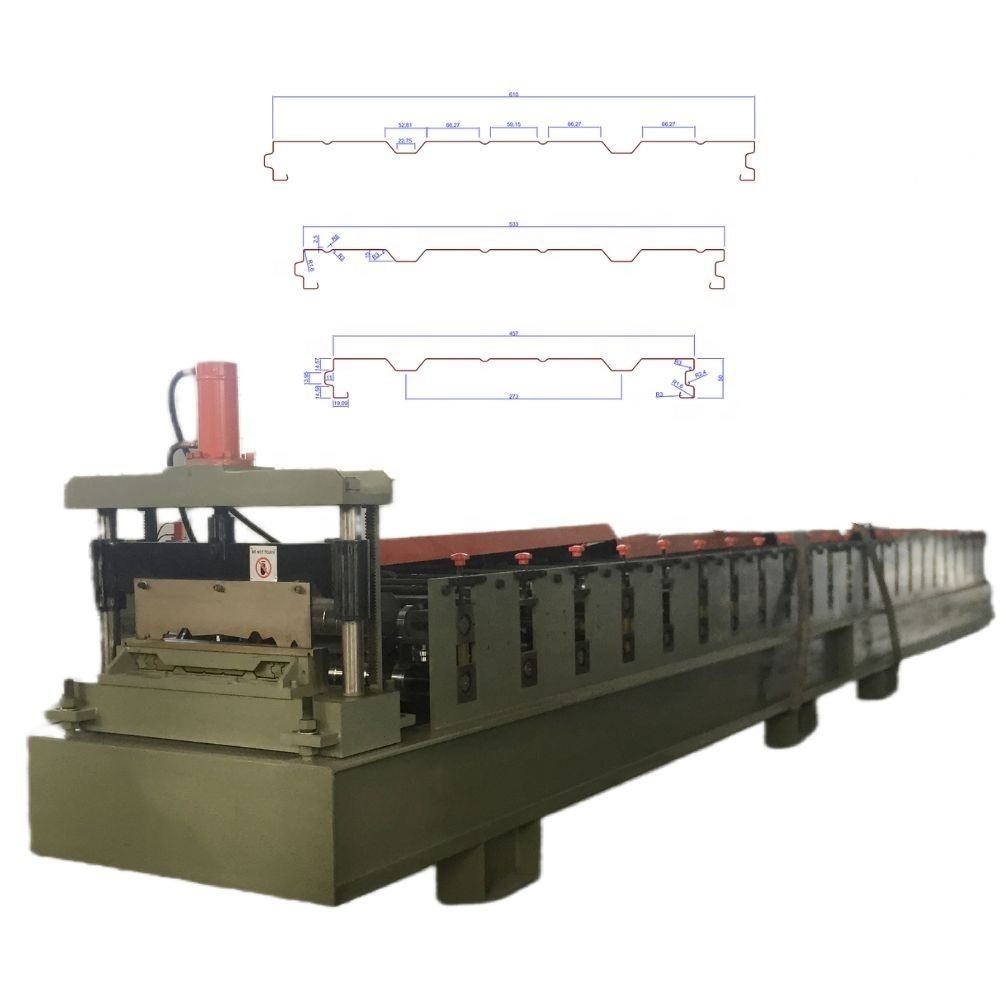

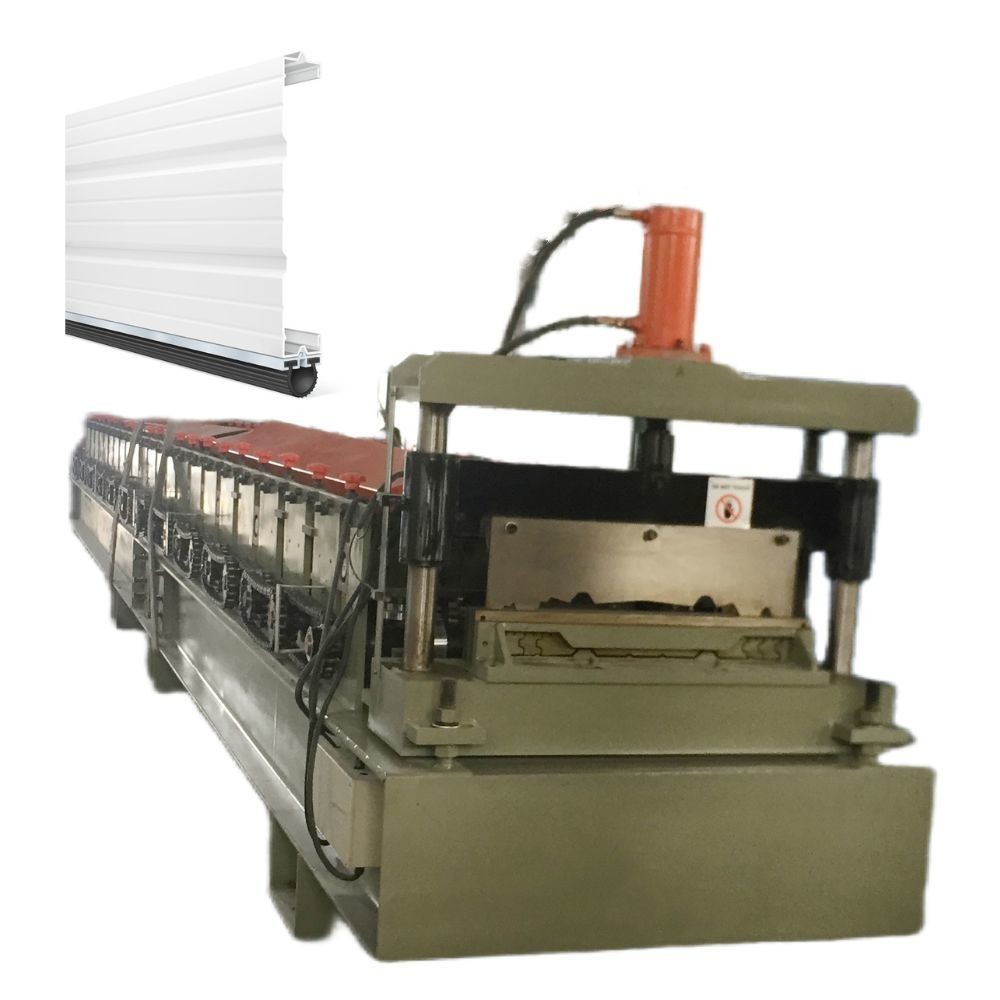

Machine List:

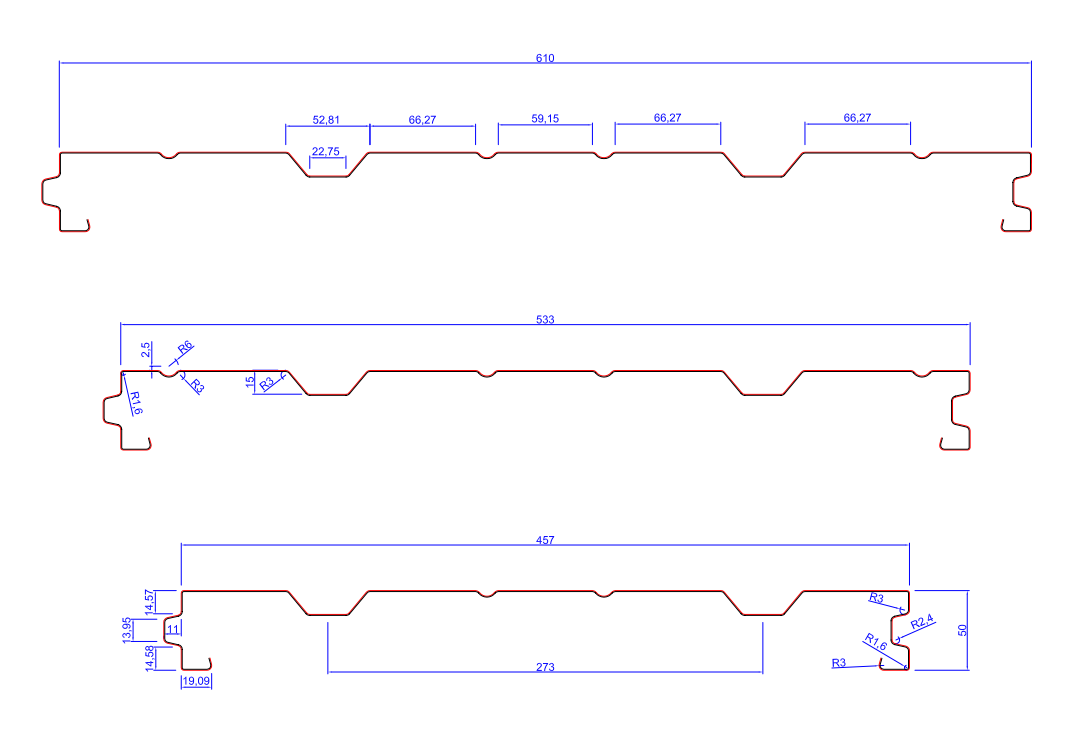

Profile Drawing:

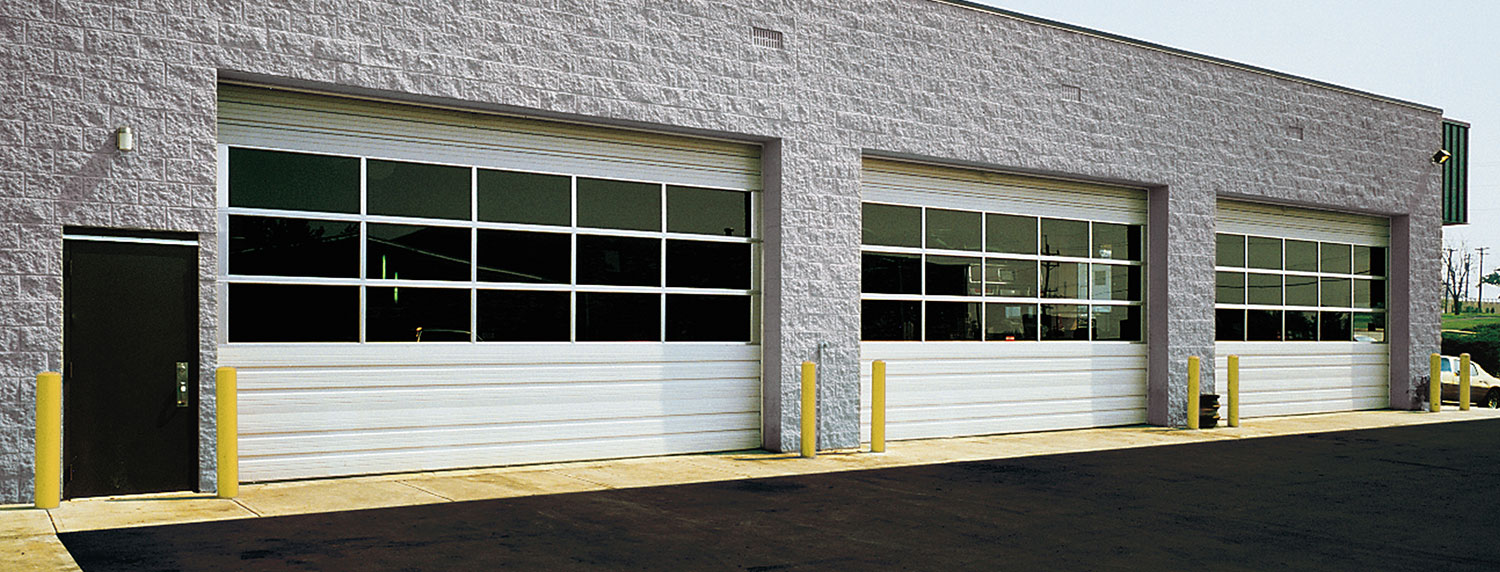

Application:

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

Packaging and delivery

Before loading to the container, we will check the machine first

Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery

Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container
