OEM Customized Galvanized Steel Rolling Door Bottom T Shaped Profile Roll Forming Machine
Machine Technical Data
| 1.Suitable material | Color steel sheet , galvanized steel |
| 2.Roller station | 23 steps |
| 3.Main motor power | 2*5.5KW |
| 4.Cutting method | Saw cutting |
| 5.Thickness of material | 0.6-1.2mm |
| 6.Diameter of principal axis | Φ60 |
| 7.Material expand width | as profile |
| 8.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 9.Material of roller | High grade Gcr15# forged steel plated with hard chrome plating |
| 10.Controlling system | PLC |
| 11.Processing speed | 8-12m/min |
| 12.Processing precision within | +-1.00mm (depend on design) |
| 13.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 14.Kind of drive | 1 inch chain |
| 15.Installation Dimension (L*W*H): | 7.8m*1.2m*1.3m |
| 16.Roller material | high grade 45#steel; Cr12 quenching |
| 17. Leak frame load-bearing | 6T |

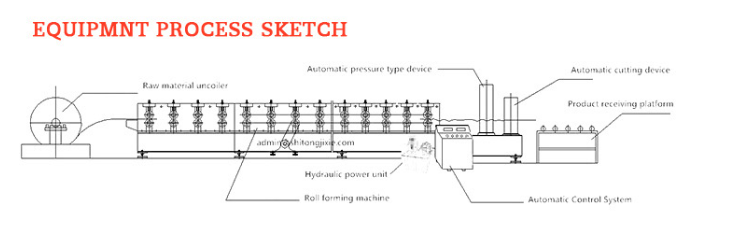

Working flow
Decoiler----------feeding with guide-------roll forming---------saw cutting-----out table
Production Line Machine List
| Serial No. | Commodity & Description | Quantity |
| 1 | 3T passive uncoiler | 1 set |
| 2 | feeding with guiding | 1 set |
| 3 | Main roll forming machine | 1 set |
| 4 | Output table | 1 set |
| 5 | Main drive chain | 1 set |
| 6 | Saw cutting | 1 set |
| 7 | Controlling system (including cabinet) | 1 set |
| 8 | Water cooling system | 1 set |

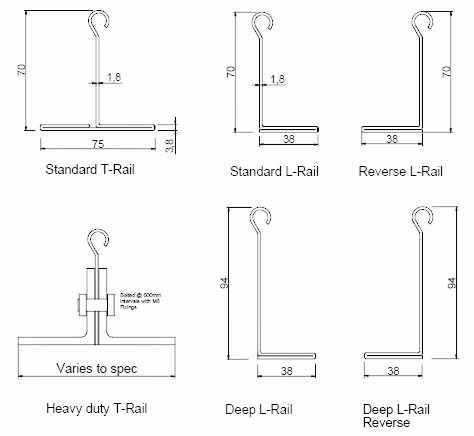

Standard Profile
Steel bottom profile is used for rolling shutter, it is most T type bottom and customized steel profile bottom
Our Exhibition

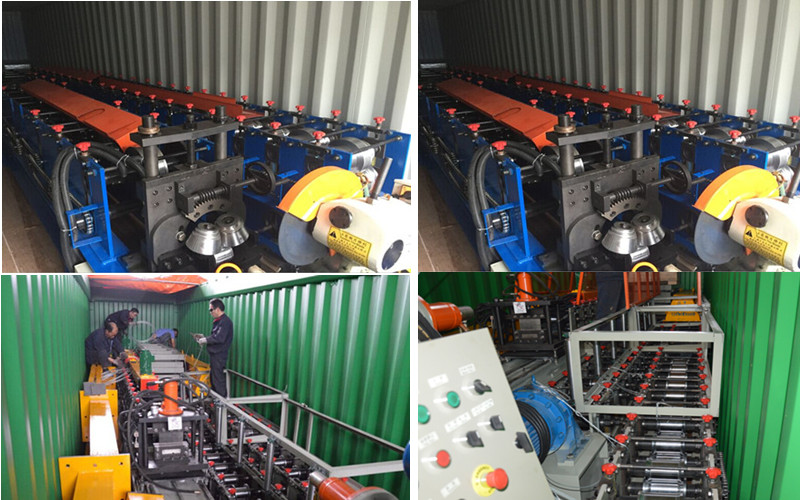

Loading pictures

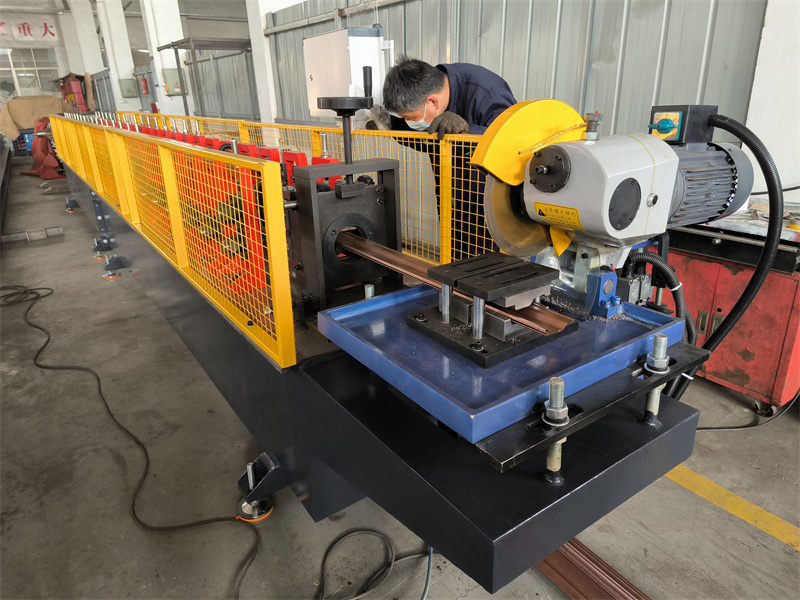

The machine photo
We are the professional shutter door series machine manufacturer in China,such as metal rolling door machine, shutter door rail machine, shutter door cover machine, octagonal pipe machine, awning tube machine, PU foam rolling door machine.
Regarding shutter door bottom thickness from 0.7-1.2 mm, material use PPGI or GI material all ok.
and we export shutter door machines all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc.
1. We can produce the special machine,send your drawing to us,we can design for you.
2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
