Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine

Name: Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine
Brand: Sussman
Price: 1 USD

Buy cheap Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine product

Brand Name : Sussman

Model Number : SS-OP

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 55-65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.4-1.2mm

Forming Speed : 12-15 m/min

Main Motor Power : 7.5Kw

Forming Stations : about 20 stations

Contact Now

Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine

Octagon Pipe Technical Parameter

1. Steel Sheet Thickness: 0.4-1.2mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: chain
4. Chain: 1 inch single chain
5. Capacity of Decoiler: 3 Ton passive decoiler
6. Forming Speed: 10-15m/min
7. Roller Groups: about 20 stations main roller
8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
9. Principal Axis: 45# high grade steel with quenching treatment
10. Main Motor Power: 7.5 Kw

Octagon Pipe Main Components

S.N	Equipment name	Quantity
1.	3T manual un-coiler	1 set
2.	Feeding and leveling device	1 set
3.	Main roll forming machine	1 set
4.	Water cooling system	1 set
5.	Control system (including control box)	1 set
6.	Out tables	2 sets
7.	Spare parts	1 package
8.	Fly saw cutting	1 sets

Advantage for Octagon Pipe

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Applications

Be the series part of shutter door.

Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine

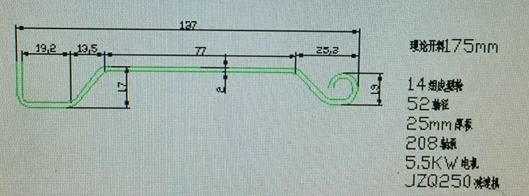

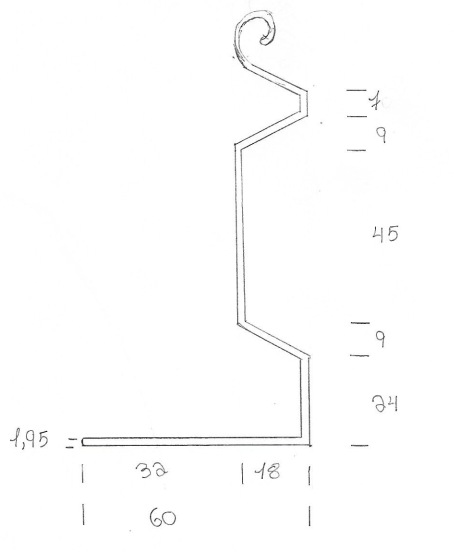

Profiles

Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine

we done bofore

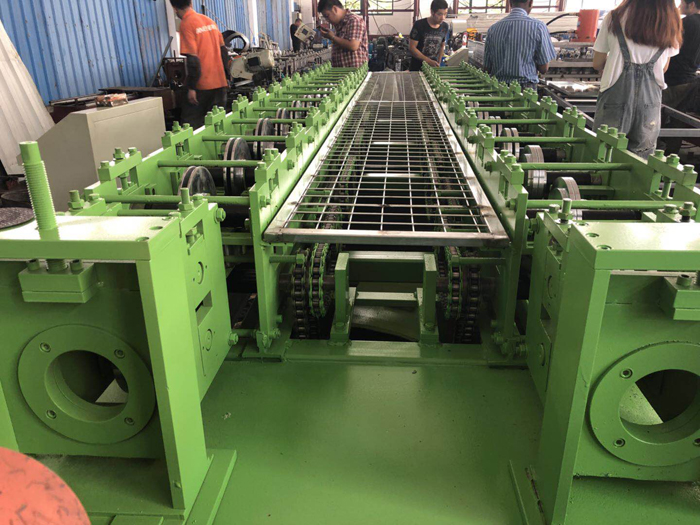

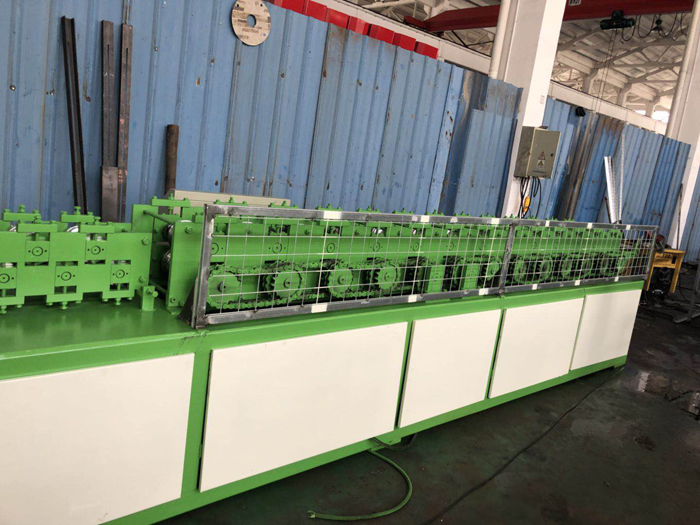

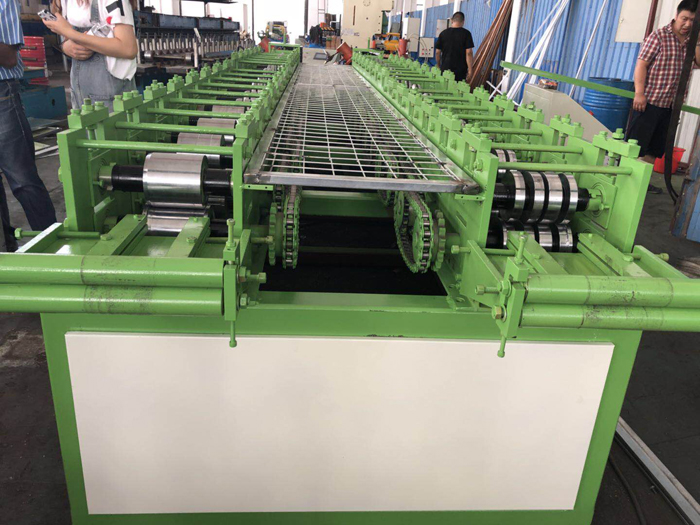

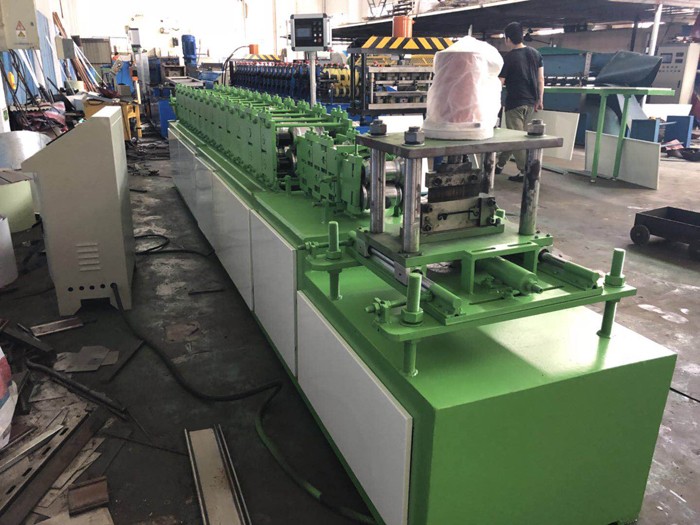

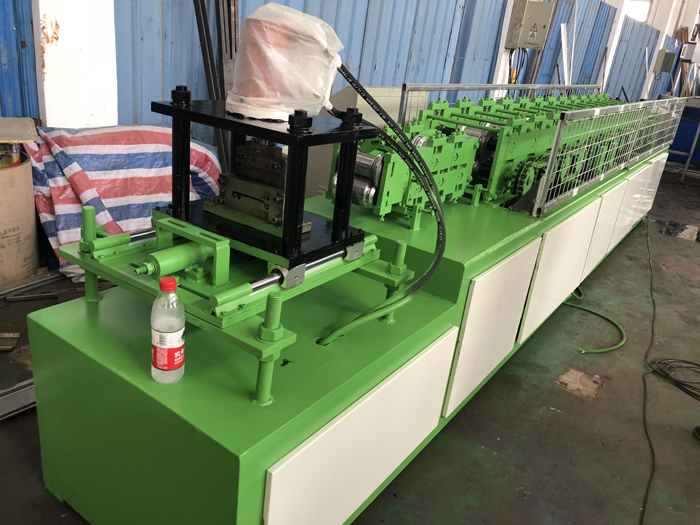

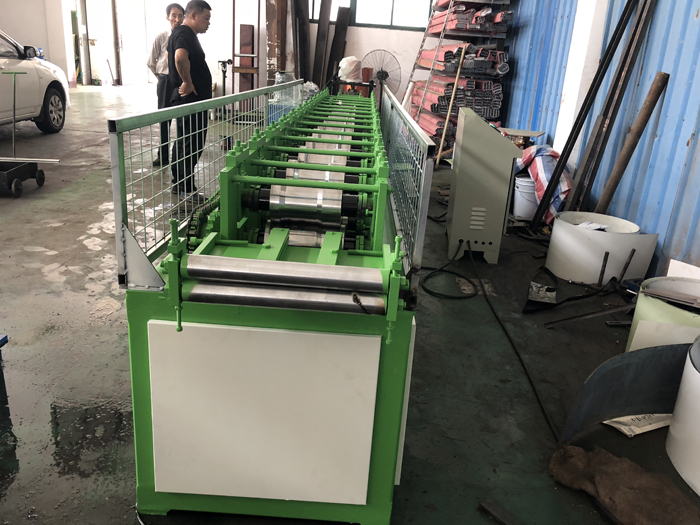

Machine pictures

Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine
