Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ

Name: Fly Saw Cutting HRC5862 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ
Brand: Sussman
Price: 1 USD

Buy cheap Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ product

Brand Name : Sussman

Model Number : SS-PUSD

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 65-75 days after deposit

Packaging Details : Standard Packing

Sheet material Thickness : 0.27-0.4mm

Speed : 8-15m/min

Main Motor Power : 11Kw

Contact Now

Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ

PU Shutter Door Technical Parameter

1. Steel Sheet Thickness: 0.27-0.4mm (depend on requirement )

2. Cutting: fly saw cutting

3. Transmission way: chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton hydraulic decoiler

6. Forming Speed: 8-15m/min

7. Roller Groups: 46 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: color-coated galvanized steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

PU Shutter Door Main Components

S.N	Equipment name	Quantity
1.	3T manual un-coiler	1 set
2.	Guide and leveling device	1 set
3.	Main roll forming machine	1 set
4.	Foaming machine(just foamed one owned)	1 set
5.	Straighten device	1 set
6.	Control system (including control box)	1 set
7.	Out tables	2 sets
8.	Fly saw cutting	1 set
9.	Spare parts and tools	1 set

Advantage for PU Shutter Door

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow of PU Shutter Door

Decoiler--feedingdevice--mainforming--PU injection--straightendevice--punching--FlysawCutting ---run out table

Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ

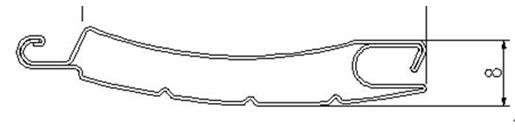

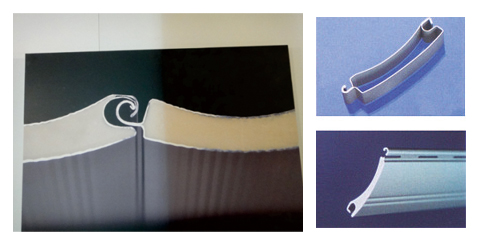

Profiles of PU Shutter Door

Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ

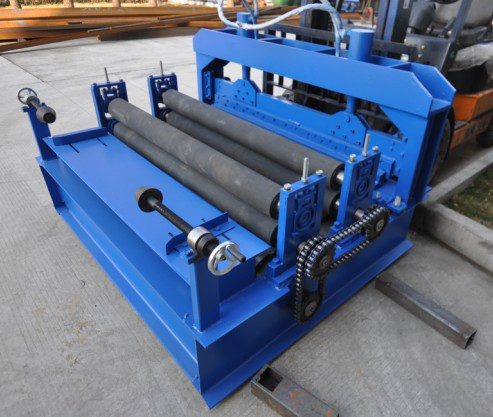

Machine pictures

Fly Saw Cutting HRC58-62 11Kw Main Power PU Shutter Door Roll Forming Machine 380V 50HZ
