12 Stations Cold Roll Former PLC For Metal Shutter Door Production

Name: 12 Stations Cold Roll Former PLC For Metal Shutter Door Production
Brand: Sussman
Price: 1 USD

Buy cheap 12 Stations Cold Roll Former PLC For Metal Shutter Door Production product

Brand Name : Sussman

Model Number : SS-DR

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 55-65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.7-1.2mm

Forming Speed : 8-10 m/min

Main Motor Power : 7.5Kw

Forming Stations : 12 stations

Contact Now

12 Stations Cold Roll Former PLC For Metal Shutter Door Production

Door Rail Technical Parameter

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 8-10m/min
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: Cr40 steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

12. Hydraulic Power: 4Kw

Door Rail Main Components

S.N	Equipment name	Quantity
1.	3T passive un-coiler	1 set
2.	Feeding and leveling device	1 set
5.	Main roll forming machine 12 stations drived by chain	1 set
6.	Hydraulic cutting	1 set
7.	Control system (including control box)	1 set
8.	Out tables	2 sets
9.	Water cooling system	1 set

Advantage for Door Rail

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

12 Stations Cold Roll Former PLC For Metal Shutter Door Production

Profiles of Door Rail

12 Stations Cold Roll Former PLC For Metal Shutter Door Production

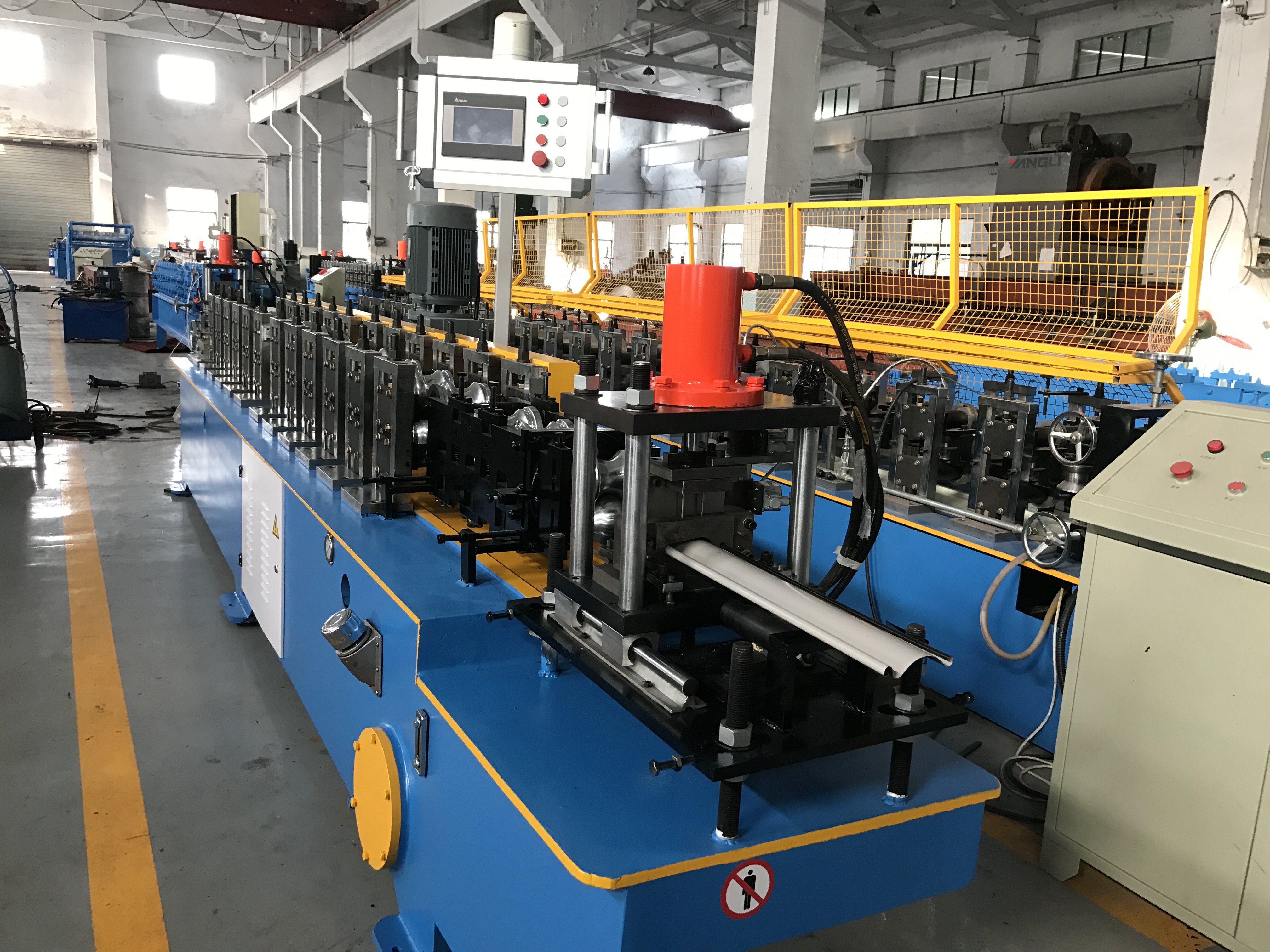

Machine Pics

12 Stations Cold Roll Former PLC For Metal Shutter Door Production
