Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

Name: Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS
Brand: Sussman
Price: 1 USD

Buy cheap Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS product

Brand Name : Sussman

Model Number : SM-CT

Certification : CE,SGS,ISO

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 5 sets per month

Delivery Time : 90 days after deposit

Packaging Details : Film and steel wire

Main Power : 22KW

Thickness : 1.0-3.0mm

Driven system : 1.5 inches Chain Driven

Electric Source : 380V, 50HZ,3 phase

Width of the profile : 200-600mm

Roller Stations : 20 stations

Material : Galvanized steel or blank steel

Rolling Speed : 8-9m/min

Warranty : 12 months

Contact Now

European Standard Cable Tray Production Line,Aluminum Cable Tray Forming Machine

Technical Parameter

	Items	Specifications
	Un Coiler Raw material	galvanized coils
	Height of the profile	60-200mm
	Thickness	1.0mm-3.0mm galvanized coils
Punching	Way	Hydraulic punching moulds 3 sets
Forming system	Rolling Speed	8-9m/min
	Roller Stations	About 20 stations
	Roller Material	Gcr 15with quenching
	Shaft	Dia 75mm
	Hydraulic cutting Power	7.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC (Panasonic) as list in the note
	Weight	About 8 tons
	Profile adjustment	Control by the rails&motor
	Way Of Drive	1.5 inch chain
	Size of machine	Length 11000mm* Width 800mm* Height 1000m

Technological process

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

This Production line includs automatic decoiler, level device, servo feeding, punching press, main molding core, hydralic system, control system, panel supporting table.

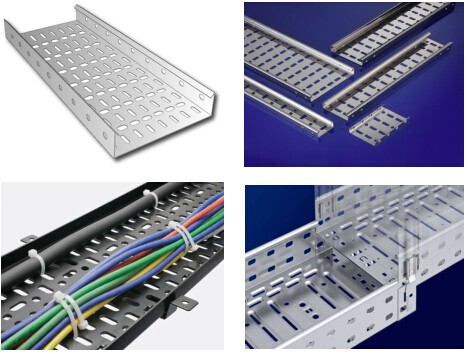

Sample pictures

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

Factory Overview

Easy Operation Trench Cable Tray Roll Forming Machine 22KW 600MM Width SGS

Our advantage

a. To produce the best cable tray roll forming machine, Machine is taken EUROPEAN quality standard.
b. Choose the best material and components, and adopting our 15+ years experience.
c. Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
d. Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
e. Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than eighty countries and regions.We have professional team, complete production system, high quality products, good service.
f. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

Main product:

Light keel roll forming machine

Roof roll forming machine

Roller shutter door roll forming machine

C and Z purlin roll forming machine

Downpipe roll forming machine

Hydraulic decoiler

Bending machine

Slitting machine
