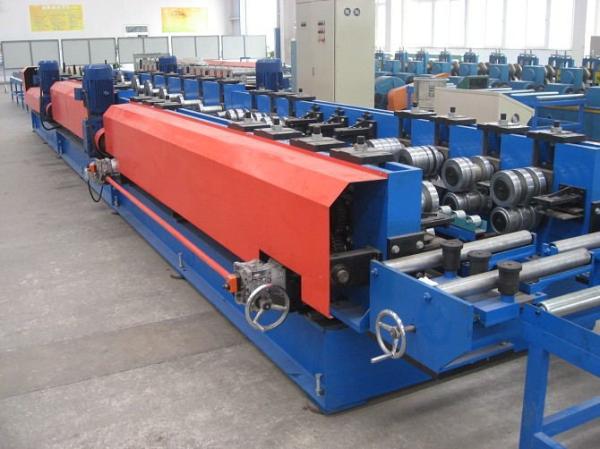

Chain Drive C Steel Frame Roll Forming Machine Cable Tray Manufacturing Machine

Name: Chain Drive C Steel Frame Roll Forming Machine Cable Tray Manufacturing Machine
Brand: Sussman
Price: 1 USD

Buy cheap Chain Drive C Steel Frame Roll Forming Machine Cable Tray Manufacturing Machine product

Brand Name : Sussman

Model Number : SM-CT

Certification : CE,SGS,ISO

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, MoneyGram

Supply Ability : 5 sets per month

Delivery Time : 50 days after deposit

Packaging Details : Film and steel wire

Width of the profile : 200-500mm

Height of the profile : 50-200mm

Raw material : galvanized steel coils

Thickness : 1mm-2mm

Rolling Speed : 4-5m/min

Maim Motor Power : 22kw

Size of machine : 11000mm* Width 800mm* Height 1000m

Contact Now

1.5 inch Chain Drive C Steel Frame Machine Cable Tray Manufacturing Machine

Main Features

1) Simple structure in linear type ,easy in installation.
2) Adopting advanced world famous brand components,electric parts and operation parts.
3) Finished plate tile neat appearance, no draw paint, cut neat.

Technical Parameter

	Items	Specifications
	Raw material	1mm-2mm galvanized coils
	Width of the profile	200-500mm
	Height of the profile	50-200mm
Punching	Way	Hydraulic punching moulds 3 sets
Forming system	Rolling Speed	4-5m/min
	Roller Stations	About 20 stations
	Roller Material	Gcr 15with quenching
	Shaft	Dia 75mm
	Maim Motor Power	22 kw
	Hydraulic cutting Power	7.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Tolerance	+-1.5mm
Electrical control system	Electric Source	415V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC (Panasonic) as list in the note
	Weight	About 8 tons
	Profile adjustment	Control by the rails&motor
	Way Of Drive	1.5 inch chain
	Size of machine	Length 11000mm* Width 800mm* Height 1000m

Machine list

3 ton hydraulic de-coiler 1 set
Hydraulic punching device with models
Details according to profile drawing 1 set
Main roll forming machine 1 set
PLC control system with touch screen 1 unit
Hydraulic cutting device with hydraulic station 1 unit
Out tables 2 units

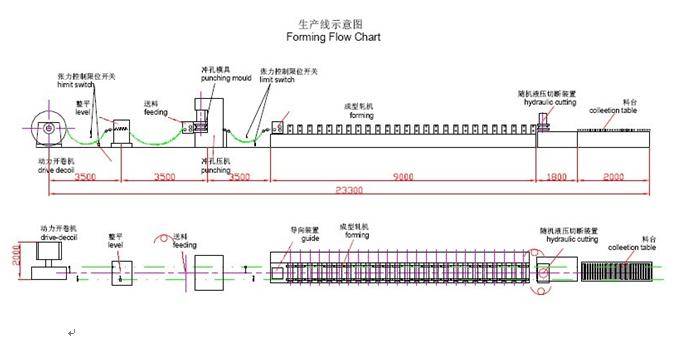

Technological process
Chain Drive C Steel Frame Roll Forming Machine Cable Tray Manufacturing Machine

Profile of product

Chain Drive C Steel Frame Roll Forming Machine Cable Tray Manufacturing Machine

Customers visiting
