Name: 1 Inch Single Chain Drive Roll Forming Equipment For Wall Angel Channel Roof Panel
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/ month

Delivery Time : 50 days after deposit

Packaging Details : Standard package with film, plastic and steel wire.

Material thickness : 0.4-0.8mm, Galvanized steel

Forming speed : 12m/min

Roller stations : 9 stations

Main motor power : 5,5Kw

Hydraulic power : 4Kw

Warranty : 12 months

Control system : PLC with touch screen

Way of drive : 1 inch single chain

Weight : About 2.5 tons

Contact Now

Wall Angle Roll Forming Machine

Technical Parameter

Material of coil	Material Thickness	0.4-0.8 mm galvanized sheet G550
Forming system	Rolling Speed	About 20 m/min line speed
	Roller Stations	About 9 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	4 kw
Cuttingsystem	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC control system
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 500mm* Height 800m

Work Flow Chart

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

1 Inch Single Chain Drive Roll Forming Equipment For Wall Angel Channel / Roof Panel

Machine Components

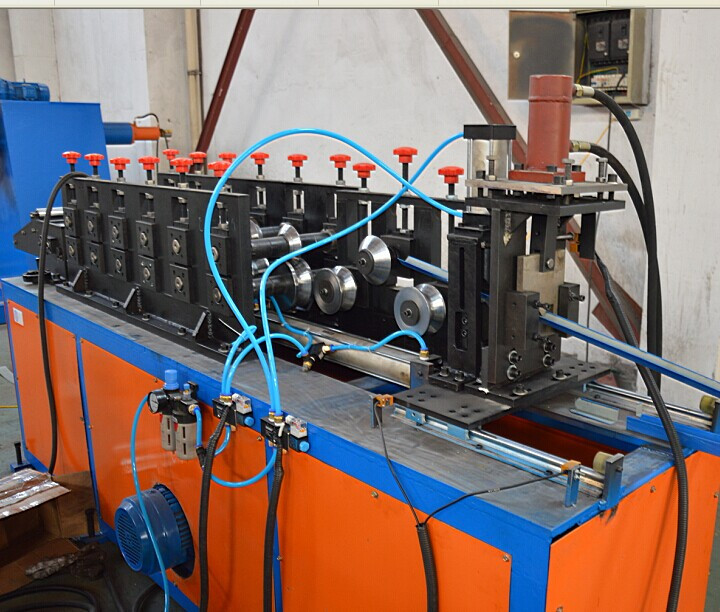

Machine Photo

1 Inch Single Chain Drive Roll Forming Equipment For Wall Angel Channel / Roof Panel
