Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : CE

Place of Origin : WUXI CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 65-75 days after deposit

Packaging Details : standard packing

Type : Fire Damper Blade Roll Forming Machine

Thickness : 0.6-1.0mm

Rolling Speed : About 10m/min

Motor Power : 5.5 kw

cutting Power : 4 KW

Way Of Drive : 1.2 inch chain

Contact Now

Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width


Technical Parameter


 ItemsSpecifications
Material of coilMaterial Thickness0.6-1.0mm
 Un Coiler3 tons manual
Forming systemRolling SpeedAbout 10m/min
 Roller StationsAbout 12 stations feeding
 Roller Material

Gcr15 coated with chrome


 Maim Motor Power5.5 kw
 Motor cutting Power4kw

Cutting
system

Material Of CuttingCR12mov with quench treatment
 HardnessHRC58-62
 Tolerance+-1.5mm
Electrical control systemElectric Source

415 V, 50HZ,3 phase
Also can satisfy Customer’s requirey

 Control SystemPLC (Panasonic) as list in the note
 WeightAbout 4 tons
 Way Of Drive1.2 inch chain


Machine list


Machine list3 ton passive de-coiler1 set
 Main roll forming machine1 set
 PLC Control box1 unit
 Hydraulic station1 unit
 Out table1 unit
 One 20 feet GP Container


Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting

Profile Drawing

Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width

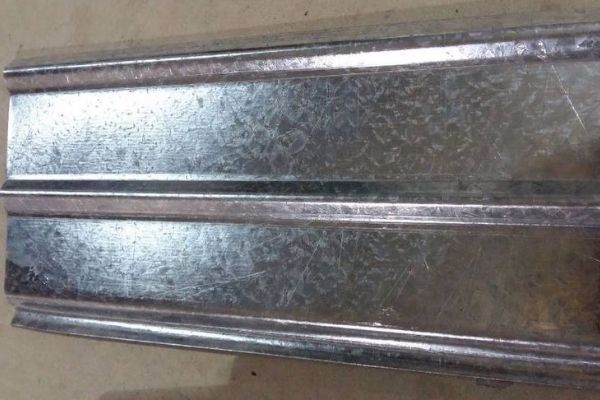

Samples

Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width
Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width

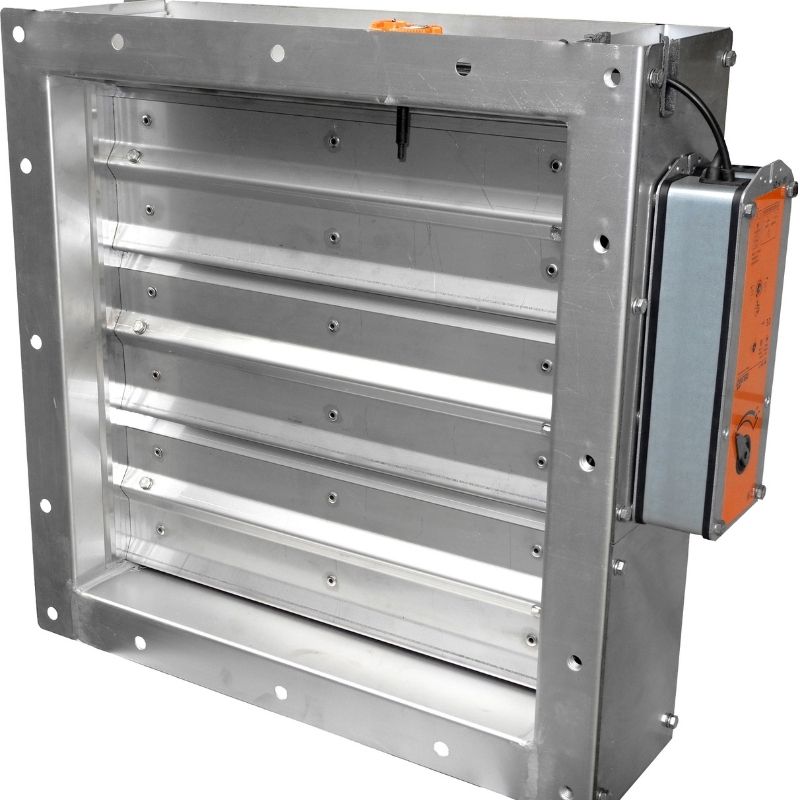

Application:

Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width


Advantage for Fire Damper
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable


After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
