Galvanized Steel Sheet Roll Forming Equipment , Sheet Metal Roll Forming Machines

Brand Name : Sussman

Model Number : SS-FP

Certification : CE, SGS, ISO

Place of Origin : China (Mainland)

MOQ : one set

Price : negotiable

Supply Ability : 10 sets/ month

Delivery Time : 60 working days after deposit

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Material : Galvanized steel sheet

Material thickness : 0.5-1.5mm

Forming stations : 22 stations total

Roller material : 45# Steel with quenching

Dirve system : Gearbox drive system

Power supply : 380V, 50Hz, 3Phase

Contact Now

Fence post roll forming machine



Technical Parameter







Item NO.





Description





Offered specification

1.0 Roll forming machine
1.1 Rolling speed 3-5m/min(not include cutting time)
1.2 Rolling thickness 0.5-1.5mm
1.3 Raw material Galvanized steel sheet
1.4 dimension 12000×1200×900mm
1.5 Effective width 200mm
1.6 Roller stations

22 stations total



1.7 Roller material 45# steel, coated with chrome, Quenching
1.8 Shaft diameter Φ70mm ,material is 45# forge steel
1.9 Transmission Gearbox driving system
1.10 Material of chain 45# forged steel with frequency quenching,
1.11 Material of cutting Cr12Mov with quench HRC58-62°
1.12 Cutting Tolerance 6m+- 1.5mm





Main Components



S.N



Equipment Name

Quantity
1 3t manual decoiler 1 set
2 Leveling device  1 set
3 Servo feeding device  1 unit
4 Press machineJH21-63 1 unit
5 Main roll forming machine 1 set
6 Cutting holder 1 set
7 Hydraulic station 1 set
8 Control system ( including control box) 1 set
9 Out tables 2 units
10 Spare parts 1 package
11 Cutting dies 1 set
12 Punching die set 1 set

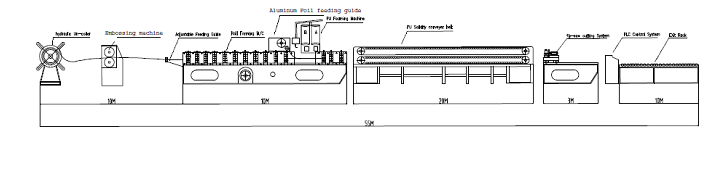

Working Flow



Decoiler----feeding with guide---Punching----Roll forming----Cutting---Collecting







Galvanized Steel Sheet Roll Forming Equipment , Sheet Metal Roll Forming Machines

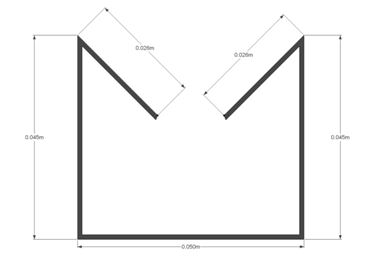

Main profile drawing show







Galvanized Steel Sheet Roll Forming Equipment , Sheet Metal Roll Forming Machines









Loading picture



Galvanized Steel Sheet Roll Forming Equipment , Sheet Metal Roll Forming Machines





Company Profile



Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before.



Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.



The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.
