1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

Sussman Machinery(Wuxi) Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

Brand Name : Sussman

Model Number : RF

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60days

Packaging Details : Film

Voltage : 380V

Type : Tile Forming Machine

Tile Type : Colored Glaze Steel

Warranty : 1 years

Contact Now

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller



The main description









Items



Specifications



Remarks

Material of coil Material Thickness 0.3—0.8mm
Un Coiler 3 tons manual
Forming system Rolling Speed 5-10m/min
Roller Stations 16 stations
Roller material 45# steel, coated with chrome
Maim Motor Power 5.5kw

Hydraulic cutting Power



4kw

Cutting

system

Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy customer’s require


Control System PLC with touch screen
  Way Of Drive 1.2 inch single chain

Packing

information

Color of the machine blue



Process



Uncoiling—Feeding—Roll forming—Cutting—Products collecting



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

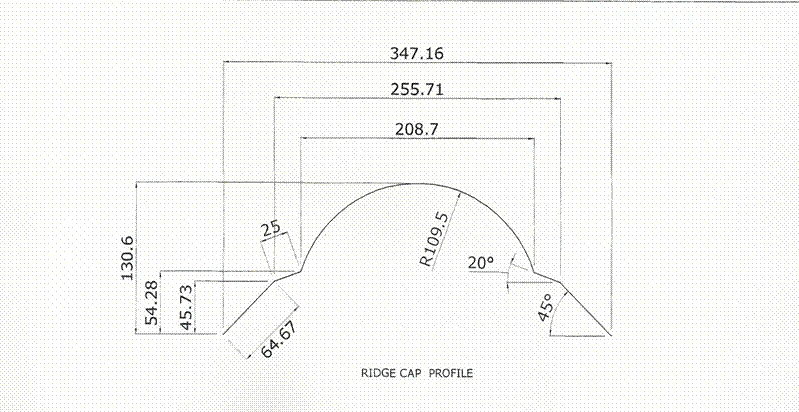

The Profile of the product (Basis on customer’s requirement to design)



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

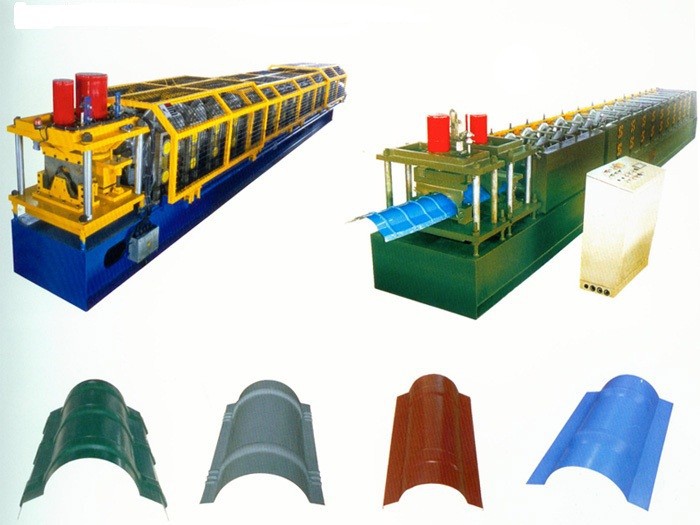

Machine picture



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller



1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller





Quality Control



1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.



FAQ



1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
