Automative Seamless Gutter Making Machine Ogee K Style 13 Stations

Name: Automative Seamless Gutter Making Machine Ogee K Style 13 Stations
Brand: SUSSMAN
Price: 1 USD

Buy cheap Automative Seamless Gutter Making Machine Ogee K Style 13 Stations product

Brand Name : SUSSMAN

Model Number : SM-KS

Certification : CE,SGS,ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 55-65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.3-0.6mm

Forming Speed : 15m/min

Main Motor Power : 5.5Kw

Forming Stations : 13 stations

Hydraulic power : 4Kw

Contact Now

Automative Seamless Gutter Making Machine Ogee K Style 13 Stations

Ridge Cap Technical Parameter

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	10-15m/min(not include cutting time)
1.2	Rolling thickness	0.3-0.6mm
1.3	Raw material	Galvanized steel sheet
1.6	dimension	3500×1600×1500(mm)
1.7	Effective width	60mm
1.8	Roller stations	13 stations One stage for embossing
1.9	Roller material	45#forge steel, coated with chrome
1.10	Shaft diameter	Φ70mm ,material is 45# forge steel
1.11	Transmission	By chain 1 inch
1.12	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	6m+-1.5mm
1.16	Frame	H type steel

Ridge Cap Main Components

S.N	Equipment name	Quantity
1.	3T manual un-coiler	1 set
2.	Feeding and leveling device	1 set
5.	Main roll forming machine 13 stations drived by single chain	1 set
6.	Hydraulic station	1 set
7.	Control system (including control box)	1 set
8.	Out tables	2 sets
9.	Spare parts	1 package

Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap

Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Automative Seamless Gutter Making Machine Ogee K Style 13 Stations

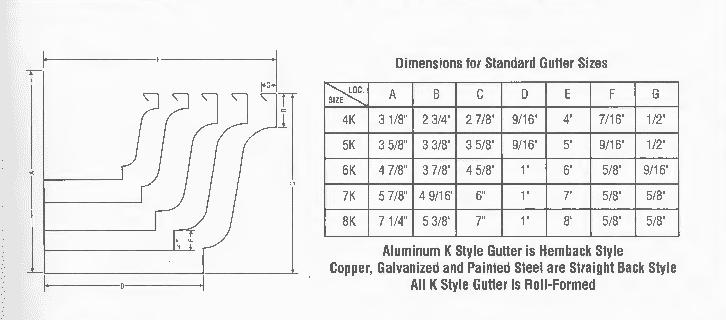

Profiles of Ridge Cap

Automative Seamless Gutter Making Machine Ogee K Style 13 Stations

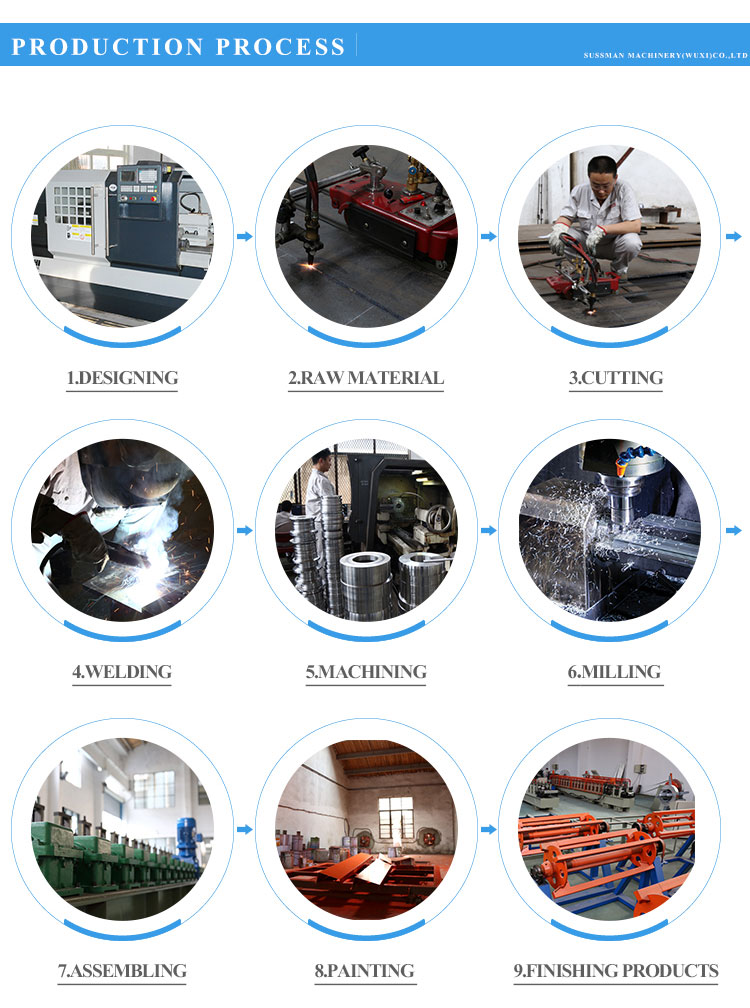

Our Workshop

Loading pictures

Automative Seamless Gutter Making Machine Ogee K Style 13 Stations
