2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm 12 Stations

Name: 2 inches Guide Rail Roll Forming Machine Material Thickness 152mm 12 Stations
Brand: Sussman
Price: 1 USD

Buy cheap 2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm 12 Stations product

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material thickness : 1.5-2mm galvanized

Uncoiler : 3 Tons manual

Servo Feeder Power : 1.5Kw

Rolling speed : 10m/min

Roller stations : 12 stations

Contact Now

2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm 12 Stations

1. Technical Parameter

Material of coil	Material Thickness	1.5-2mm galvanized
	Un Coiler	3 tons manual
Levelling device	7 rolls	NC300
Servo feeder	Power	1.5kw
Punching	Hydraulic punching	2 sets of punching dies
Forming system	Rolling Speed	10 m/min
	Roller Stations	12 stations
	Roller Material	45# Steel with quenching 50mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC (Panasonic) as list in the note
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 600mm* Height 800mm

2. Flow Chart

Uncoiler—Levelling—Servofeeding—Hydraulicpunching—Rollforming—Cutting—Outside table

2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm 12 Stations

3. Machine Components

3 ton passive decoiler	1 set
Levelling device	1 set
Servo feeding device	1 set
Hydraulic punching	2 sets
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Hydraulic cutting	1 unit
Out tables	1 unit

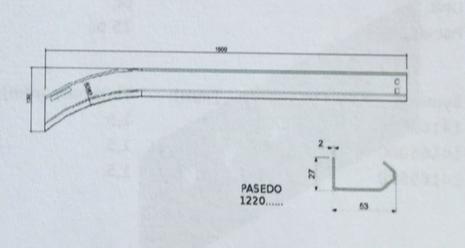

4. Profile Drawing

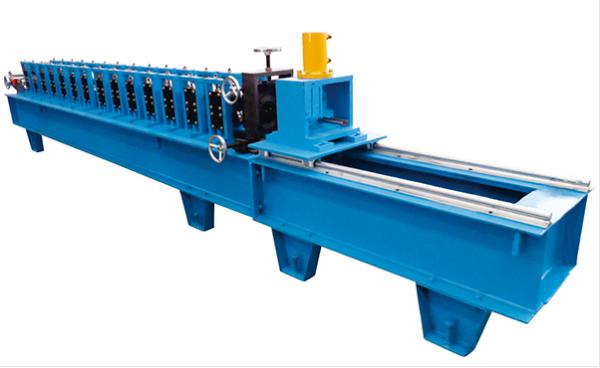

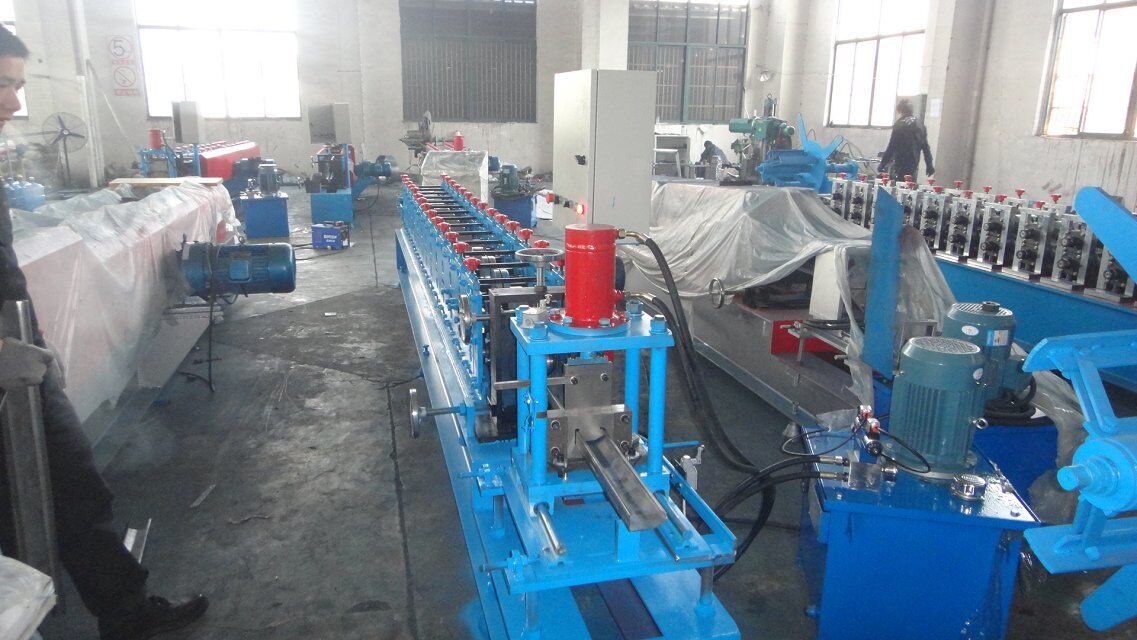

5. Machine Photo

2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm 12 Stations

6. Loading Photoes

7. Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
