Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with 25m/min Speed

Name: Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with 25mmin Speed
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material thickness : 0.7-0.9mm color painted sheets

profile width : about 20mm

Forming speed : 20-25m/min

Roller stations : 10 stations

Main motor power : 7.5Kw

Hydraulic cutting power : 4Kw

Contact Now

Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with Production Speed 25m/min

1. Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.7-0.9mm color painted sheets
	Profile width	About 20mm
	Profile height	About 10mm
Forming system	Rolling Speed	20-25m/min
	Roller Stations	10 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	4kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC Panasonic
	Servo motor	1.5 kw Yaskawa Brand
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 3000mm* Width 500mm* Height 800m
	Safety cover	Mesh safety cover

2. Flow Chart

feeding with guide—Roll forming——Cutting—Products collecting

3. Machine Components

3 ton passive de-coiler with wheels	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Servo fly cutting	1 unit
Hydraulic station	1 unit
Out table	2 units

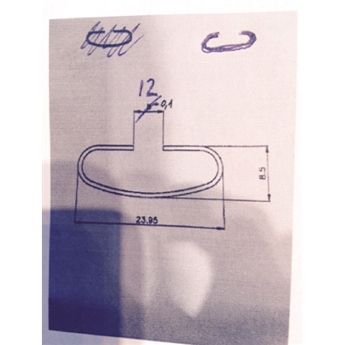

4. Profile Drawing

Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with 25m/min Speed

5. Loading Pics
Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with 25m/min Speed

Servo Fly Cutting Curtain Rail Cold Roll Forming Machine with 25m/min Speed

6. Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
