No Girder Arch Roll Forming Equipment , 18 Station 30kw Roof Roll Forming Machine
Machine Description
The no girder arch roof roll forming machine is designed and built to produce large span steel sheet for
roofing panel. It is comprised of mechnical expansion decoiler, roll forming machine unit, hydraulic mould
cutting device, curving panel machine unit, PLC control system, hydraulic system, run-out tables for
straight and curve panels and all other accessories. Customer can choose mobile truck as foundation for
flexible use.
Technical Parameter
1. material width: 914mm
2. effective width: 610mm
3. roller stations: about 18 stations
4. roller material: 45# steel, chrome plated
5. main shaft material: 45# steel
6. main power: 30Kw
7. hydraulic station power: 4Kw
8. hydraulic pressure: 12Mpa
9. control system: PLC Panasonic
10. machine size: 8500mm x1400mm x1200mm
11. cutting blade material: Gr12Mov
12. thickness: 0.4-1.5mm
13. way of drive: single row of chain: 1.5.inch
Machine Component
| 5 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set |
| Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 2 units |
| Arch machine | 1 unit |
| Sew machine | 1 unit |
| Portable wheels | 2 unit |
Main Fetures & Components of the Machine
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape- steel structure and process as a whole after welding, it has the ability of strong loading and stable operation when running the machine.
2. All the components of the machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It's very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.

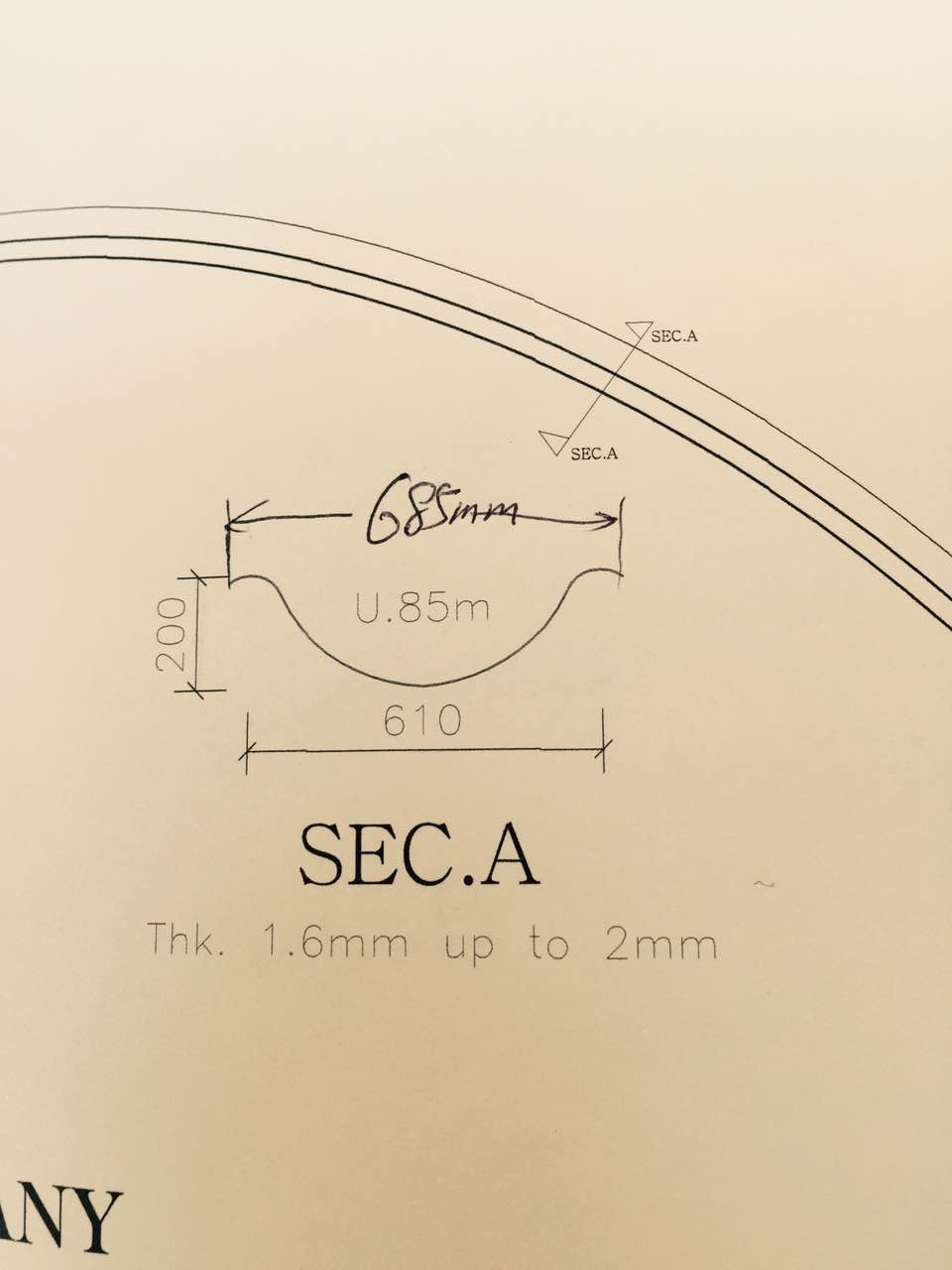

Profiles
Forming Machine Pictures
