High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure

Brand Name : Sussman

Model Number : SM-GR

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C, D/P, Western Union, MoneyGram

Supply Ability : 10 sets per months

Delivery Time : 75days after deposit

Packaging Details : Standard packing

Material Thickness : 2-4mm

Forming Speed : max 25 m/min

Main Motor Power : 22Kw

Forming Stations : 15 stations

Hydraulic power : 7.5Kw

Knife material : Cr12,quenched 58°-62°

Main shaft dia : 120mm, material: 45﹟forge steel

Roller material : GCR15 quenched 58°-62°,chromed

Contact Now

High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure



Specifications



1. Low noise, easy operate
2. PLC control system, full automatic
3. Adopt after-cutting
4. Good after-service


Guardrail Roll Technical Parameter





Model No.

W Beam Guardrail Roll Forming Machine

Max coil thickness

2.0-4.0mm

Coli material

steel

The bearing capacity of hydraulic decoiler

5 tons

shaft material

45#steel

Out diameter

100mm

numbers of forming steps

15 stations

transmission

chain transmission

Forming speed

0-25m/min

main motor power

22 kw

voltage

380V 50HZ Three-phase

dimension

25m *1.5m*1.7m

cutting

Hydraulic cutting

blade material

Cr12 steel with quenched treated 58-62°c

control system

PLC(Delta)

weight

about 22 tons




Guardrail Roll Main Components





     S.N

   Equipment name


   Quantity
      1.

    3T hydraulic un-coiler


    1 set
      2.

    Feeding and leveling device


    1 set
      5.     Main roll forming machine      1 set
      6.

    Hydraulic station


    1 set
      7.

    Control system (including control box)


    1 set
      8.

    Out tables


    2 sets
      9.

    Punching Device


    2 sets






















Working Flow of Guardrail Roll

Decoiler----Feeding and Leveling---Punching---Roll forming---Cutting---Run out tables



Profiles of Guardrail Roll


High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic PressureHigh Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure

 High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure

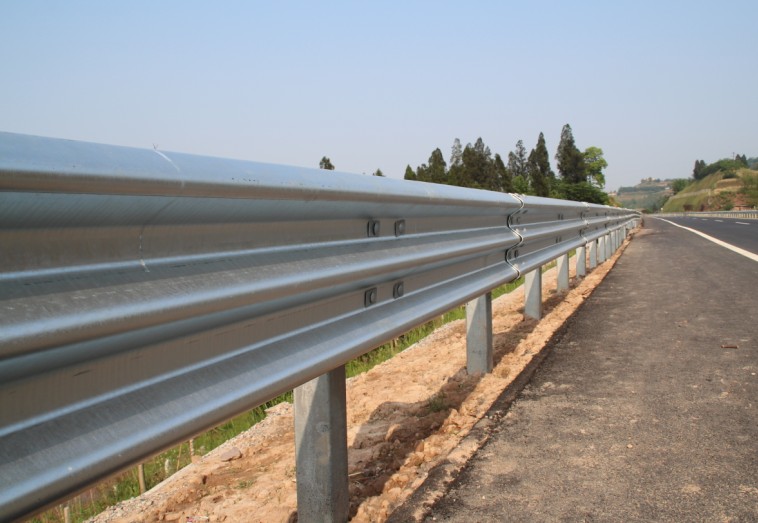

 Application



High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure




Customes Visiting
 High Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic PressureHigh Speed 0-25m/min 500mm Coil Width W Beam Guardrail Roll Forming Machine 10mpa Hydraulic Pressure


Loading



Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery: within 75 working days after receipt of deposit



We will attend PERU ARCON Expo
Time:4th-7th,July,2018
Address: Lima Jokey Plaza International Exhibition Center
