2-4mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic

Name: 24mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic
Brand: sussman
Price: 1 USD

Buy cheap 2-4mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic product

Brand Name : sussman

Model Number : SS-GR

Certification : CE SGS ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60-90 days

Packaging Details : film+steel

Name : guardrails roll forming machine

Material : Galvanized steel sheet

material thickness : 2-4mm

Forming stations : 15 stations

Roller material : 45# Steel with quenching 60mm shaft

Dirve system : gearbox

power supply : 380V, 50Hz, 3Phase

Forming speed : 5-20m/min

Machine weight : about 5 tons

Main Motor Power : 22 KW

Contact Now

2-4mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic

Technical Parameter

1. Steel Sheet Thickness: 2-4mm (depend on requirement )

2. Hydraulic power: 7.5Kw

3. Transmission way: gear box

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 Ton hydraulic decoiler

6. Forming Speed: 10-20m/min(not including punching time)

7. Roller Groups: about 15 stations main roller

8. Roller Material: GCr15, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 22 Kw

Main Components

Price (FOB shanghai)	5 ton hydraulic Un-coiler	1 set
	Main roll forming machine	1 set
	Cutting	1set
	Punching	2 sets
	Control box	1 unit
	Hydraulic station	1 unit
	Out table	2 units

Working Flow of Roll Forming Machine

Decoiler ---- Feeding --- Levelling---Punching--- Roll Forming ---- Cutting ---- Run out table

2-4mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic

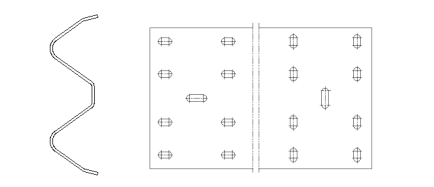

Profile of product
