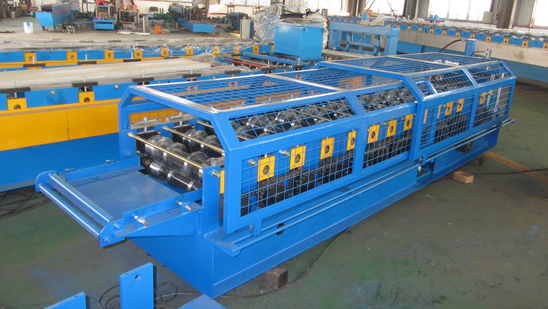

Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed

Name: Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed
Brand: Sussman
Price: 1 USD

Buy cheap Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed product

Brand Name : Sussman

Model Number : RF-RC

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Delivery Time : 50 days after deposit

Packaging Details : Film and steel

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Material : 0.3-0.8mm for Color coated steel

Forming speed : 5-10m/min

Roller stations : 16 stations

Way of Drive : 1.2 inch single chain

Main motor power : 7.5Kw

Warrenty : 1 year

Machine size : 5000mm*500mm*800mm

Machine weight : 4 ton

Contact Now

Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed

Machine Components

5 ton passive de-coiler	1 set
Main roll forming machine with wheels	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Out table	2 units
Curving machine	1 unit
Seaming machine	1 unit

Technical Parameter

1. material thickness: 0.3-0.8mm for color coated steel

2. forming speed: 5-10m/min

3. roller stations: 16 stations

4. roller material: 45# steel , coated with chrome, heat treatment, HRC58-62

5. shaft diameter: 70mm

6. main motor power: 5.5Kw

7. hydraulic cutting power: 3Kw

8. cutting blade material: Cr12

Advantage for Ridge Cap

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed

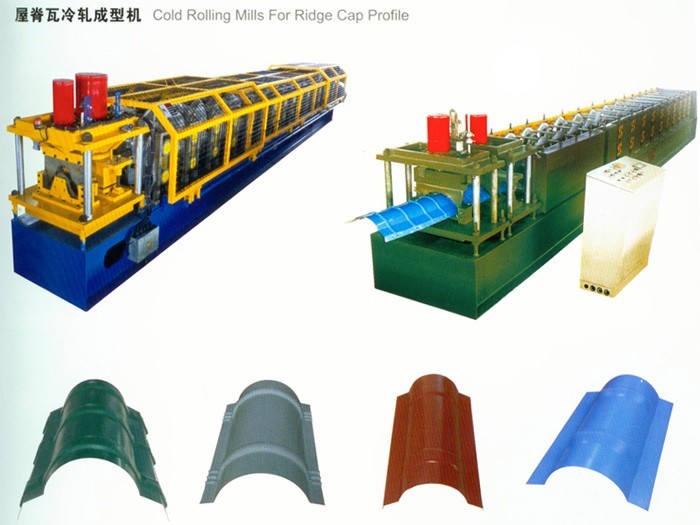

Profiles of Ridge Cap

Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed

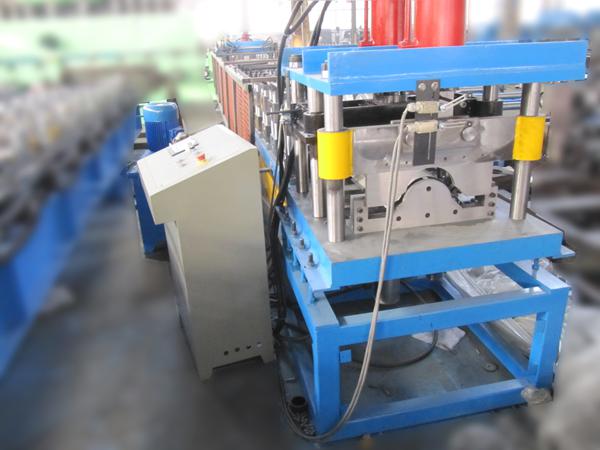

Machine pictures

Colour sheet Big Round Ridge Capping Cold Roll Forming Machine Panasonic PLC Control High Speed

Samples
