0.8 Mm-3 Mm X 1250 Mm Simple Hydraulic Slitting Line With Speed 0-40m/Min

(0.8-3)x1250 Simple Hydraulic Slitting Line Slitting Speed 0-40m/min

1. Technical Parameter

1. Material of processible coiled plate: galvanized steel coils, etc

2. Thickness of coiled plate 0.8—3mm;

 3.  Width of coiled plate 1250mm;

 4.  Precision of slitting width tolerance: ±0. 5mm;

 5.  Slitting speed:  0—40m/min;

 6.  Loading capacity of de-coiler machine (feeding machine): 8T;

 7.  Coil I.D:  508mm;

 8.  Coil O.D:  1400mm;

 9.  Knife pivot diameter of slitting blade: Ф200mm; material 40Cr;

 10. Slitting blade: Ф180×Ф320×15;

 11. Material of slitting blade:  6CrW2Si;

 12. Hardness of blade: HRC60°—62°;

 13. Recoiler I.D: 508mm;

 14. Power: 380V three-phase electricity: 50Hz;

2. Composed Device

1. Hydraulic entry coil car

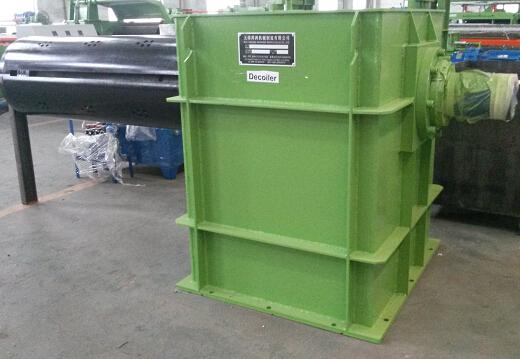

2. Hydraulic de-coiler

3. Hydraulic Pinch And Press Device

4. Head Cutting Machine

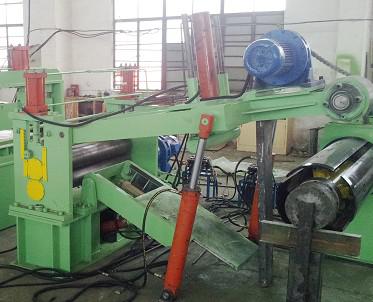

5. Slitting Machine

6. Scrap Winder

7. Pit

8. Tension Stand

9. Hydraulic recoiler

10. Hydraulic unload car
