0.3-1.5mm Thick Carbon Steel Slitting Lines Professional Semi - Auto Speed 0-100 m/min

Name: 0315mm Thick Carbon Steel Slitting Lines Professional Semi Auto Speed 0100 mmin
Brand: Sussman
Price: 1 USD

Buy cheap 0.3-1.5mm Thick Carbon Steel Slitting Lines Professional Semi - Auto Speed 0-100 m/min product

Brand Name : Sussman

Model Number : SS-CTLL

Certification : CE

Place of Origin : WUXI, CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 75-85 days after deposit

Packaging Details : standard packing

Material Thickness : 1-3mm

Slitting Speed : 0-40m/min

Coil Width : 1600

Coil I.D : 480-520

Coil O.D : ≤1600

Coil weight : 12 Ton

Slitting blade shaft : 200

Material of blade : 6CrW2Si

Contact Now

1.5mm Thick Carbon Steel Sheet Coil Slitting Machine Professional Semi-Auto Line Speed 0-100 m/min

Advantage for Cut-to-length Line

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Technical Parameter

_{1. Appail Material: Carbon steel coil, galvanized steel coil}

_{2. Material Quality: First class steel coils of the international standard}

_{3. Thickness: 1-3mm}

_{4. Coiler Width: Max 1250mm}

_{5. Slitting Speed: 10 - 40m/min}

_{6. Loading Capacity of Decoiler: 5 ton hydraulic decoiler}

_{7. Tensile Strength: 450Mpa}

_{8. Tolerance: +-1mm}

_{9. Power: 380V/50HZ/3PH}

_{10. Coil ID: φ508mm}

_{11. Coil OD: φ1600mm}

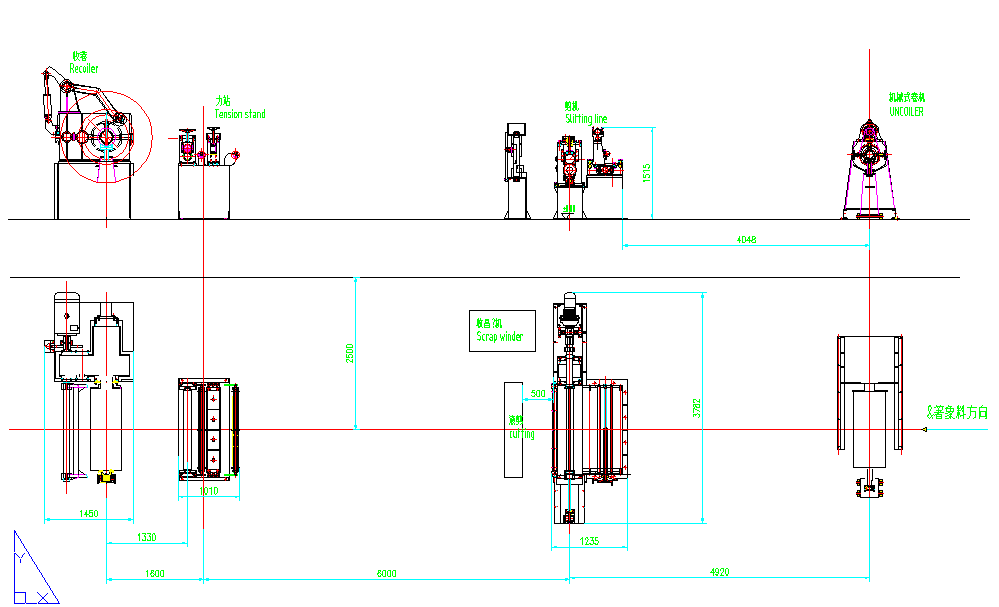

Cut-to-length Line Machine Components

S.N	Equipment name	Quantity
1.	5 Ton hydraulic decoiler	1 set
2.	Hydraulic pinch and press and pre-leveling device	1 set
3.	Slitting machine	1 set
4.	Scrap winder	1 set
5.	Tension stand	1 set
6.	Hydraulic recoiler	1 set
7.	Electrical control system	1 set

Working Flow of Cut-to-length Line

Decoiler---Leveling---Cutting---Recoiler

0.3-1.5mm Thick Carbon Steel Slitting Lines Professional Semi - Auto Speed 0-100 m/min

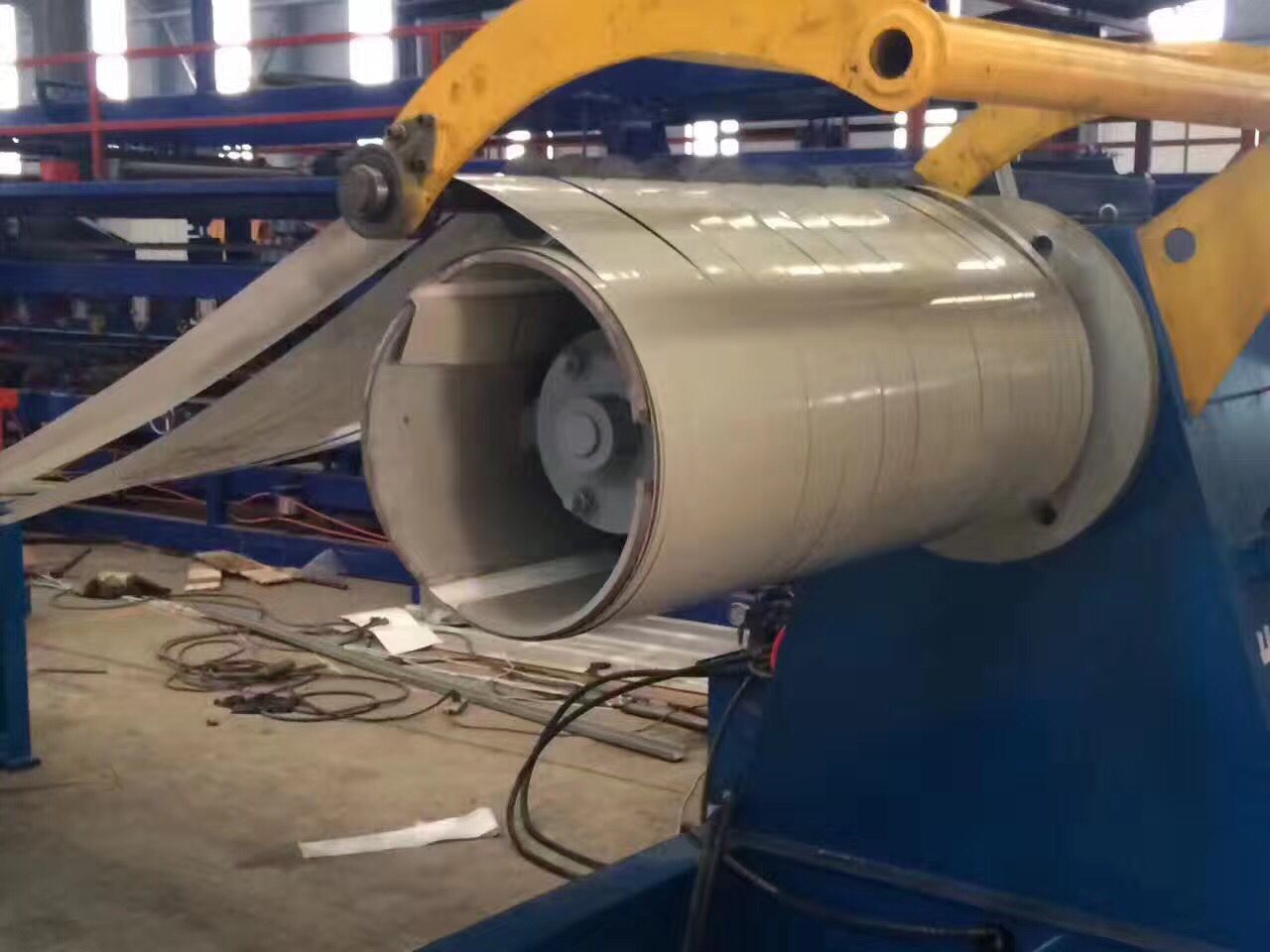

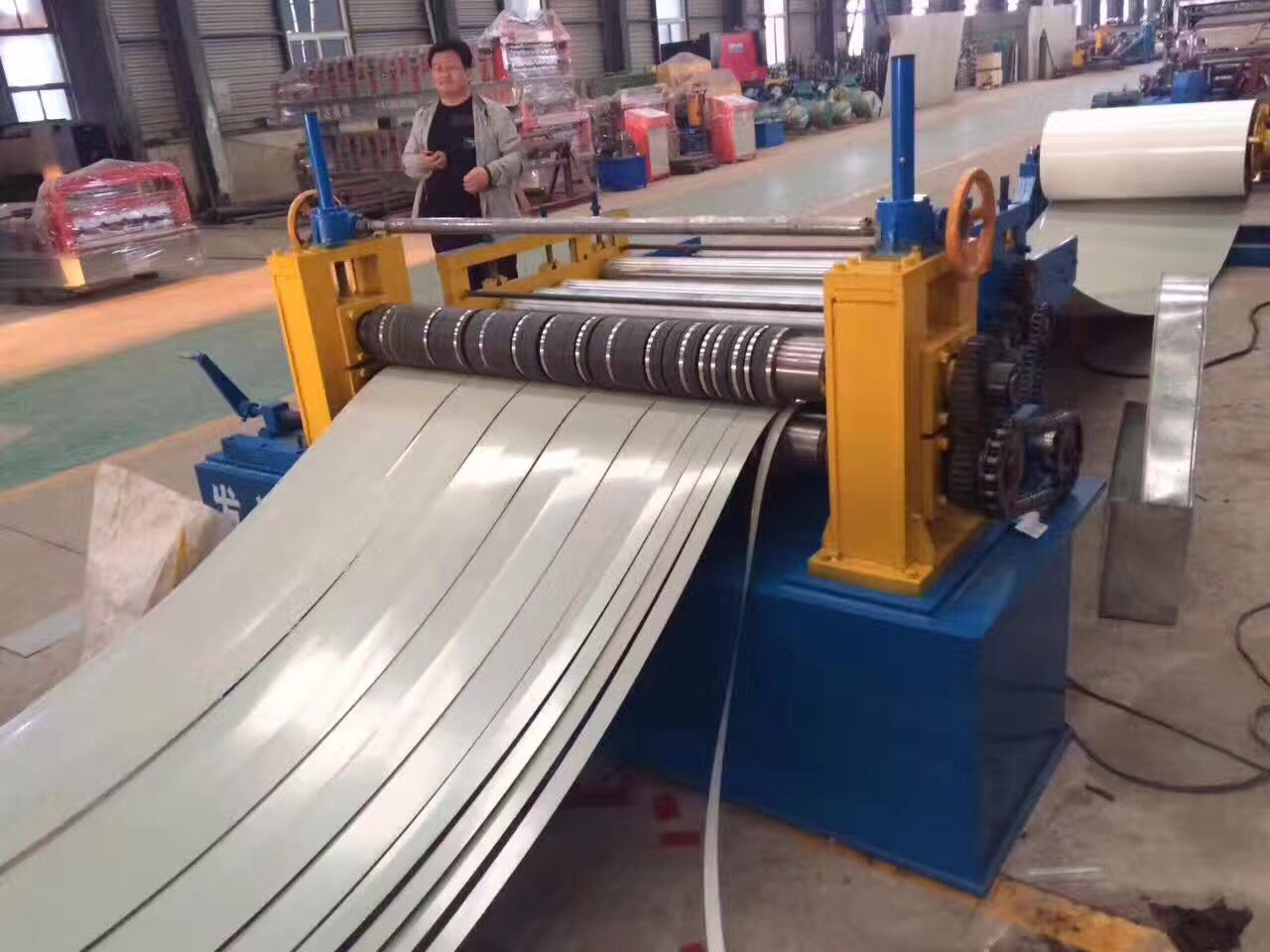

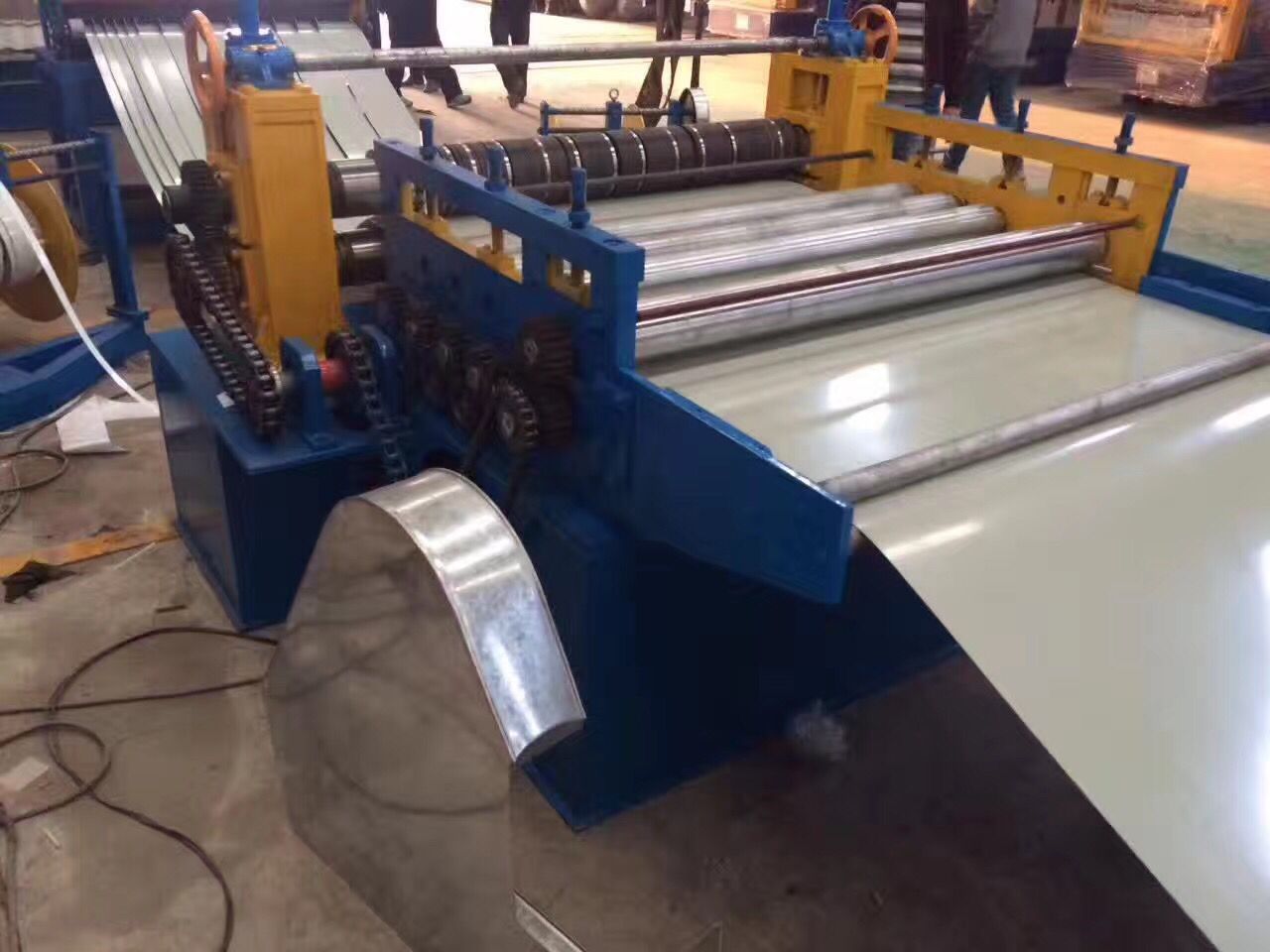

Machine pictures
