4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System

Name: 4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System
Brand: Sussman
Price: 1 USD

Buy cheap 4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System product

Brand Name : Sussman

Model Number : SH-RC

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 55-65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.3-0.8mm

Forming Speed : 5-10m/min

Main Motor Power : 5.5Kw

Forming Stations : 16 stations

Hydraulic power : 4Kw

Material : Cr12

Contact Now

4Kw Hydraulic Power Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System

Ridge Cap Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: 1.2 inch single chain
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton manual decoiler
6. Forming Speed: 5-10m/min (not include cutting and punching stop time)
7. Roller Groups: 16 stations
8. Roller Material: GCr15 grade steel, quenching treatment
9. Material: galvanized steel or color-coated steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 5.5 Kw

Ridge Cap Main Components

S.N	Equipment name	Quantity
1.	3T manual un-coiler	1 set
2.	Feeding and leveling device	1 set
5.	Main roll forming machine 16 stations drived by single chain	1 set
6.	Hydraulic station	1 set
7.	Control system (including control box)	1 set
8.	Out tables	2 sets
9.	Spare parts	1 package

Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap

Advantage for Ridge Cap

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System

Profiles of Ridge Cap

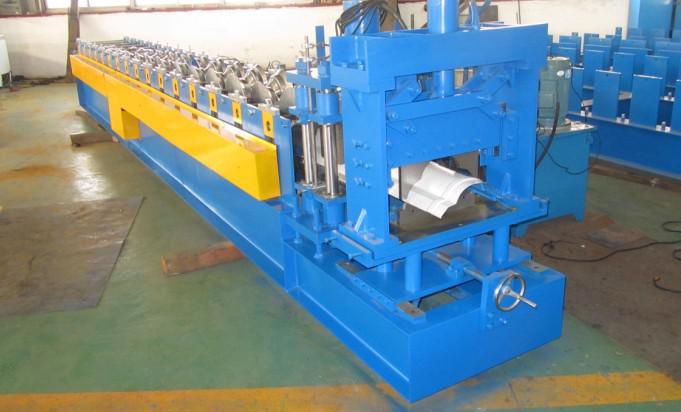

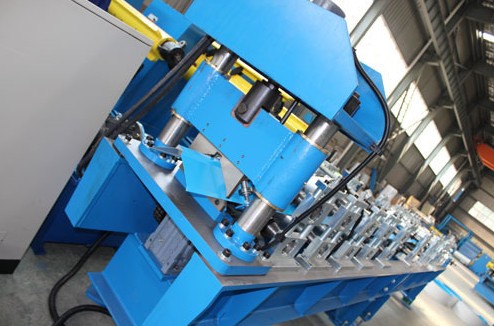

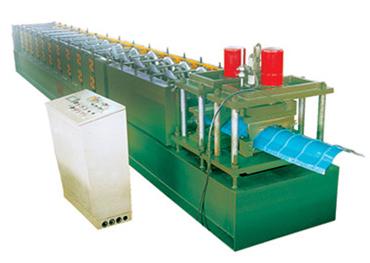

Machine pictures

4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System

Product Tags:

Corrugated Sheet Roll Forming Machine

standing seam roll former

4Kw Cr12 Quenching Treatment Blad Ridge Cap Roll Forming Machine PLC Control System Images
