Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

Name: Single Chain Transmission 75Kw Door Frame Roll Forming Machine 380V 50HZ
Brand: Sussman
Price: 1 USD

Buy cheap Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ product

Brand Name : Sussman

Model Number : SM-DF

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60days after deposit

Packaging Details : Standard packing

Material : Galvanized steel

Material thickness : 1.0mm-2.5mm

Forming stations : 18 stations

Forming speed : 8-12m/min

Punching way : hydraulic punching with models

Transimission way : chain drive

Main motor power : 7.5KW

Power supply : 380V 50HZ

Contact Now

Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

Door Frame Technical Parameter

Name	Description
Steel Sheet Thickness	1.0-2.5mm (depend on requirement )
Transmission material	45# steel, high frequency quenching
Transmission way	single chain
Material of blad	Cr12, quenching treatment
Capacity of Decoiler	3 ton passive decoiler
Forming Speed	12-15m/min
Roller Groups	about 18 stations
Roller Material	GCr15, high frequency quenching treatment, HRC58-62
Feeding material	galvanized steel or black steel
Principal Axis	45# high grade steel
Main motor power	7.5 Kw
Hydraulic power	5.5Kw

Door Frame Main Components

S.N	Equipment name	Quantity
1.	3T passive un-coiler	1 set
2.	Main roll forming machine	1 set
3.	Hydraulic cutting	1 set
4.	Control system (including control box)	1 set
5.	Out tables	2 sets

Advantage for Door Frame

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.

8. Long life: Ensure you our produce machine’s lifetime more than 15 years.

Working Flow of Door Frame

Decoiler----Feeding---Roll forming---Cutting---Run out tables

Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

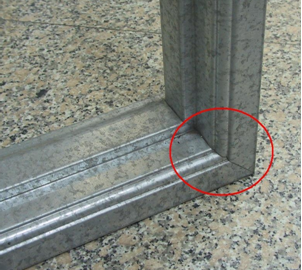

Profiles of Door Frame

Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ
