5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : USD24500-USD26500 Per set

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material Thickness : 0.6mm Stainless Steel

Rolling Speed : About 30m/min line speed

Roller Stations : About 18 stations

Main Motor Power : 5.5 kw motor

hydraulic station Power : 4 kw

Servo motor : 1.8kw Delta

Control System : PLC control system

Way Of Drive : 1 inch single chain

Contact Now

5.5KW Hydraulic Servo Following Cutting U Channel Glass Guide Rail Roll Forming Machine



Technical Parameter





  Items Specifications
Material of coil Material Thickness 0.6mm Stainless Steel
Forming system Rolling Speed About 30m/min line speed
  Roller Stations About 18 stations
  Roller Material

Gcr15 Steel with quenching 60mm shaft


  Maim Motor Power 5.5 kw motor
  hydraulic station Power 4 kw

Cutting

system

 Material Of Cutting CR12 with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Servo motor 1.8kw Delta
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require
  Control System PLC control system
  Weight About 3.5 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 5500mm* Width 600mm* Height 1000m





Flow Chart


Decoiler—Rollforming—HydraulicServo followingCutting—Products collecting



5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine



Machine List

Machine list 3 ton passive de-coiler 1 set
  Main roll forming machine 1 set
  PLC Control box 1 unit
  Hydraulic station 1 unit
  Out table 2 units
  Hydraulic Servo following cutting 1 unit
  Safety cover 1 unit




Profile Drawing

 5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine


Machine Photo



5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

Spare Parts

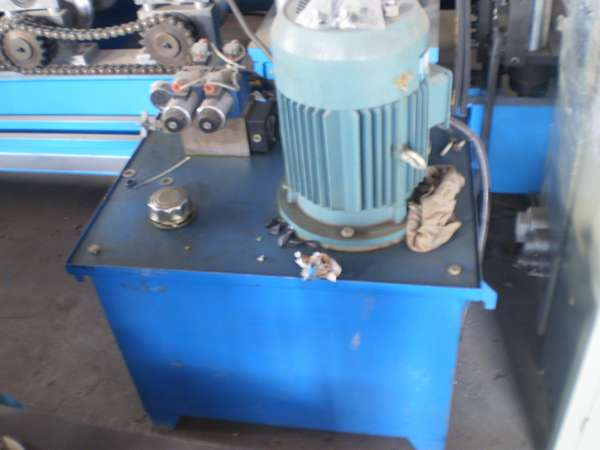

Hydraulic station

5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

Out table

5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine

Cutting device

5.5KW Hydraulic Servo Following Cutting Stainless Steel Glass Guardrail Forming Machine
