Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated

Name: Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated
Brand: SUSSMAN
Price: 1 USD

Buy cheap Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated product

Brand Name : SUSSMAN

Model Number : SM-RH

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Steel wire and plastic film

Name : Ridge Hip Roll Forming Machine

Material : GI,PPGI

Material thickness : 0.3-0.6mm

Rolling Speed : 5-10m/min

Drive system : by 1 inc chain

Tolerance : +-1.5mm

Material Of Cutting : CR12 with quench treatment

Contact Now

Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated

Technical Parameter

Item NO	Description	Offered specification
1	Product Line speed	5-10m/min(not include cutting )
2	Suitable material thickness	0.3-0.6mm
3	Raw material	Color coated steel coil
4	Material width	300mm-500mm
5	Decoiler	3 Ton passive decoiler
6	Levelling device	7 roller levelling including 3 top rollers and 4 bottom rollers
7	Roller stations	18 stations
8	Roller material	Bearing steel, quenching treatment
9	Shaft diameter	Φ75mm ,material is 45# forge steel
10	Transmission	By chain one inch 20A single chain
11	Material of chain	45# forged steel with frequency quenching, 12A
12	Cutting system	Hydraulic cutting blade cr12mov with quench HRC58-62°
13	Main motor power	5.5kw
14	Motor power of hydraulic station	4kw
15	Hydraulic station pressure	12Mpa
16	Tolerance	6m+-1.5mm
17	Machine Frame	H Beam Steel

Main Components

S.N	Equipment name	Quantity
1.	3T manual un-coiler	1 set
2.	Feeding and leveling device	1 set
5.	Main roll forming machine 16 stations drived by single chain	1 set
6.	Hydraulic station	1 set
7.	Control system (including control box)	1 set
8.	Out tables	2 sets
9.	Spare parts	1 package

Working Flow of Roll Forming Machine

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated

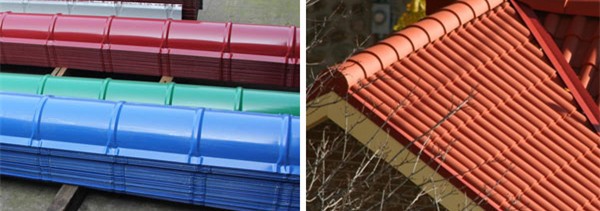

Profile of product

Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated

Photo Gallery

Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated

Loading pictures

Fully Automation Ridge Hip Roll Forming Equipment CE ISO Certificated
