Heavy Duty 1.5-3.0mm G.I Steel Perforated Cable Tray Roll Former High Speed Fully Automatic

Name: Heavy Duty 1530mm GI Steel Perforated Cable Tray Roll Former High Speed Fully Automatic
Brand: Sussman
Price: 1 USD

Buy cheap Heavy Duty 1.5-3.0mm G.I Steel Perforated Cable Tray Roll Former High Speed Fully Automatic product

Brand Name : Sussman

Model Number : SM-CT

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60-90 days

Packaging Details : Film and Steel

Name : Perforated Cable Tray Roll Forming Machine

material thickness : 1.5-3.0mm

Material : 100mm-800mm galvanize steel

main motor power : 22KW

Forming Speed : 2-4m/min

Roller stations : 20 stations

power supply : 380v 50hz

Contact Now

Heavy Duty 1.5-3.0mm G.I Steel Perforated Cable Tray Roll Former High Speed Fully Automatic

Description:

A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.

Technical Data of cable tray making machine

Item NO	Description	specification
1	Line speed	0-12m/min
2	Thickness of material	1.5-3.0mm
3	Raw material	100mm-800mm galvanize steel Material yield strength: ≤G250Mpa
4	Roller stations	about 20 stations
5	Roller material	GCr15: model steel, HRC50-54
6	Shaft diameter	Φ90mm ,material is 45# forge steel
7	Transmission	Gearbox 20 groups
8	Total Motor Power	35kw
9	Main Motor Power	22kw
10	Hydraulic Motor Power	7.5kw
11	Hydraulic Cutting power	5kw
12	Material of cutting	Cr12Mov with quench HRC58-62°
13	Power Supply	380V 50HZ 3phase (customized)
14	Tolerance	less than ±0.5mm
15	Dimension	16800mm× 2500mm × 1200mm
16	Weight	About 20 ton
17	Frame	H beam

Main Components

Item Name:	Cable mounting system Roll Forming Line
Material:	Galvanize steel
Line Speed	4-6m/min
Material Coil width	Per the design of product 100mm-800mm
Power	380V 3phase or design according to client's request
Gram Weight:	Around 20 tons
Delivery time:	100~120days
MOQ:	1 Set
Warranty	1 year 12 months

Working Flow of Roll Forming line

Uncoiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table

Heavy Duty 1.5-3.0mm G.I Steel Perforated Cable Tray Roll Former High Speed Fully Automatic

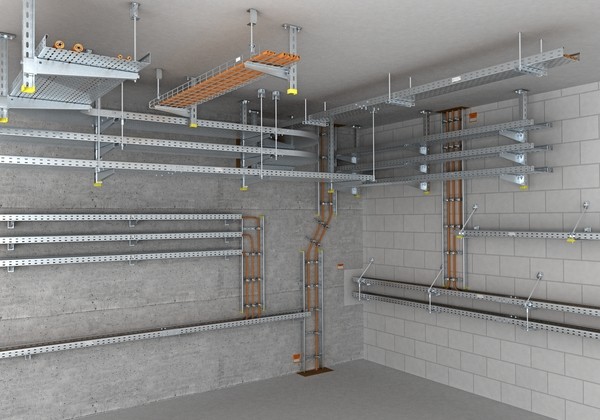

Application

Other profile we make

Product Tags:

cable tray machine

plate rolling machine

Heavy Duty 1.5-3.0mm G.I Steel Perforated Cable Tray Roll Former High Speed Fully Automatic Images
