2.0mm U Profile Channel Roll Forming Machine Galvanized Steel With Perforated Holes

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : SM-PM

Certification : CE/ISO9001

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Processing thickness : 1.5-2.0MM Galvanized steel G300Mpa

Roller material : Gcr15 steel with quenching

Shaft diameter : 75mm

Main motor power : 11kw

Drives method : Gearbox driven

Speed : about 8-12m/min

Roller numbers : 18 stations

Contact Now

Galvanized Steel 2.0mm Thickness U Profile Channe Roll Forming Machine With Perforated Holes





1. U Post Machine Technical Data



Item

Specification



Material

Type

PPGI steel coils& Galvanized steel coils

Thickness

1.5 mm-2.0mm

Yield strength

G300-350Mpa

Roller material

High grade Gcr15 forged steel, with digital-controlled procession

Forming speed

Max. About 20m/min. (excluding the cutting time)

Speed adjusting mode

AC Frequency

Cutting mode

Hydraulic cutting

Cutter material

Cr12 MOV with quenched treatment

Length measurement

Encoder

Control mode

Mitsubishi PLC and transducer (Japan)

Operating mode

Touch screen with touch screen

Main motor power

11KW

Hydraulic station motor power

5.5 KW



2. C post machine main components



Decoiler→Feeding material into machine →punching device→Roll forming machine →Hydraulic cutting →Finished Products


Machine name Quantity
Automatic decoiler 1 set
Feeding with guide 1 set
Roll forming machine 1 set
Hydrualic punching device 1 set
Hydraulic cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package





3. U Profile Photo

2.0mm U Profile Channel Roll Forming Machine Galvanized Steel With Perforated Holes







4. U Post Machine More details

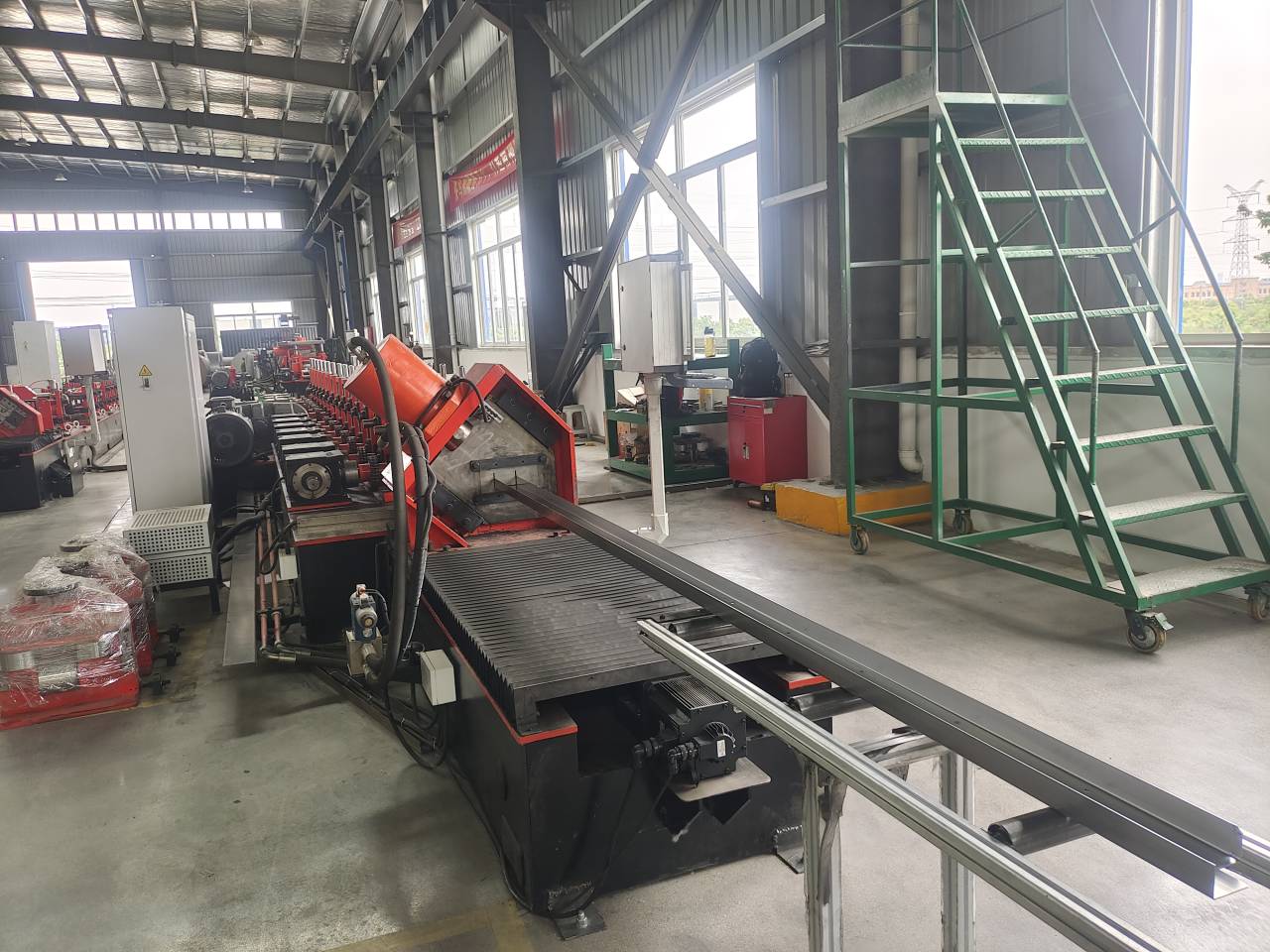

The C post roll forming line includes automatic decoiler, hydraulic punching, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter for finished products.





This line adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically.

2.0mm U Profile Channel Roll Forming Machine Galvanized Steel With Perforated Holes
