7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation

Name: 75 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
Brand: Sussman
Price: 39000 USD

Buy cheap 7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation product

Brand Name : Sussman

Model Number : Tile capping 01

Certification : ISO 9001 SGS

Place of Origin : Wuxi,China

MOQ : 1

Price : USD 39000

Payment Terms : T/T

Supply Ability : 5 Sets per month

Delivery Time : 90 days

Packaging Details : Naked packing

Thickness : 0.3mm-0.8mm

Rolling Speed : 5-10 meters/min

Roller Station : 18 Stations

Motor Power : 7.5KW

Contact Now

7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation

The Main Description:

	Items	Specifications
Material of coil	Material Thickness	0.3—0.8mm
	Un Coiler	3 tons manual
Forming system	Rolling Speed	5-10m/min
	Roller Stations	18 stations
	Roller material	45# steel, coated with chrome
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	7.5kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy customer’s require
	Control System	PLC with touch screen
	Way Of Drive	1.2 inch single chain
Packing information	Color of the machine	blue

Machine List:

3 ton passive de-coiler	1 set
Hydraulic Punching device	1 set
Main roll forming machine	1 set
Punching press mould	1 set
Control box	1 unit
Hydraulic station	1 unit
Out table	1 unit

Working Flow:

Uncoiling—Feeding—Punching— Roll forming—Cutting—Products collecting

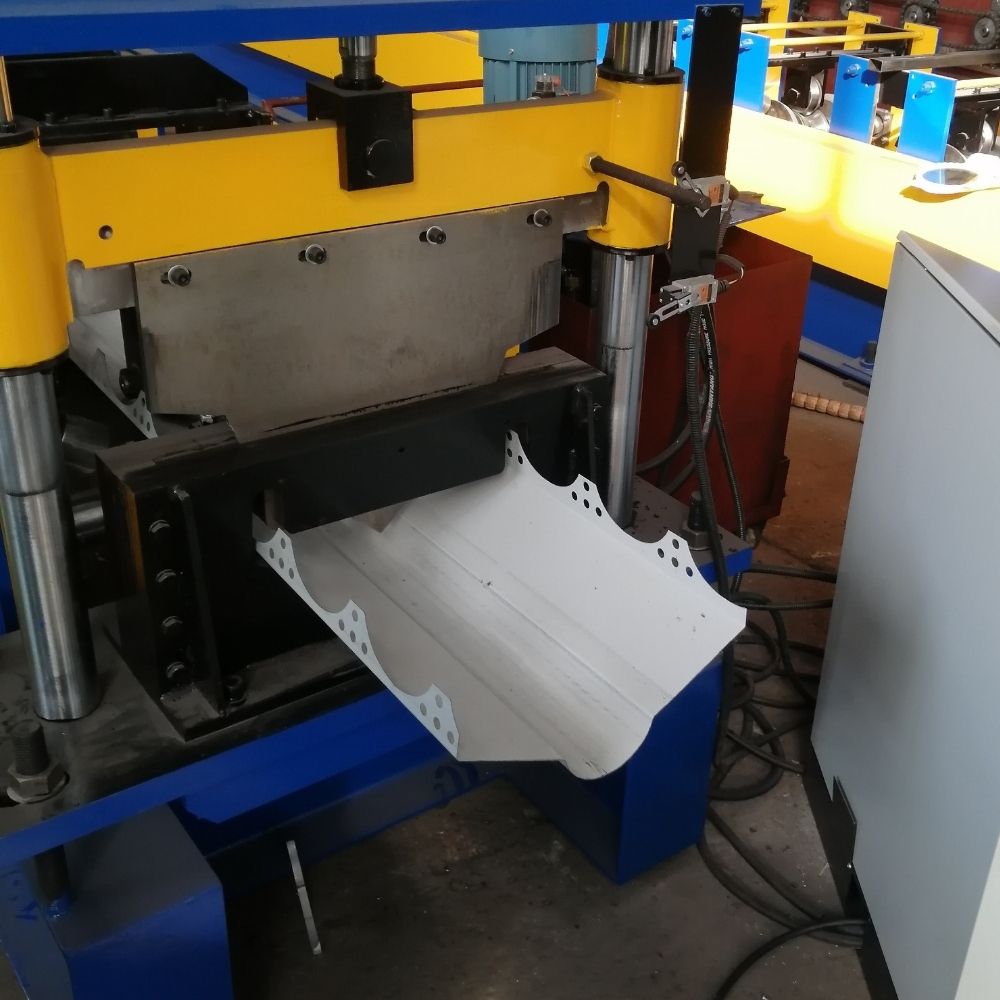

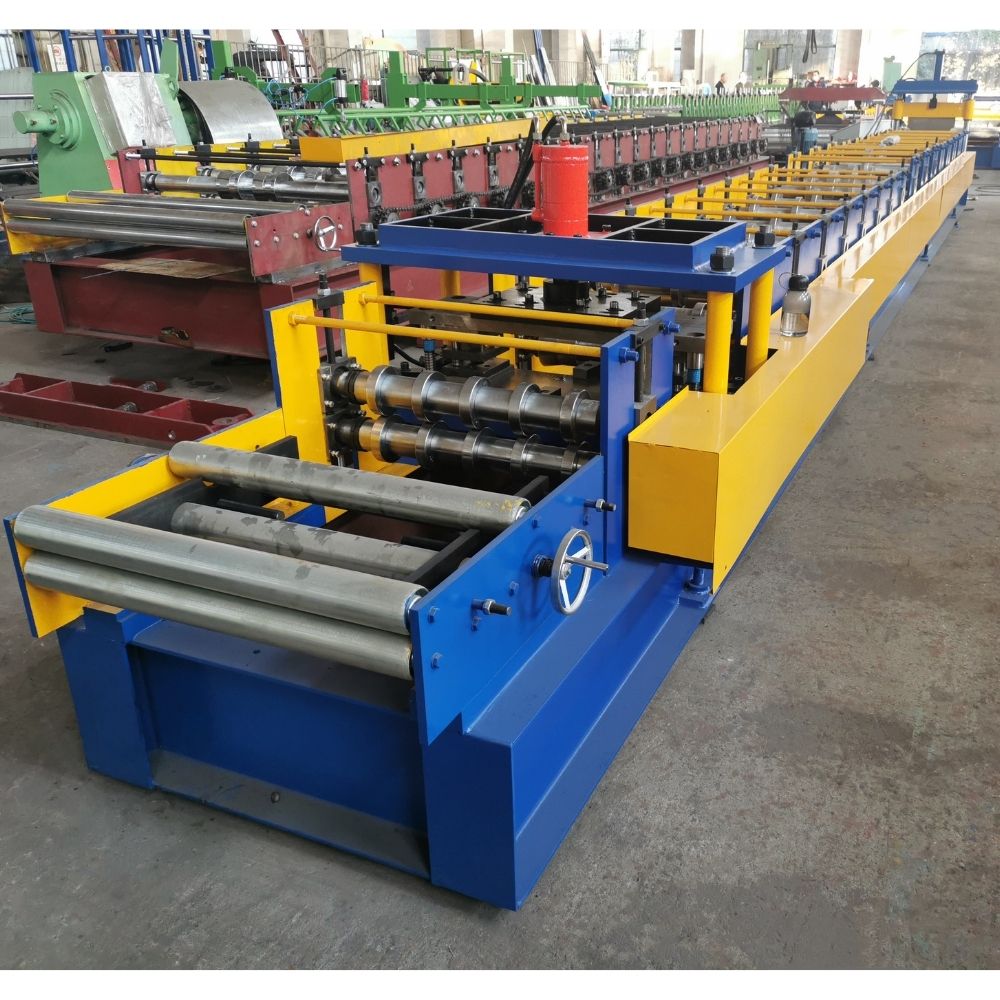

Machine Pictures:

7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation

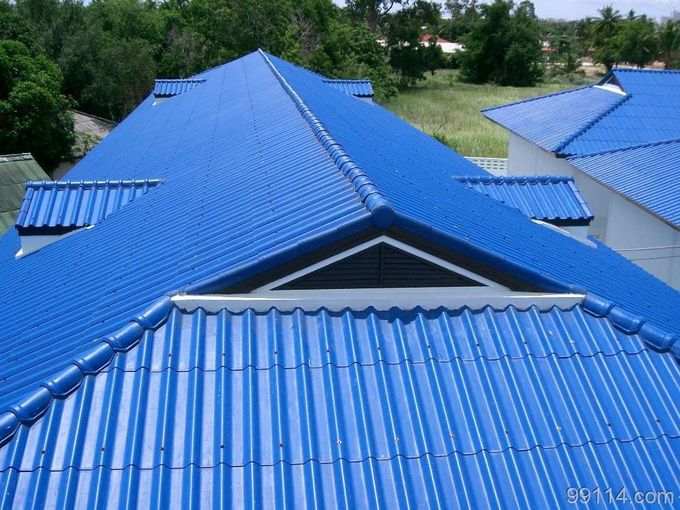

Application:

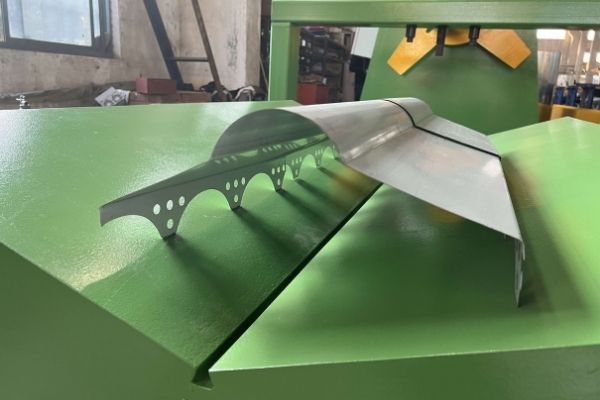

Finished Products:
