VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

Name: VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching
Brand: SUSSMAN
Price: 1 USD

Buy cheap VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching product

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : CE

Place of Origin : WUXI CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 65-75 days after deposit

Packaging Details : standard packing

Main Motor Power : 7.5KW

Material Thickness : 1.0-1.5 mm Galvanized Coils

Rolling Stations : About 14 Stations

Way Of Drive : 1.2 inch chain

Cutting Power : 5.5 KW

Control System : PLC Control

Contact Now

Full Automatically VCD Fire Air Duct Damper Frame Roll Forming Machine with Punching

Fire Damper Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	1.0-1.5 mm galvanized coils
	Un Coiler	3 tons hydraulic
Servo feeding	Motor	Delta 1.8kw
Punching device	Punching	4 sets of punching die
Forming system	Forming Speed	About 2-3pieces/min
	Roller Stations	About 16 stations
	Roller Material	Gcr15 coated with chrome
	Maim Motor Power	7.5kw
	Motor cutting Power	5.5kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blades	1 set
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC Delta as list in the note
	Weight	About 8 tons
	Way Of Drive	1.2 inch chain
Machine size	mm	10000mm700mm1000mm

Fire Damper Main Components

S.N	Equipment name	Quantity
1.	5T passive un-coiler	1 set
2.	Main roll forming machine	1 set
3.	Hydraulic cutting	1 set
4.	Control system (including control box)	1 set
5.	Punching	2 sets

Working Flow of Fire Damper

Decoiler----Feeding---Roll forming---Cutting---Run out tables

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

Samples

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

Machine List:

1, 3 Tons Hydraulic Decoiler

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

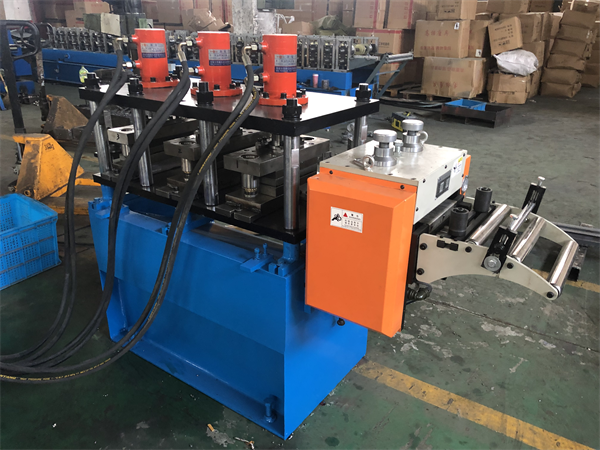

2, Hydraulic punching with servo feeder

3, Hydraulic Cutting

5, Control Box

6, Output table

Advantage for Fire Damper

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
