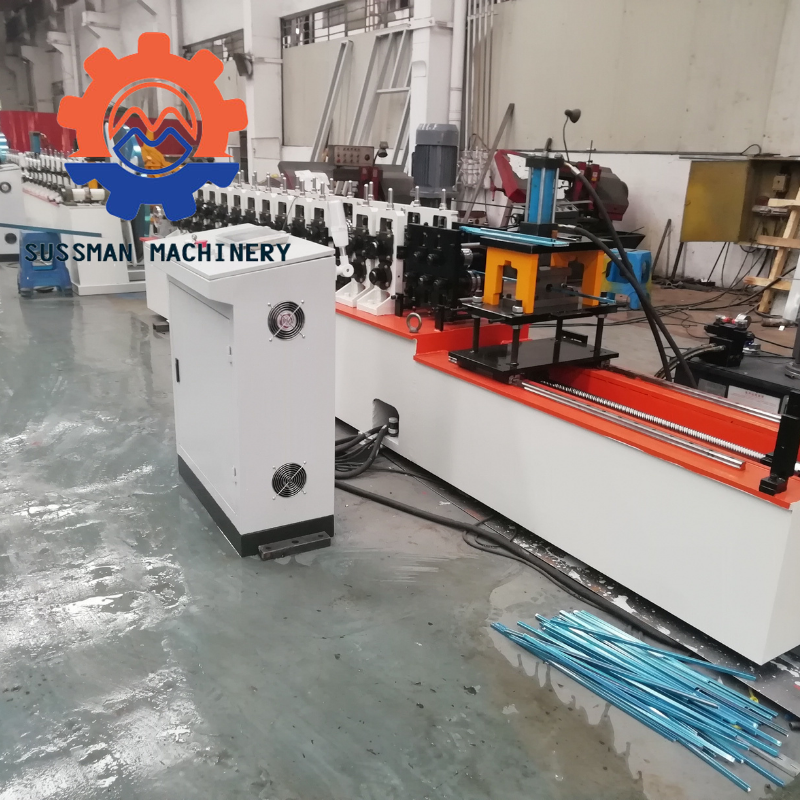

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine

Product Categories

Sussman Machinery(Wuxi) Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 06mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : SM-DR

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60days after deposit

Packaging Details : Standard packing

Material Thickness : 0.6 mm stainless steel

Forming Speed : 0-30 m/min

Forming Stations : 13 stations

Shaft material : 45# steel

Usage : glass door

Machine size : 6500*800*1000mm

Contact Now

0.6 Mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine With High Speed 30 M/Min

Door Rail Technical Parameter

Suitable steel plate	0.6mm stainless steel
Production speed	0.-30m/min
Roller stand	13 rows
Diameter	60mm
Main power	5.5kw
Pump power	4kw
Roller material	Carbon Steel 45#
Blade material	Cr12, qunched, Cr-plating size 0.05mm
Control system	PLC Delta
Main structure of the machine	300mm H-Beam

Door Rail Main Components

1.	3T passive un-coiler	1 set
2.	Feeding and leveling device	1 set
3	Main roll forming machine	1 set
4	Hydraulic cutting	1 set
5.	Control system (including control box)	1 set
6	Out tables	2 sets

Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming--- Non stop cutting---Run out tables

Profiles of Door Rail

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
