Bending Thickness 1.0 Mm Cnc Slitting Folding Machine Roof Sheet Bending Machine Bending Angle 125 Degree
Technical Parameter
1) Thickness: Max.1.0mm Aluminum, steel
2) Max. Bending length: 8000mm
3) Driven by Servo motor
4) Working length: 4000mm, 6000mm
5) Press clamp:7 units
6) Weight:About 5000 Kg
7) Motor for hydraulic station:11KW
8) Bending range:0-125 degree
9) Depth of throat:800 mm(Max. working width of material in clamp)
10) Act component of worktable: hydraulic double oil cylinder
11) Circle time: Max. bending limit take about 12 seconds
12) Outline dimension length×width×height:9395×1842×1375mm
Parameter of folding and slitting capability
| |
| | Main power | kW | 11 kW |
| Machine Weight | Tons | 5 tons |
| | | |
| | Bending Thickness | mm | 0.8-1.0mm
|
| Length | mm | 6m |
| Material Strength | | G300-G550 |
| | Bending degree | | 15º-125º |
| Tolerance of bending step
| | < 2 º |
| Control System | | PLC |
| Bending system
| Hydraulic system with proportional valves
Bending automatically follow the installed angles on touch-screen |
PLC Control System
1)System:Siemens PLC Control
2)Numerical control locating system:Siemens PLC Control
3)Operating table:Touch Screen
4)Angle programmer:Encoder test
5)Slitting control:Manual
Working Flow of Roll Forming Machine
Program ----- set workpiece ------ back fender locating ------ workpiece clamping ----- bending ----- loose workpiece ---- overturn ---- back fender locating ---- workpiece clamping ----- loose workpiece ---- unload
Profile we can make

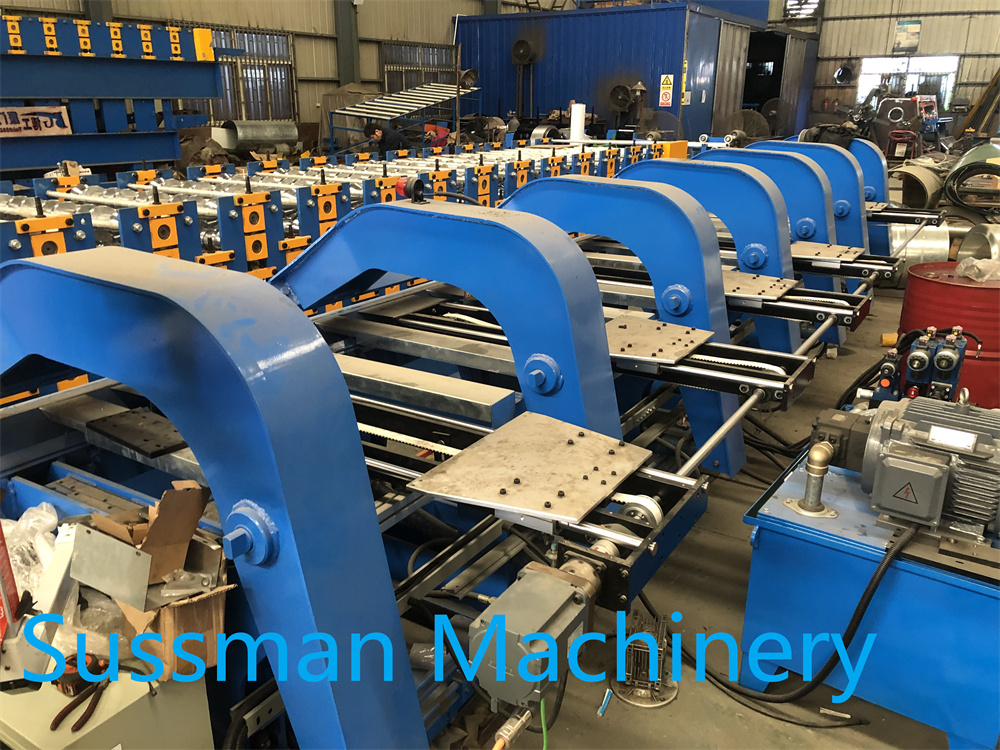

Machine Photo
