10-12 Meters/Min Garden Fence Rail Roll Forming Machine
The fence system includes fence post, fence rail track and fence panel. It needs 3 sets of roll forming machines.

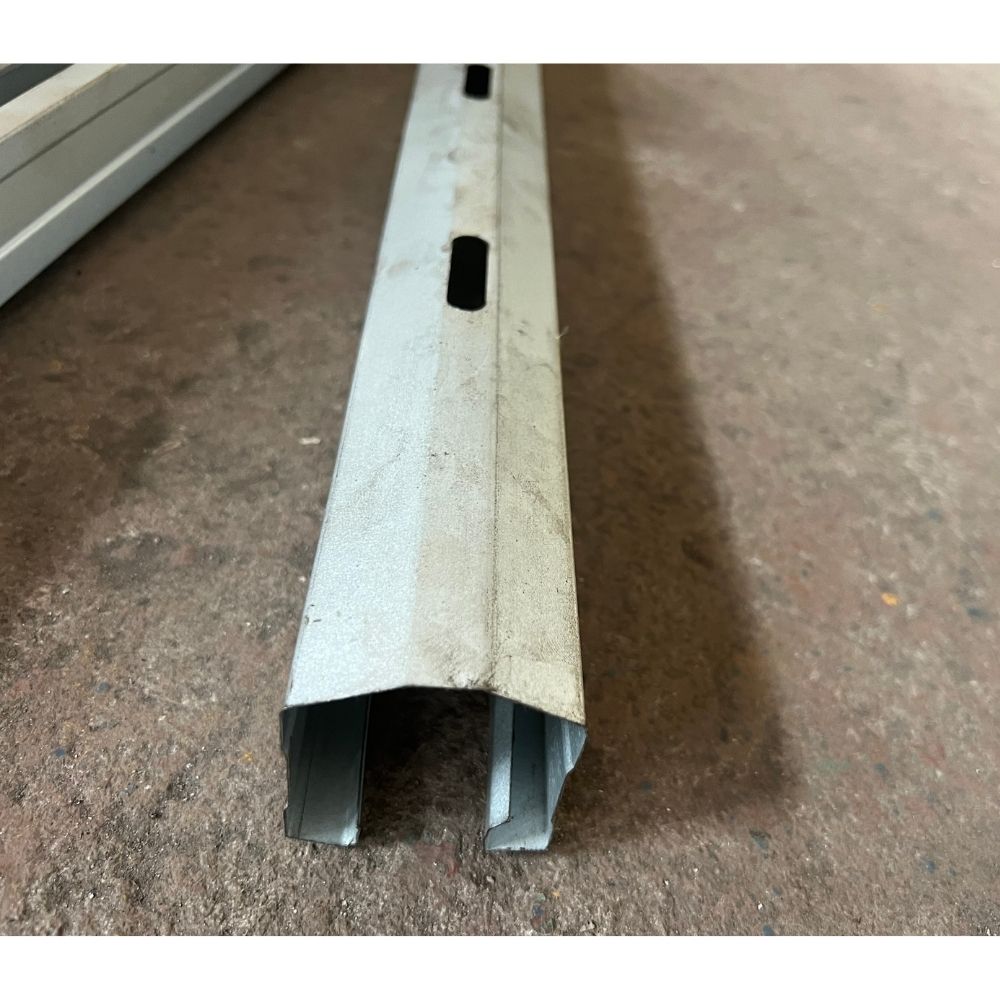

The fencing post roll forming machine is a complete production line for the manufacture of metal fencing profiles with notched edge or slotted holes for supporting on a metal fencing system. The fencing post and rail are basic elements of a fencing security system, widely used for house garden, school, factory, etc.
The fencing post consists:
Uncoiling-Feeding with guide-Hydraulic punching-Roll Forming-Cutting-Products Collecting
Technical Data
| | Items | Specifications |
| Material of coil | Material Thickness | 0.5-0.7mm galvanized, G235-350Mpa |
| | Un Coiler | 3 tons manual |
| Forming system | Rolling Speed | About 10-20 m/min |
| | Roller Stations | About 19 stations |
| | Roller Material | 45# Steel with quenching 60mm shaft |
| | Maim Motor Power | 7.5 kw |
| | Hydraulic cutting Power | 3 kw |
| Cutting system | Material Of Cutting | CR12 with quench treatment |
| | Hardness | HRC58-62 |
| | Tolerance | +-1.5mm |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase Also can satisfy Customer’s require |
| | Control System | PLC with touch screen |
| | Weight | About 3.5 tons |
| | Way Of Drive | 1 inch single chain |
Machine List:
| 3 ton manual de-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting device | 1 set |
| PLC Control box | 1 set |
| Hydraulic station | 1 set |
| 4m out table | 1 set |
| Safety cover | 1 set |

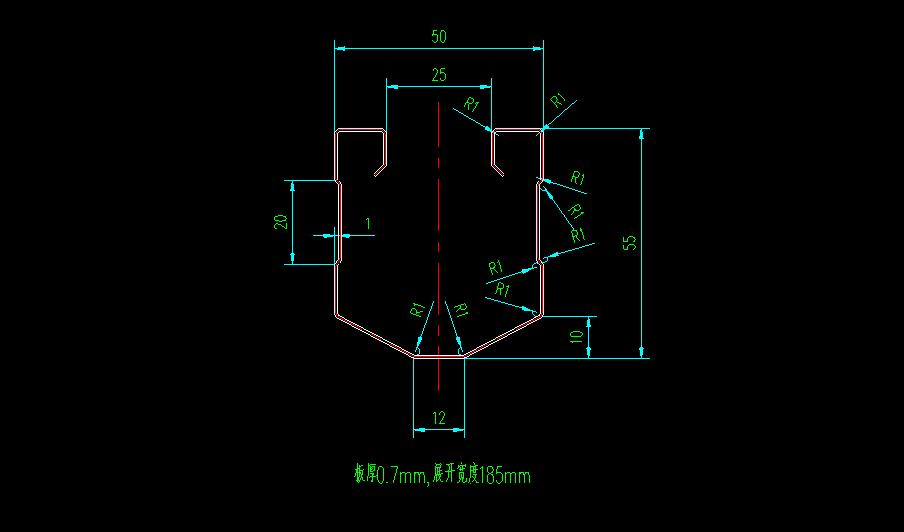

Profile Drawing:
Application:
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
