2.0mm U Post Roll Forming Machine Galvanized Steel With Slotted Holes

Brand Name : Sussman

Model Number : SM-PM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Processing thickness : 1.0-2.0MM Galvanized steel G300Mpa

Forming stations : About 11 stations

Roller material : Gcr15 steel with quenching

Shaft diameter : 75mm

Main motor power : 18.5kw

Drives method : Chain driven

Punching method : Hydraulic pre-punching

Speed : about 8-12m/min

Contact Now

G300Mpa Galvanized Steel 2.0mm Thickness U Post Profile Roll Forming Equipment With Slotted Holes





1. U Post Machine Technical Data



Item

Specification



Material

Type

PPGI steel coils& Galvanized steel coils

Thickness

0.4 mm-0.7mm

Yield strength

G235Mpa

Roller material

High grade Gcr15 forged steel, with digital-controlled procession

Forming speed

Max. About 20m/min. (excluding the cutting time)

Speed adjusting mode

AC Frequency

Cutting mode

Hydraulic cutting

Cutter material

Cr12 MOV with quenched treatment

Length measurement

Encoder

Control mode

Mitsubishi PLC and transducer (Japan)

Operating mode

Touch screen with touch screen

Main motor power

4KW

Hydraulic station motor power

2.2 KW



2. C post machine main components



Decoiler→Feeding material into machine →punching device→Roll forming machine →Hydraulic cutting →Finished Products


Machine name Quantity
Automatic decoiler 1 set
Servo feeding 1 set
Roll forming machine 1 set
Hydrualic punching device 1 set
Hydraulic cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package

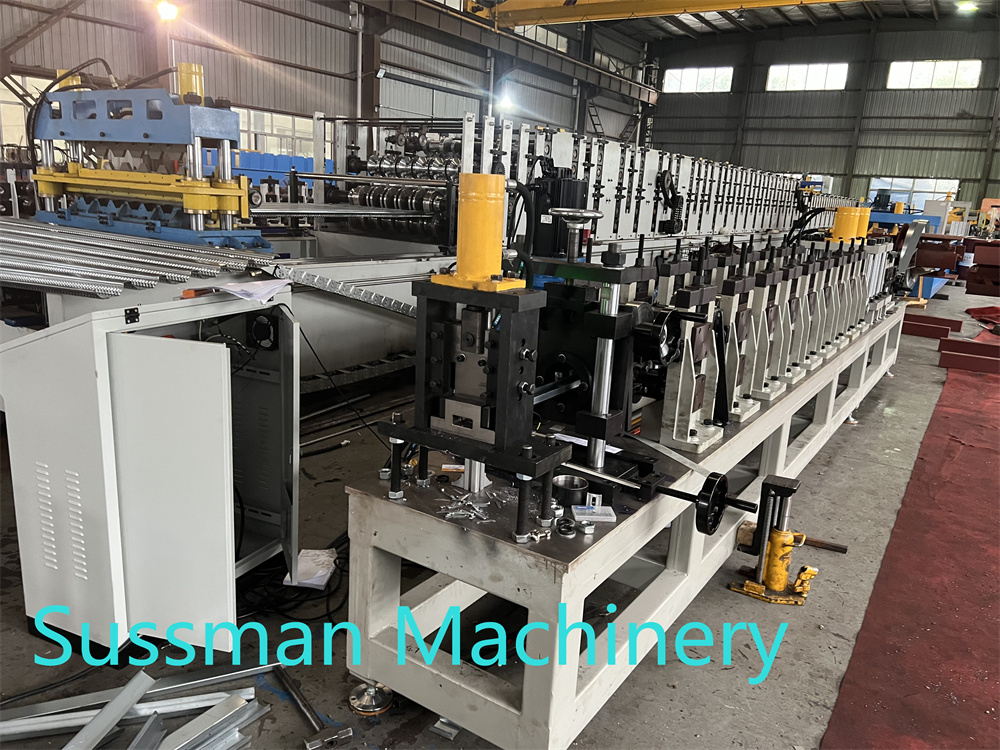

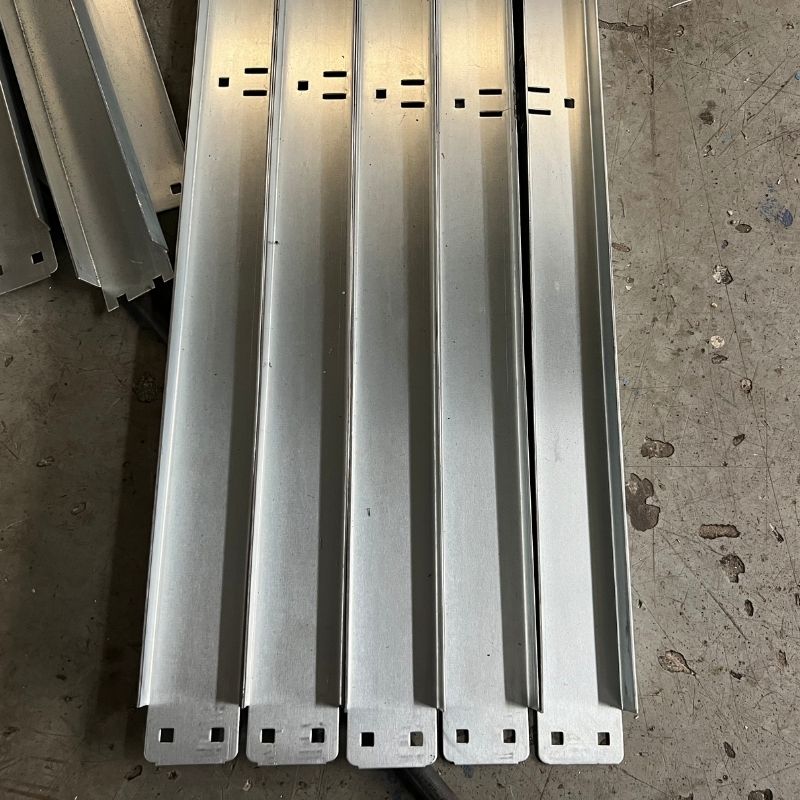

3. U Post Photo



2.0mm U Post Roll Forming Machine Galvanized Steel With Slotted Holes

2.0mm U Post Roll Forming Machine Galvanized Steel With Slotted Holes

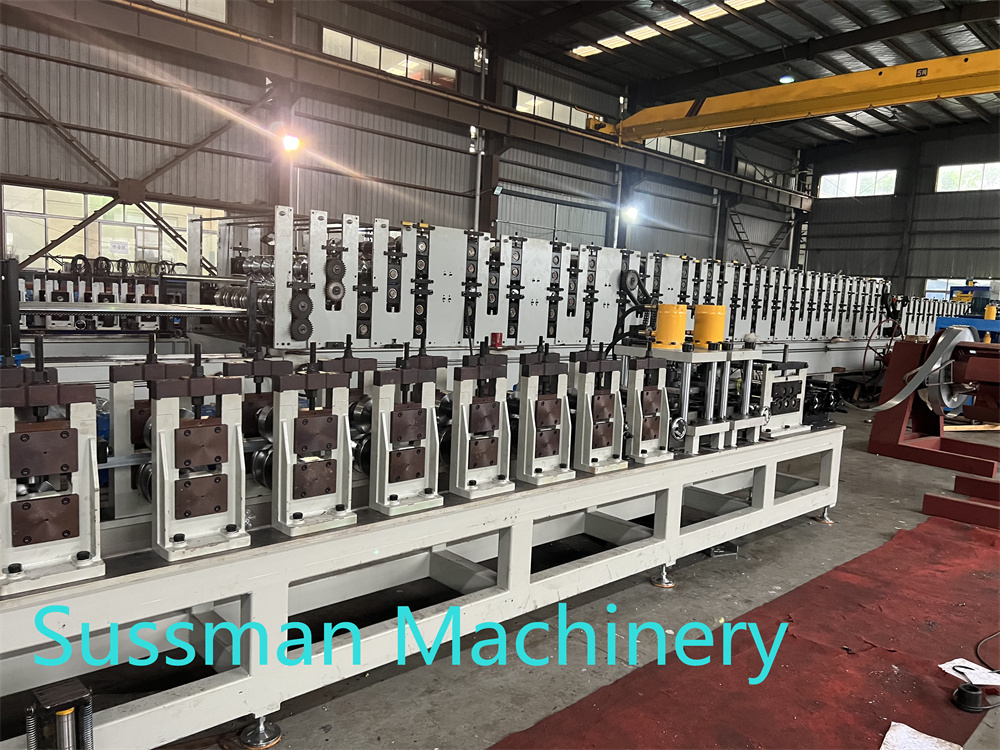

4. U Post Machine More details



The C post roll forming line includes automatic decoiler, hydraulic punching, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter for finished products.



This line adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically.



2.0mm U Post Roll Forming Machine Galvanized Steel With Slotted Holes

2.0mm U Post Roll Forming Machine Galvanized Steel With Slotted Holes
