Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

Name: Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Brand: SUSSMAN
Price: 1 USD

Buy cheap Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System product

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : CE

Place of Origin : WUXI CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 65-75 days after deposit

Packaging Details : standard packing

Type : Fire Damper Blade Roll Forming Machine

Thickness : 0.6-1.0mm

Rolling Speed : About 10m/min

Motor Power : 5.5 kw

cutting Power : 4 KW

Way Of Drive : 1.2 inch chain

Contact Now

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.6-1.0mm
	Un Coiler	3 tons manual
Forming system	Rolling Speed	About 10m/min
	Roller Stations	About 12 stations feeding
	Roller Material	Gcr15 coated with chrome
	Maim Motor Power	5.5 kw
	Motor cutting Power	4kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	415 V, 50HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC (Panasonic) as list in the note
	Weight	About 4 tons
	Way Of Drive	1.2 inch chain

Machine list

Machine list	3 ton passive de-coiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Out table	1 unit
	One 20 feet GP Container

Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting

Profile Drawing

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

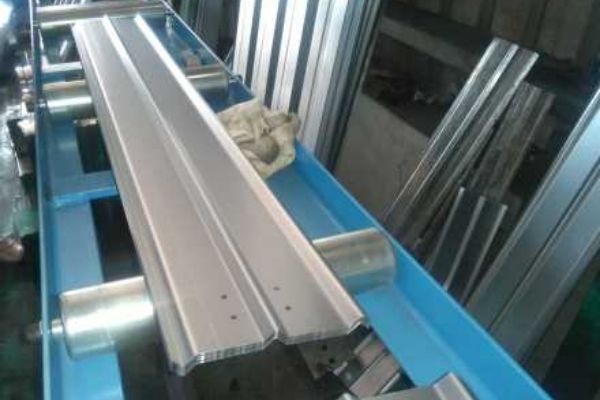

Samples

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

Application:

Notes:

1. The delivery term for the above equipment is FOB SHANGHAI

2. The whole producing plant has the CE certificate approved

3. We offer a warranty period of 1year for all of our machines.

4. Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
