4.0mm Cr15 Steel Container House Beam Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : SM-PM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 2.0-4.0MM

Forming speed : 8-12m/min

Forming stations : About 22 stations

Weight : 8T

Roller material : Gcr15 steel with quenching

Shaft diameter : 80mm

Drive method : Gearbox drive

Control system : PLC(imported Brand)

Contact Now

2.0-4.0 mm Gearbox Drive GCr15 Steel Container House Top Beam Bottom Beam Roll Forming Machine





Technical parameter





No. Item Specification
1 Decoiler 5T Manual decoiler
2 Mill bed material 450 H steel welding
3 Feeding platform type Side roller type
4 Transmission method Gearbox drive
5 Side wall thickness 20mm
6 Shaft diameter 95mm diameter with solid shaft
7 Main motor power 2*18.5kw
8 Machine speed 8-10m/min
9 Forming stations 22 stations
10 Shaft material GCR 15 with heat treatment
11 Cutting blade material CR12
12 Pump station power 5.5 kw gear pump
13 Raw material Thickness 4mm
14 Length sizing accuracy +/- 2mm
15 lacing hole mold One set









Main Components


Machine name Quantity
5T passive uncoiler 1 set
Main roll forming system 1 set
Hydraulic stop cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package
Safety cover

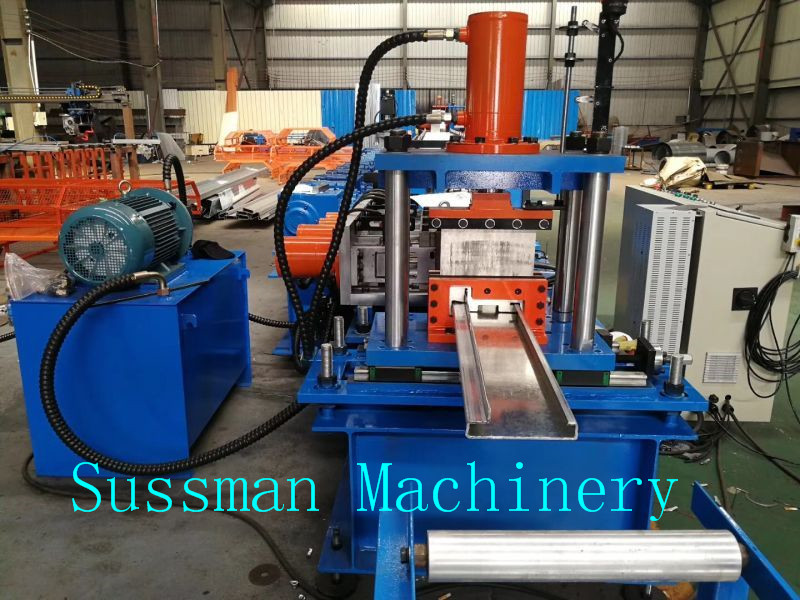

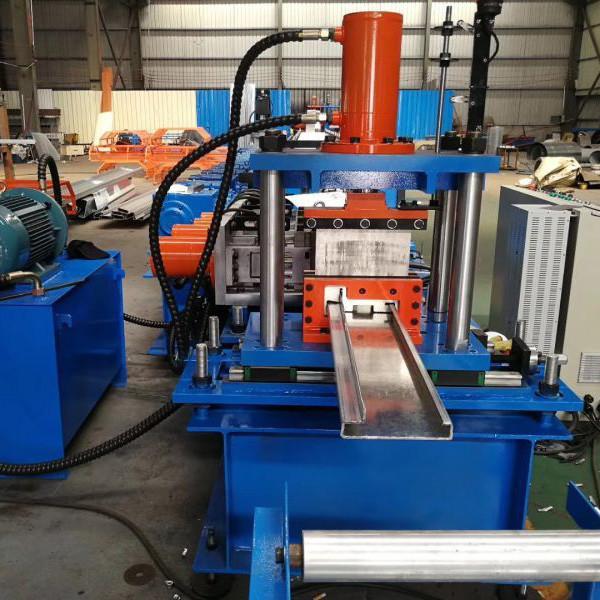

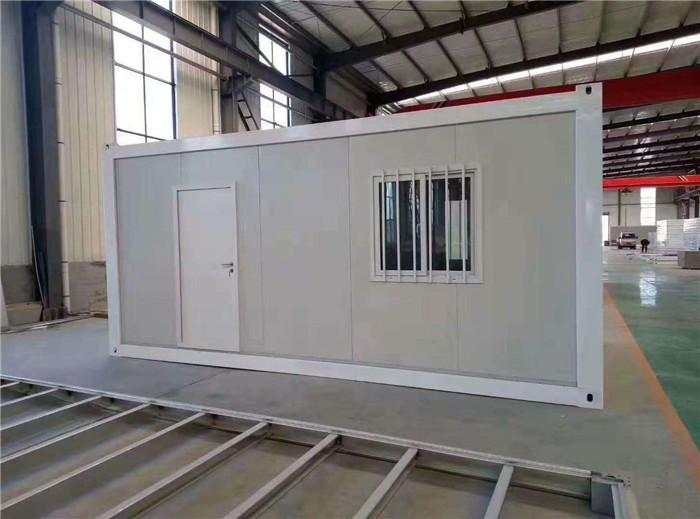

Container House Machine Photo

4.0mm Cr15 Steel Container House Beam Roll Forming Machine

4.0mm Cr15 Steel Container House Beam Roll Forming Machine
