1.5 Inches B Type Deck Floor Roll Forming Machine with Embossing Strengthen Patterns
This machine is the high speed B deck floor roll forming machine, the working speed is 0-30 meters/minute with gearbox drive.
The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck.
Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution. The advantages of the metal deck roll forming machines are a high wave, high strength, high automation and low cost.
* "B" deck is generally known as "wide rib" deck
* The most common deck profile in the industry and by far the most widely used
* Comes in 36” coverage
Floor Deck Making Machine Technical Parameter
| Item NO |
Description
| UnitType | RF-DF |
| 1 | Steel Thickness | mm | 0.8-1.5mm |
| 2 | Forming Speed | m/min | 0-30m/min |
| 3 | Roller stands | stand | 33 |
| 4 | Roller Material | | Gcr15 chromed
HRC55-60 |
| 5 | Shaft diameter | | Ф90mm |
| 6 | Main Motor Power | kw | 11*2kw |
| 7 | Hydraulic cutting Power | kw | 5.5 |
| 8 | Hydraulic pressure | Mpa | 12 |
| 9 | Power Supply | | 220V, 60HZ,3 phase |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting | | Cr12mov |
| 12 | Control system | | PLC with touch screen |
| 13 | DRIVE system | | Gearbox |
Machine List
| No | Name | quantity |
| 1 | 5 ton passive de-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | PLC system | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Out tables | 2 units |
Working Flow of Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

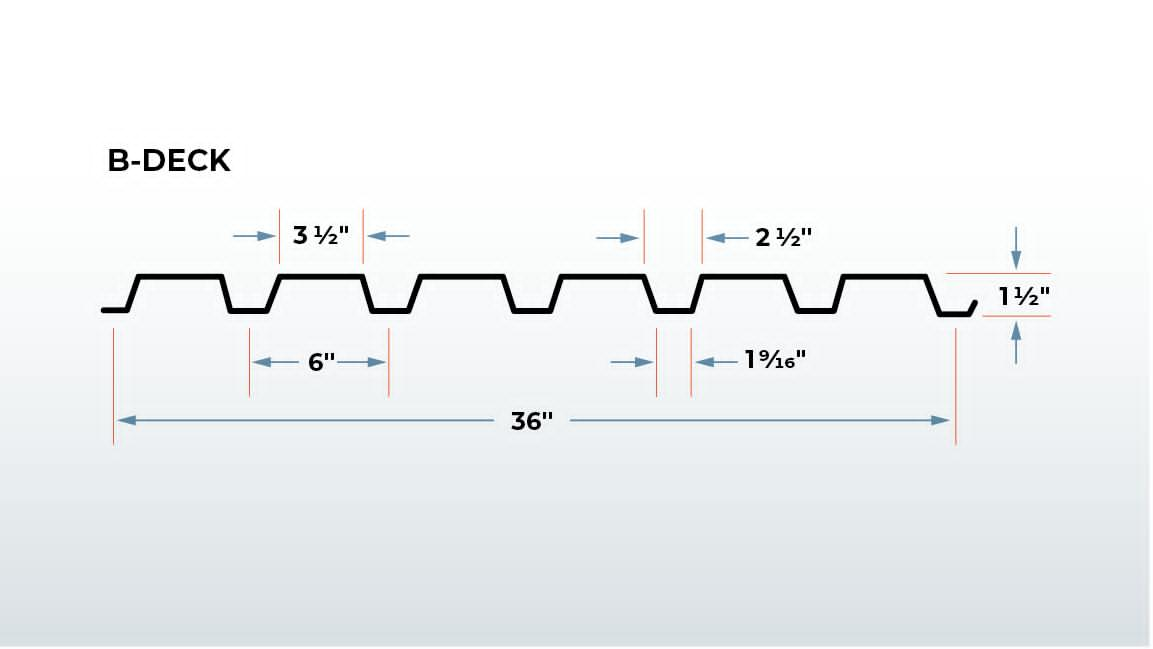

Standard Profile Drawing of product
Machine Photo
Application:
Loading Pictures
Advantage
- "B" deck is generally known as "wide rib" deck
- The most common deck profile in the industry and by far the most widely used
- Comes in 36” coverage
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
