PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine

Name: PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons Roll Former Machine
Brand: SUSSMAN
Price: 1 USD

Buy cheap PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine product

Brand Name : SUSSMAN

Model Number : ST

Certification : CE, ISO, SGS

Place of Origin : Wuxi China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 50 Days

Packaging Details : Film and Steel

Raw material : gavalnized steel

Thickness : 0.27-1mm

Rolling speed : 0-15m/min

Driving : Chain

Main motor : 7.5KW

Stations : 13 Stations

Contact Now

PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons

Machine list	3 ton passive de-coiler	1 set
	Main roll forming machine	1 set
	Punching device	1 set
	Cutting device	2 sets
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Out table	2 units
	Safety cover	1 unit
	Total

PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine

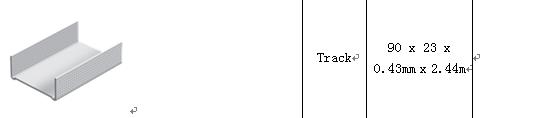

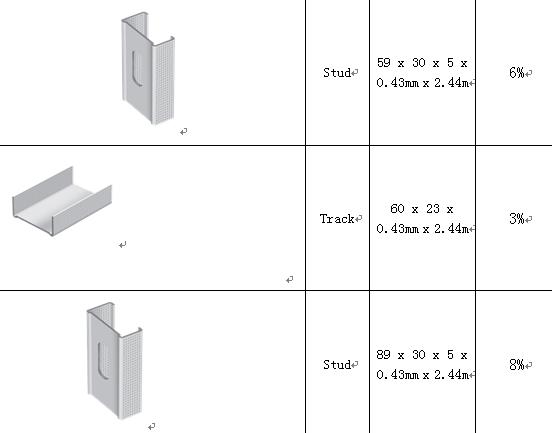

To produce the 4 profiles in one machine by changing spacers

Technical data

Technological process:

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine

The external of machine:

	Items	Specifications	Remarks
Material of coil	Material Thickness	0.27-1mm galvanized steel
De-coiler	Weight	3 ton manual
Forming system	Rolling Speed	0-15m/min
	Embossing	At sides
	Roller Stations	About 13 stations forming
	Roller Material	Cr40 Steel with quenching
	Shaft Material	45# Steel Diameter 60mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ,3 phase
Electrical control system	Control System	PLC Japanese Panasonic and Yaskawa Brand
	Weight	About 3 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 6500mm* Width 600mm* Height 800m

Spare parts

PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine

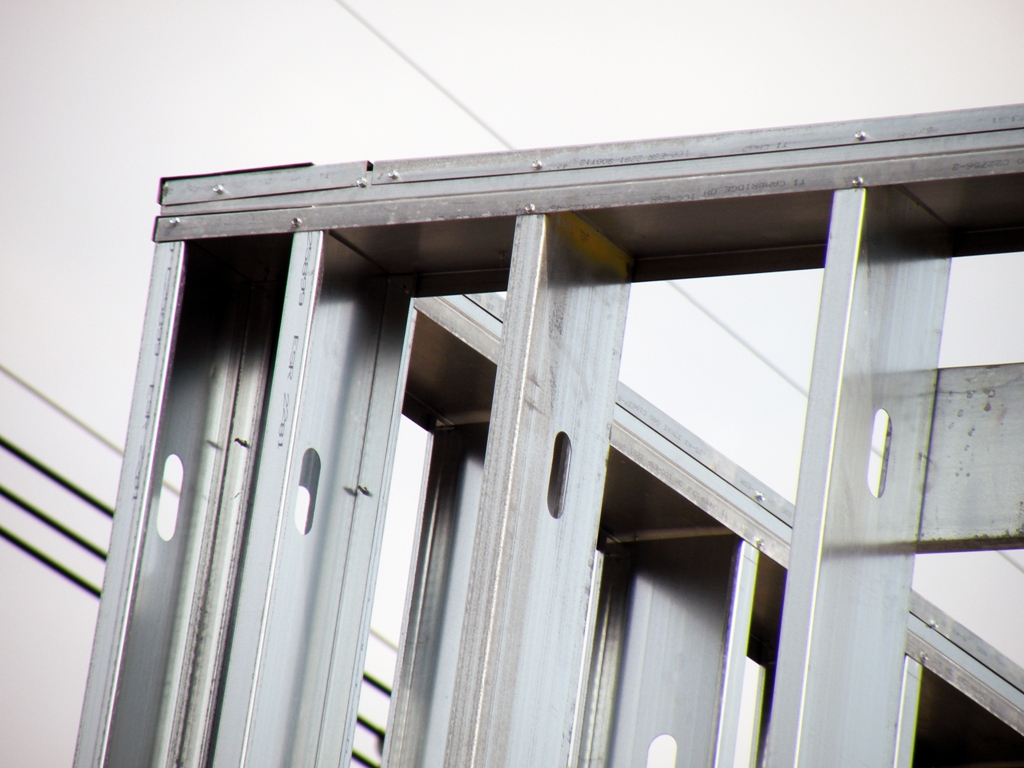

Application

Machine pictures

PLC Control Stud and Track Roll Forming Machine Total Weight 3 Tons , Roll Former Machine
