Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain

Name: Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain
Brand: Sussman
Price: 1 USD

Buy cheap Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain product

Brand Name : Sussman

Model Number : SM-RM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 0.4-1.2MM PPGI GI

Forming speed : 8-12m/min

Forming stations : About 12 stations

Cutting method : hydraulic stop cutting

Transmission : 1 inch chain drive

Weight : 3T

Roller material : Gcr15 steel with quenching

Shaft diameter : 60mm

Contact Now

80*35*22mm Omega Furring Channel Cold Roll Forming Machine With Single Chain

Technical parameter

Item	Technical data
Steel sheet thickness	0.4-1.2mm galvanized steel
Hydraulic power	4kw
Transmission way	1 inch chain
Capacity of Decoiler	3 Ton passive
Forming Speed	8-12m/min
Roller Groups	about 12 main rollers
Roller Material	45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter	60mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 KW
Dimension	About 5.50.81.200m
Weight	3 Tons

Applications

1. furring is commonly used for purlins in exterior applications
2. Used to level uneven surfaces
3. Furring channel is used on masonry walls and ceiling assemblies
4. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework

Main Components

Machine name	Quantity
3 tons passive Decoiler	1 set
Main roll forming machine	1 set
Hydraulic stop cutting device	1 set
4 meters finished tabels	1 ste
PLC control box system	1 set
Toll box	1 package

Furring Channel Working Flow

De-coiler—→feedingwithguide—→roll forming —→hydraulic stop cutting—→ out tables

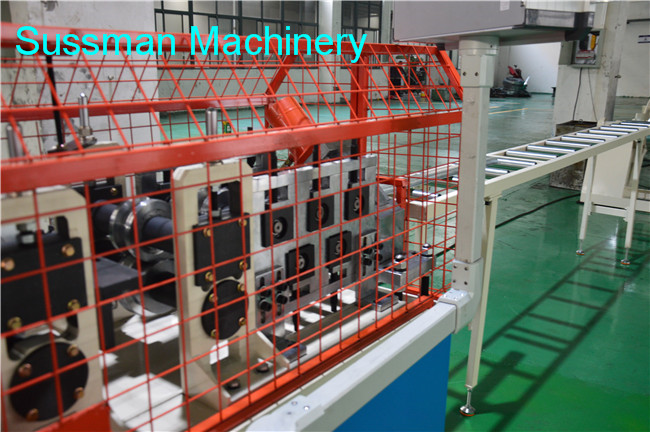

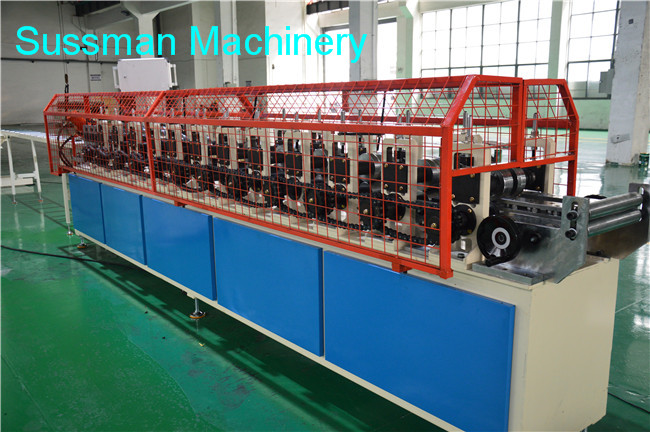

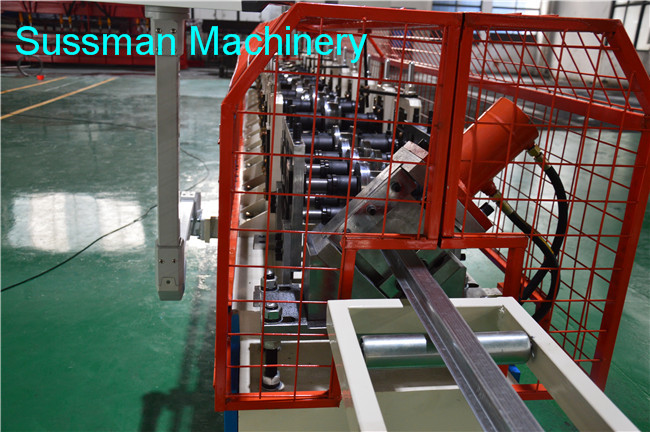

Machine Photo

Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain
