15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

Name: 1520 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission
Brand: Sussman
Price: 1 USD

Buy cheap 15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission product

Brand Name : Sussman

Model Number : SM-CP

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P

Supply Ability : 10 sets per month

Delivery Time : 75 days

Packaging Details : film and steel

Material thickness : 1.5-3.0mm

Roller Stations : 13 stations

Main Power : 11KW

Hydraulic stations power : 5.5KW

Power supplier : 380V, 50HZ,3 phase

Weight : 5 Tons

Forming Speed : 10-12M/MIN

Contact Now

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

Specification

1). Save Cost

2). High Efficency
3). European quality, work smoothly

C Purlin Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	1.5-3.0 mm
De-coiler	Weight	3 tons passive
Forming system	Rolling Speed	10-12 M/MIN
	Roller Stations	About 13 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Hydraulic cutting Power	5.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Control System	PLC with touch screen Japanese Panasonic and Yaskawa Brand
	Weight	About 4 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 7300mm* Width 800mm* Height 1000mm

Main Components

Name	Quantity
3 ton Passive de-coiler	1 set
Main roll forming machine	1 set
Feeding with guide	1 set
Control box	1 unit
Hydraulic station and punching	1 unit
Out tables	2 units

Product line

Uncoiling—Feeding—Rollforming—Cutting—Products collecting

Profile and Drawing Of Product

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

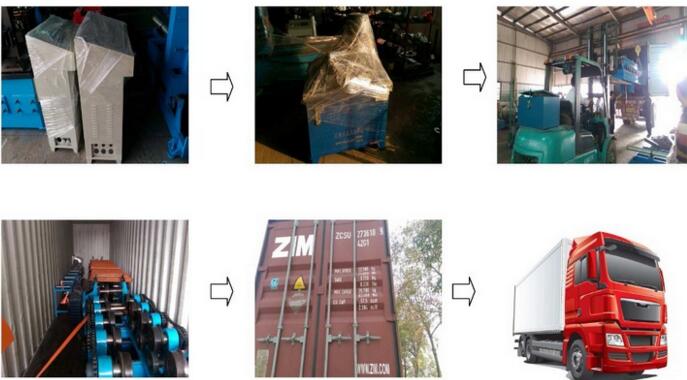

Loading pictures

All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film.
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film.

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

Our Service

> Warranty: 12 months.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.
> We will provide the technical support for the whole life of the equipment.
