Fully Electric Double Layer Automatic Roll Forming Equipment Chain Drive High Speed

Name: Fully Electric Double Layer Automatic Roll Forming Equipment Chain Drive High Speed
Brand: Suhang
Price: 1 USD

Buy cheap Fully Electric Double Layer Automatic Roll Forming Equipment Chain Drive High Speed product

Brand Name : Suhang

Model Number : RF-DL

Certification : CE,SGS,ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Payment Terms : LC/TT

Supply Ability : 20 sets/months

Delivery Time : 60days after deposit

Packaging Details : Film and steel

material thickness : 0.3-0.8mm

forming speed : 8-12meters / min

Roller stations : 18 stations

Roller material : GCr15

Contact Now

Fully Electric Automatic Double Layer Roll Forming Machine Chain Drive High Speed

Technical Parameter

1. Suitable Plate Material: thickness 0.3-0.8mm, Galvanized steel S235JR

2. Working Speed: 8-12meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.2 inches 20A double chain with longer shafts

7. Main Power with reducer: 7.5KW

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 4000mm*1350mmm*1200mm

17. Weight : about 12 tons

Main Components

Serial No.	Commodity & Description	Quantity
1	5T manual uncoiler	1 set
2	Leveing guiding	1 set
3	Servo feeding device	1 set
4	Main roll forming machine	1 set
5	Hydraulic station	1 set
6	Cutting device	1 set
7	Finished products tabel	1 set
8	PLC control system	1set
9	Out tables	1 set
10	Spare parts	1 set

Working Flow of Roll Forming Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

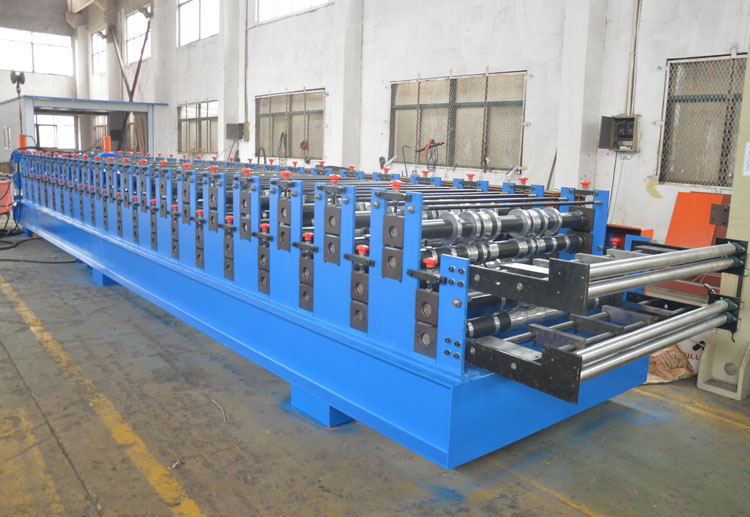

Fully Electric Double Layer Automatic Roll Forming Equipment Chain Drive High Speed

Profile of product

Photo gallery
