18 Roller Stations Double Layer Roll Forming Machine Steel Thickness 0.3 - 3.0 mm

Sussman Machinery(Wuxi) Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

18 Roller Stations Double Layer Roll Forming Machine Steel Thickness 0.3 - 3.0 mm

Brand Name : Sussman

Model Number : SS-DL

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets/ month

Delivery Time : 60 working days after accepting the advanced payment

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Power supply : 380V, 50Hz, 3Phase (customized)

Dirve system : 1.2 inc single chain drive

Control system : PLC system

Material : Galvanized steel

Hydraulic station power : 4KW

Forming station : Normally 18

Contact Now

Roof and wall panel double layer roll forming machine




 Technical Parameter


1. Plate Material:  Galvanized steel

2.Thickness:  0.3-3.0 MM

3. Forming Stations: Normally 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven System: Chain Driven 1.2 inches chain with longer shafts

7. Main Power with reducer: 7.5KW

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 4KW

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 4000mm*1350mmm*1200mm

17. Weight : about 12 tons




 Main Components




Serial No.



Commodity & Description


1

5T manual De-coiler


2

Leveing  guiding


3

Servo feeding device


4

Main roll forming machine


5

Hydraulic station


6

Cutting device


7

Finished products tabel


8

PLC control system


9

Out tables


10

Spare parts






Working Flow of Roll Forming Machine


  18 Roller Stations Double Layer Roll Forming Machine Steel Thickness 0.3 - 3.0 mm




Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

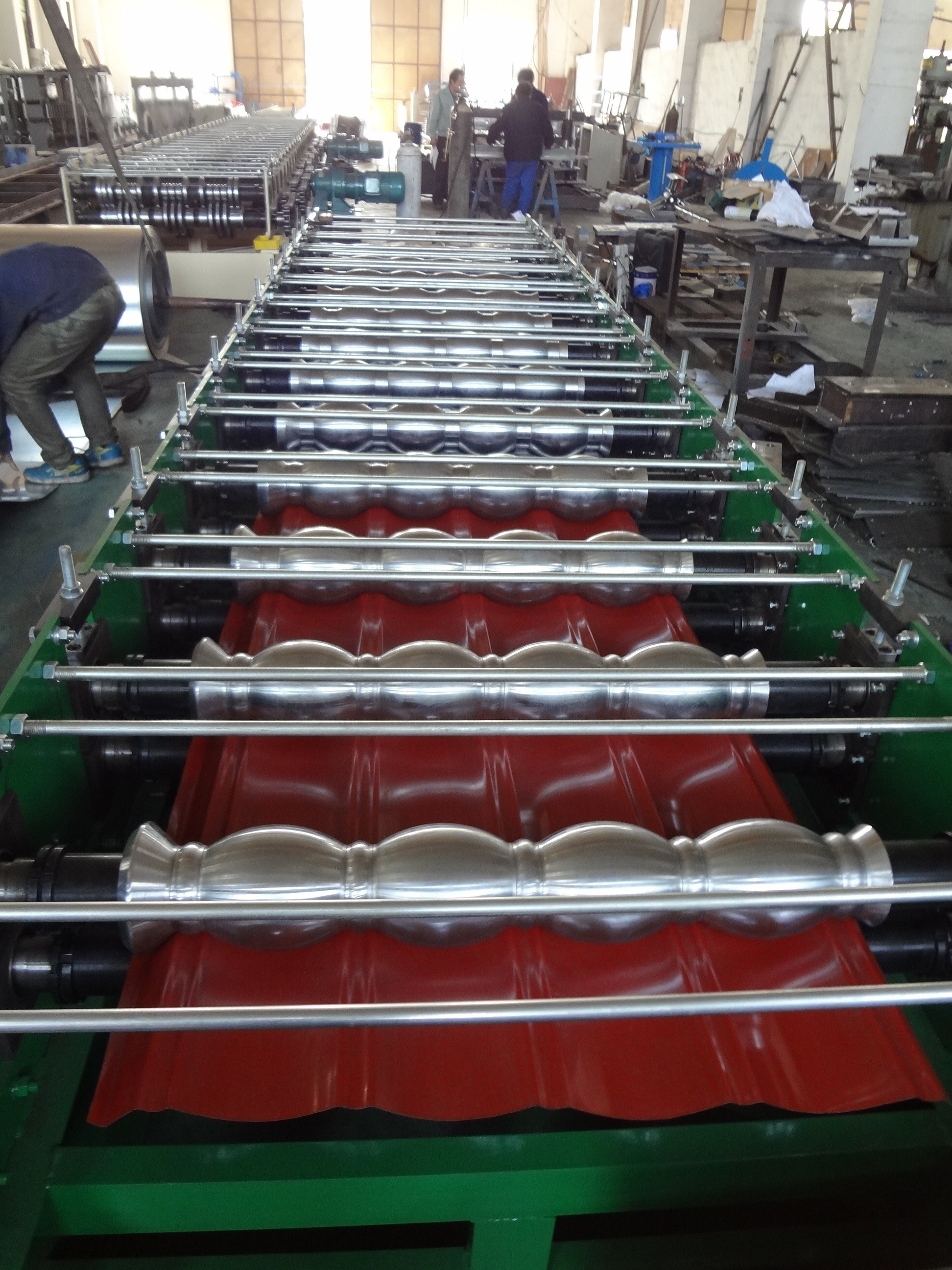

Photo gallery


18 Roller Stations Double Layer Roll Forming Machine Steel Thickness 0.3 - 3.0 mm

Loading picture


18 Roller Stations Double Layer Roll Forming Machine Steel Thickness 0.3 - 3.0 mm



After-sale Serive


-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 6 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 4 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
