Step Glazed Tile Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : SUSSMAN MACHINERY

Model Number : SH-GT

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : Shipped in 60 working days after payment

Packaging Details : Standard package with film, plastic and steel wire.

Material : Galvanized steel and colorcoated steel coil

Forming speed : 3-5m/ min

Roller station : 12 stations

Main motor power : 7.5Kw

Material thickness : 0.3-0.8mm

Power supply : 380V, 50Hz, 3Phase

Dirve system : Chain drive

Control system : PLC with touch screen

Machine Size : 8.5mx1.8mx1.4m

Contact Now

Glazed tile roll forming machine





Technical Parameter





Item NO.





Description





Offered specification



1 Product Line speed



4-5m/min(not include cutting )



2 Suitable material thickness



0.3-0.8mm



3 Raw material



galvanized coils yield strength≤G250MPa



4 Dimension



8000×1700×1500(mm) about



5 Levelling device



7 roller levelling including 3 top rollers and 4 bottom rollers



6 Roller stations



16 stations



7 Roller material



bearing steel, quenching treatment



8 Shaft diameter



Φ75mm ,material is 45# forge steel



9 Transmission



By chain 1 inch 20A double chain with longer shafts



10 Material of chain



45# forged steel with frequency quenching, 12A



11 Material of cutting



Cr12Mov with quench HRC58-62°



12 Main motor power



7.5kw



13 Motor power of hydraulic station



4kw



14 Hydraulic station pressure



12Mpa



15 Tolerance



6m+-1.5mm



16 Frame



H Beam











Main Components





Machine Component



Quantity
5 ton passive decoiler



1Set



Main roll forming machine



1Set



Hydraulic station



1Set



Cutting device

1

Set



Finished products tabel-



2Set



PLC control system



1Set



Spare part



1Set








Advantage for Roll Forming Machine



1. Reasonable Price



2. High Quality



3. 12 Months Warranty



4. More Than 10 Years Experience



5. Durable



6. Afrer-sales service







Working Flow



Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table



Step Glazed Tile Roll Forming Machine

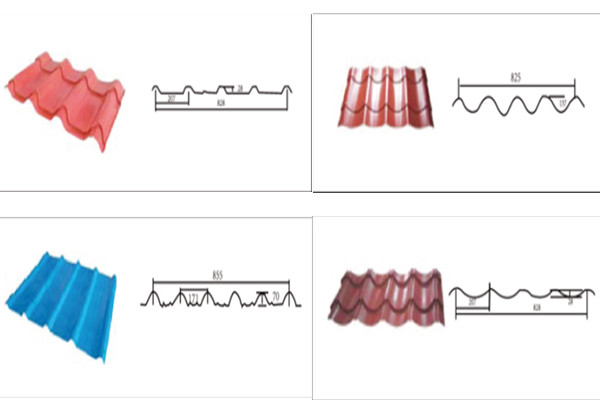

Profile drawing of product



Step Glazed Tile Roll Forming Machine







Step Glazed Tile Roll Forming Machine









Step Glazed Tile Roll Forming Machine





Step Glazed Tile Roll Forming Machine





Photo Gallery



Step Glazed Tile Roll Forming Machine





Step Glazed Tile Roll Forming Machine







Step Glazed Tile Roll Forming Machine
