0.3 - 0.8mm Colour Steel Double Layer Roll Forming Machine High Speed 15m/min Fully Automatic

Name: 03 08mm Colour Steel Double Layer Roll Forming Machine High Speed 15mmin Fully Automatic
Brand: Sussman
Price: 1 USD

Buy cheap 0.3 - 0.8mm Colour Steel Double Layer Roll Forming Machine High Speed 15m/min Fully Automatic product

Brand Name : Sussman

Model Number : DL

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 55 - 65 days

Packaging Details : Standard packing

Material : Galvanized steel and colorcoated steel coil

Forming speed : 12-15m/min

Roller station : 16 - 18 stations

Main motor power : 7.5Kw

Transmission : Single chain

Cutting way : hydraulic cutting

Material thickness : 0.4-0.8mm

Warrenty : 1 year

Contact Now

0.3 - 0.8mm Colour Steel Double Layer Roll Forming Machine High Speed 15m/min Fully Automatic

Advantage for

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Applications

Wall Panel, Roof Panel, Tile Roof Panel

Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2. Hydraulic power: 5.5Kw

3. Transmission way: single chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 ton passive decoiler

6. Forming Speed: 10-15m/min

7. Roller Groups: 16-18 stations main roller

8. Roller Material: 45# high grade steel, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 7.5 Kw

Main Components

Machine Component	Quantity
5 ton passive decoiler	1Set
Main roll forming machine	1Set
Hydraulic station	1Set
Cutting device	1Set
Finished products tabel-	2Set
PLC control system	1Set
Spare parts	1Set

Working Flow

Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table

0.3 - 0.8mm Colour Steel Double Layer Roll Forming Machine High Speed 15m/min Fully Automatic

Profiles of Wall and Roof Panel

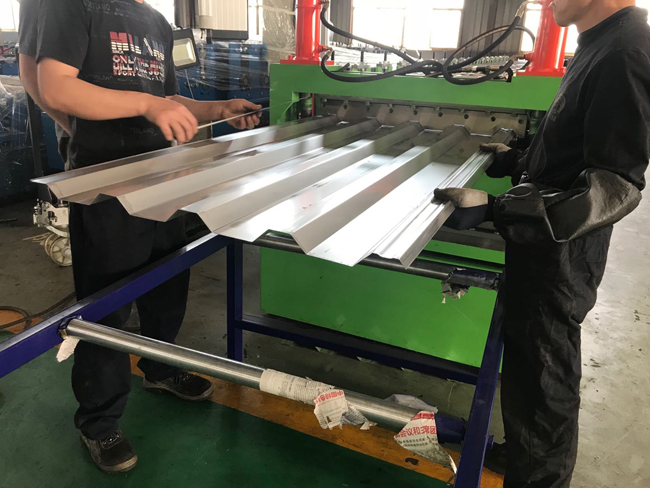

Machine photo

0.3 - 0.8mm Colour Steel Double Layer Roll Forming Machine High Speed 15m/min Fully Automatic
