Galvanized Steel Heavy Duty Storage Rack Upright Roll Forming Machine Quick Size Changeable Cassette

Galvanized Steel Heavy Duty Storage Rack Upright Roll Forming Machine Quick Size Changeable Cassette

Main Components

1. 3 ton manual decoiler--------------------------------------------------------- 1Set

2. Leveling device------------------------------------------------------------ ---- 1Set

3. Servo feeding device---------------------------------- -------------------- - 1Set

4. Press machine(including punching mould 6 sets--------------------- 1Set

5. Main roll forming machine---------------------------- ----------------------- 1Set

6. Cassette ------------------------------------------------------------------ 5 units

6. Hydraulic station--------------------------------------------------------------- 1Set

7. Cutting device------------------------------------------------------------- ----- 1Set

8. Finished products tabel------------------------------------------------------- 2Set

9. PLC control system--------------------------------------------------------------- 1Set

7. Spare parts------------------------------------------------------------------------ 1Set

Technical Parameter

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel

2. Working Speed: 12-15meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. The whole machine is controlled by Panasonic PLC

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 7500mm*800mmm*800mm

17. Weight : about 5 tons

Advantage for

Applications

Storage rack, storage shelf, Steel rack,steel shelf, rack beam

Working Flow

Decoiler ---- Levelling - Servo Feeding --- Punching--- Roll Forming ---- Straighting -----Cutting ---- Run out table

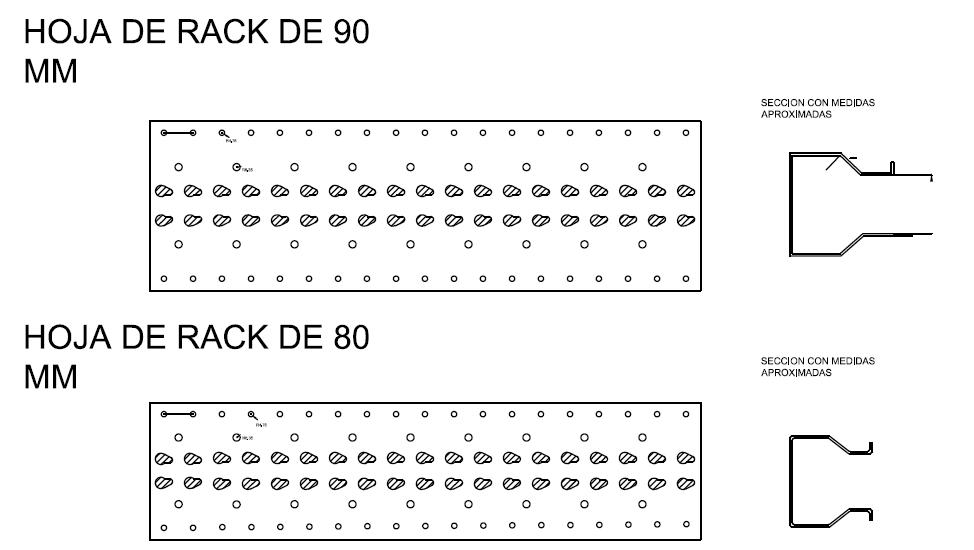

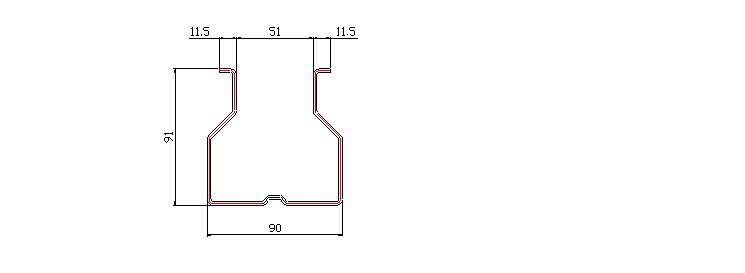

Profiles Of Rack Shelf

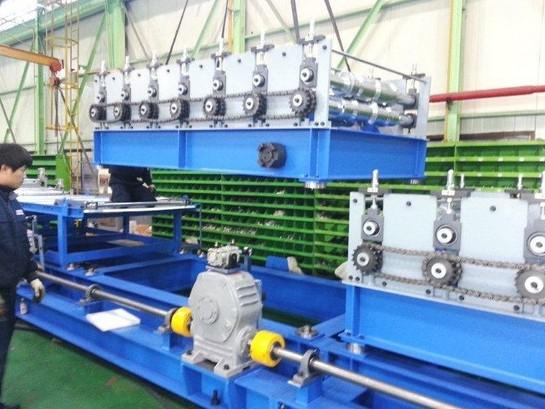

 Forming Machine Pictures

Loading Pics


racking roll forming machine

metal roll forming machine

Galvanized Steel Heavy Duty Storage Rack Upright Roll Forming Machine Quick Size Changeable Cassette Images
