Barrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof Machine

Brand Name : Sussman

Model Number : SM-RP

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60days after deposit

Packaging Details : Standard packing

Material Thickness : 0.15-0.4mm

Forming Speed : 12-15m/min

Main Motor Power : 7.5kw

Product name : Barrel type roll forming machine

Material width : 762/914/1000/1250 mm

Material : Galvanized color sheet

Dimension : 5700*2000*1500mm

Transmission : By gear

Contact Now

Barrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof Machine





The Barrel Corrugated Roofing Sheet Roll Forming Machine is widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.

You should put the raw material(steel plate) through the beach to manufacture and process,the material width is adjustable,it can guarantee that the products are neat, parallel and everything is uniformity.



Roof Panel Technical Parameter



Item NO


Description


Offered specification
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.15mm-0.4mm
1.3 Raw material Galvanized color sheet G550
1.6 dimension 5700*2000*1500mm
1.7 Effective width 762mm
1.8 Feeding Coil width 940mm
1.9 Roller stations

6 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ100mm
1.12 Transmission By gears
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Voltage 220v, 60hz, 3 phase
1.16 Control box Transducer




Roof Panel Main Components


     S.N

   Equipment name

    Quantity
      1.

    Feeding and leveling device

     1 set
      2.

    Main roll forming machine

     1 set
      3.

    Hydraulic station

     1 set
      4.

    Control system (including control box)

     1 set
      5.

    Spare parts

     1 package
















Application

Roof Panel, Wall Panel




Advantage for Roof Panel


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable6. Reliable



Working Flow of Roof Panel

Decoiler--Feeding and Leveling---Roll forming---Run out table

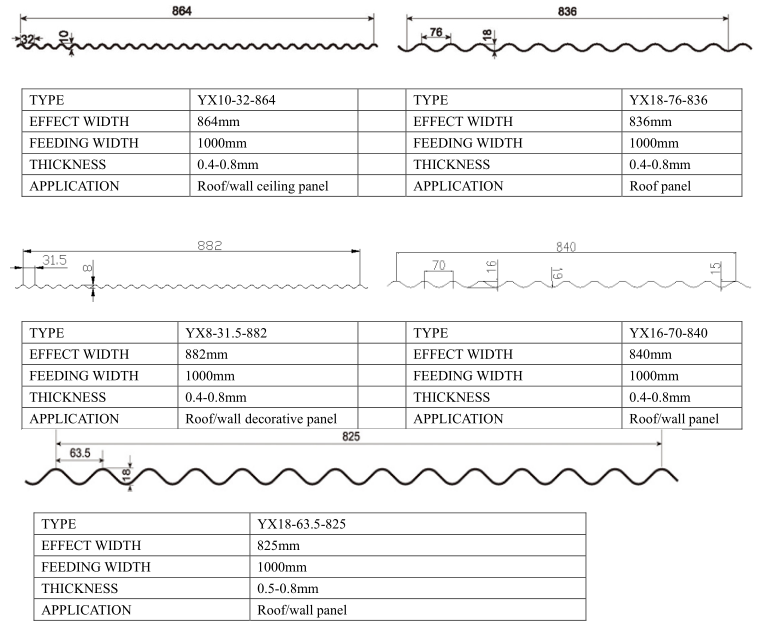

Profiles of Roof Panel

Barrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof Machine

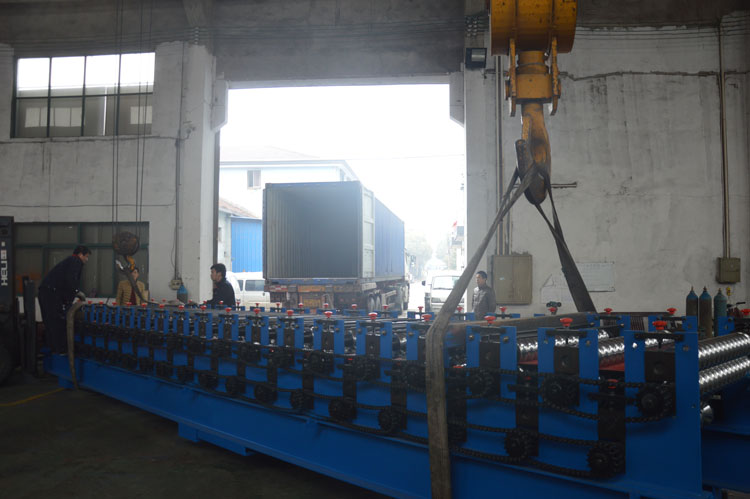

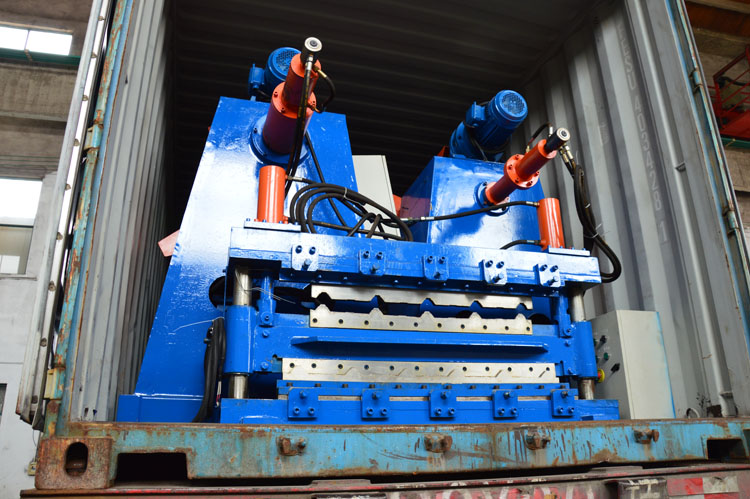

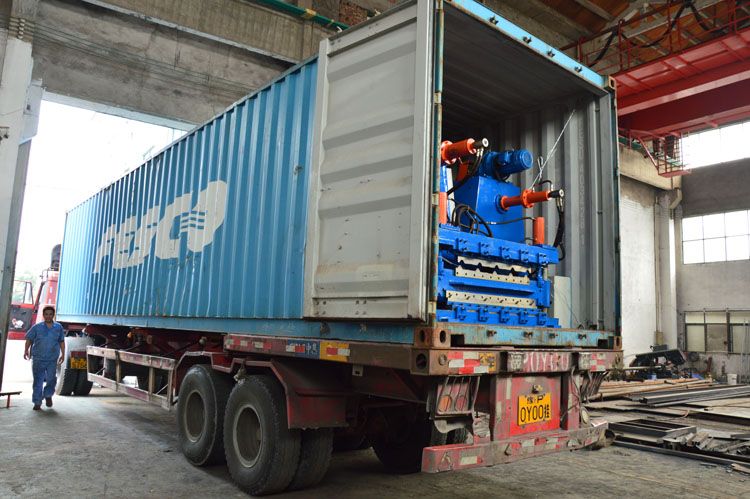

Loading Pics

Barrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof MachineBarrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof Machine

Barrel Drum Type Large Wave Galvanized Thin Sheet Corrugated Metal Roof Machine
