1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail

Name: 1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail
Brand: Sussman
Price: 1 USD

Buy cheap 1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail product

Brand Name : Sussman

Model Number : RF-CS

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 set per months

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material thickness : 1mm galvanized coils or black steel

Profile width : about 22mm

Profile height : about 5.5mm

Forming speed : 10-15m/min

Forming stations : 10 stations

Roller material : 45# steel

Main motor powr : 3Kw

Hydraulic cutting power : 3Kw

Cutting blade material : Cr12

Way of drive : 1 inch single chain

Machine size : 3500mmx 500mm x 800mm

Machine weight : 2.5Tons

Warranty : 12 months

Contact Now

1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail

Technical Parameter

	Items	Specification
Material of coil	material thickness	1mm galvanized coils or black steel
	Profile width	About 22mm
	Profile height	About 5.5mm
Forming system	Rolling Speed	10-15m/min
	Roller Stations	10 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	3 kw
	Hydraulic cutting power	3 kw
Cutting system	Cutting blade material	Cr12
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical Control System	Power supply	380V, 50HZ,3 phase
	conrol system	PLC Panasonic
	Machine weight	about 2.5Tons
	Way of drive	1 inch single chain
	Machine size	Length 3500mm* Width 500mm* Height 800m

Working Flow

feeding with guide—Rollforming——Cutting—Products collecting

Profile Drawing

1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail

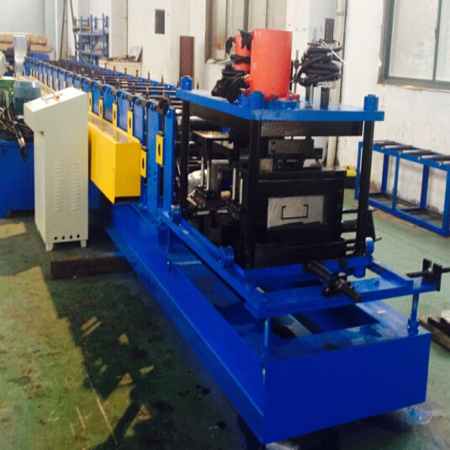

Machine Photo

1mm Thickness Steel C shape Stud Roll Forming Machine For Window Track Rail

Product
